THE GRYPHON Apex MONO Power Amplifier (Email or Call For Availability)

Sale price$289,800.00

Tax excluded. Shipping calculated at checkout

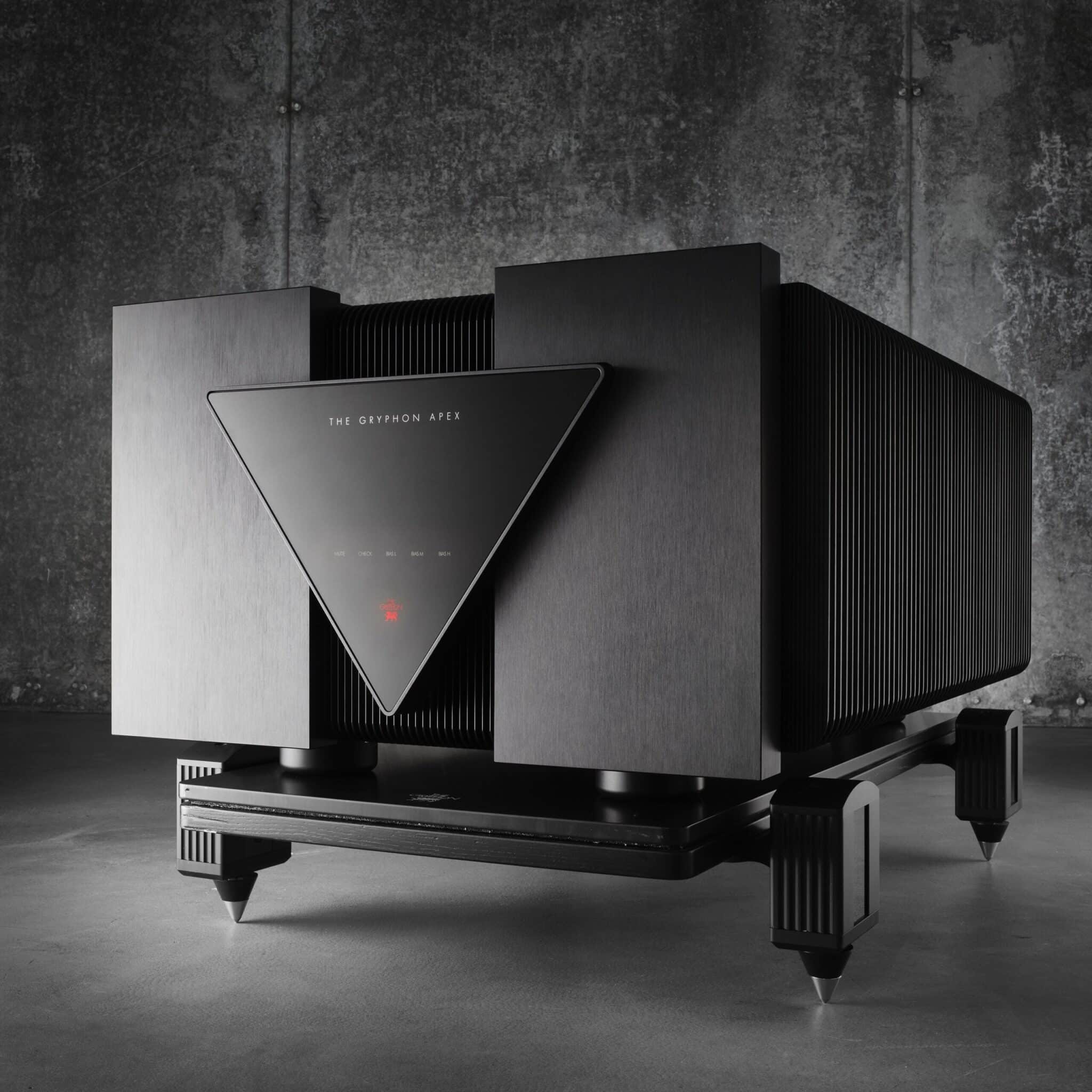

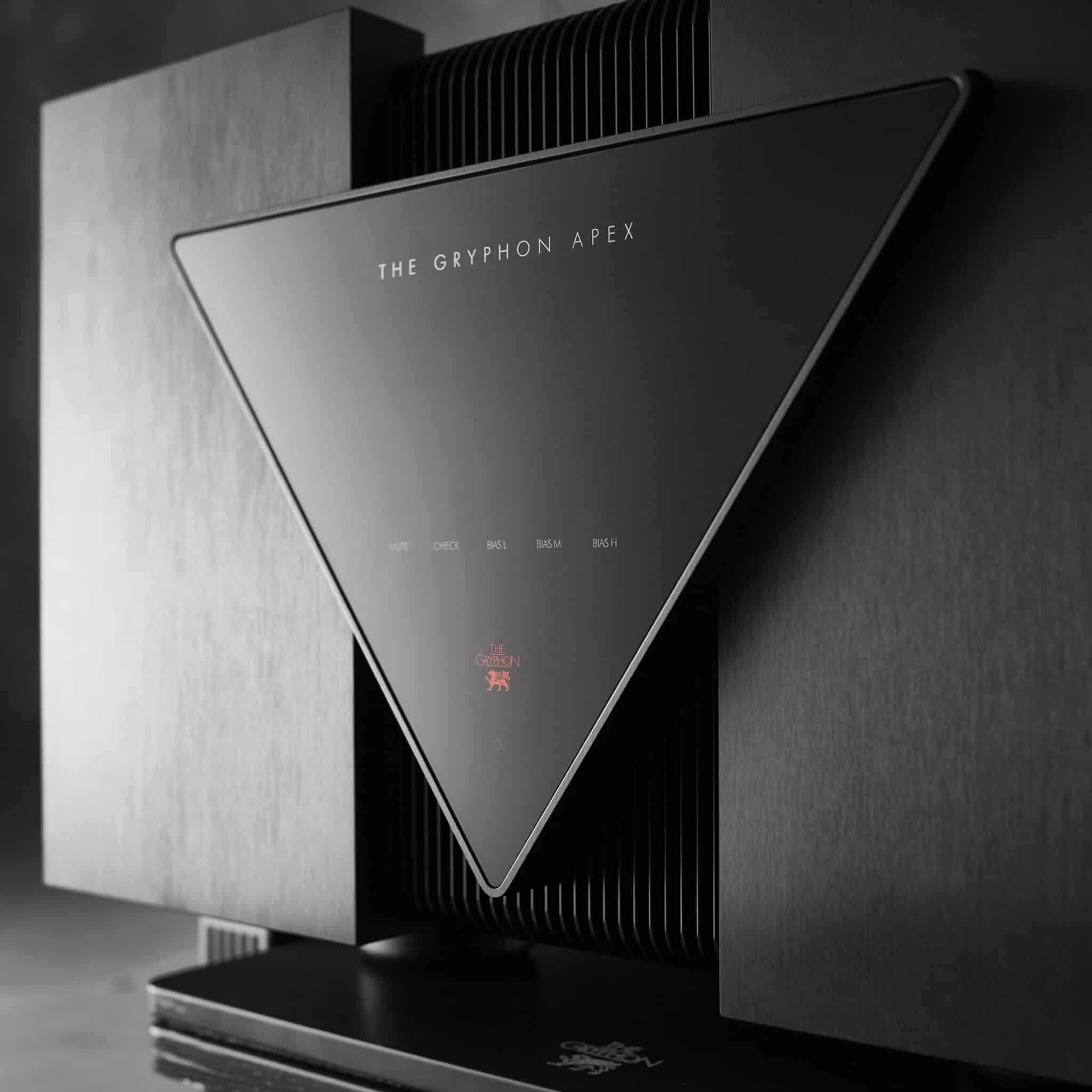

THE GRYPHON Apex Mono Stereo Power Amplifier

Immerse yourself in a new realm of audio excellence with the Gryphon Apex Power Amplifier. Launched in 2021, the Apex has revolutionized power amplification, earning accolades from critics and enthusiasts as the ultimate amplifier. Blending immense power with delicate precision, the Apex delivers a musical journey like no other.

Crafted with Gryphon's enduring dedication to audio perfection, the Apex Mono and Apex Stereo models elevate pure Class A power amplification to unprecedented levels. Engineered to drive any speaker with exacting clarity, the Apex ensures flawless tonal balance, preserving the artist's original intent.

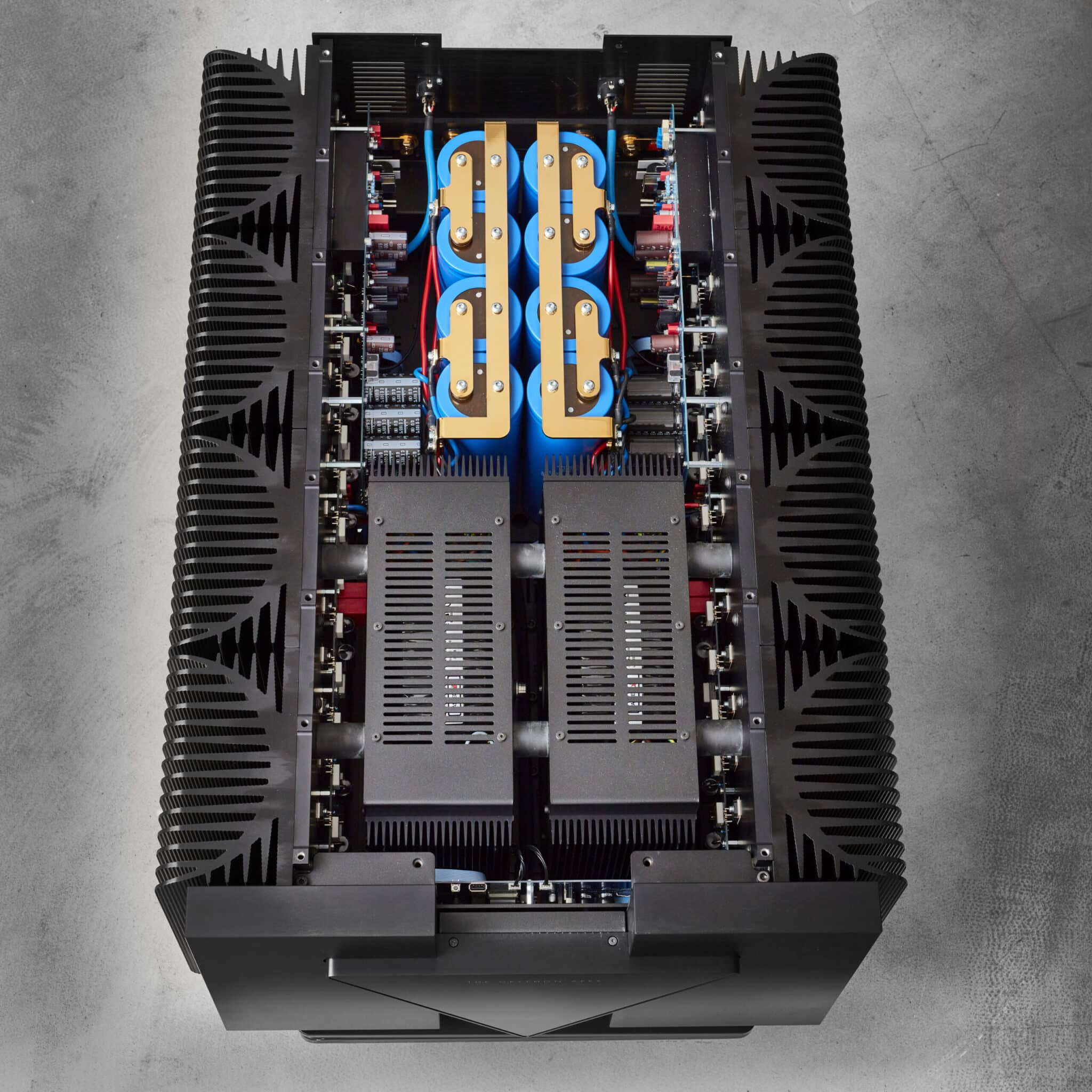

The Apex embodies years of research and innovation, boasting cutting-edge features that set it apart from the competition. Each Apex chassis houses 64 high-current bipolar output transistors, 1,040,000 μF capacitor banks, and two bespoke 2,000 VA toroidal transformers, all within a meticulously designed, constrained-layer-damped chassis. The result is an amplifier that delivers unmatched performance, size, and reliability.

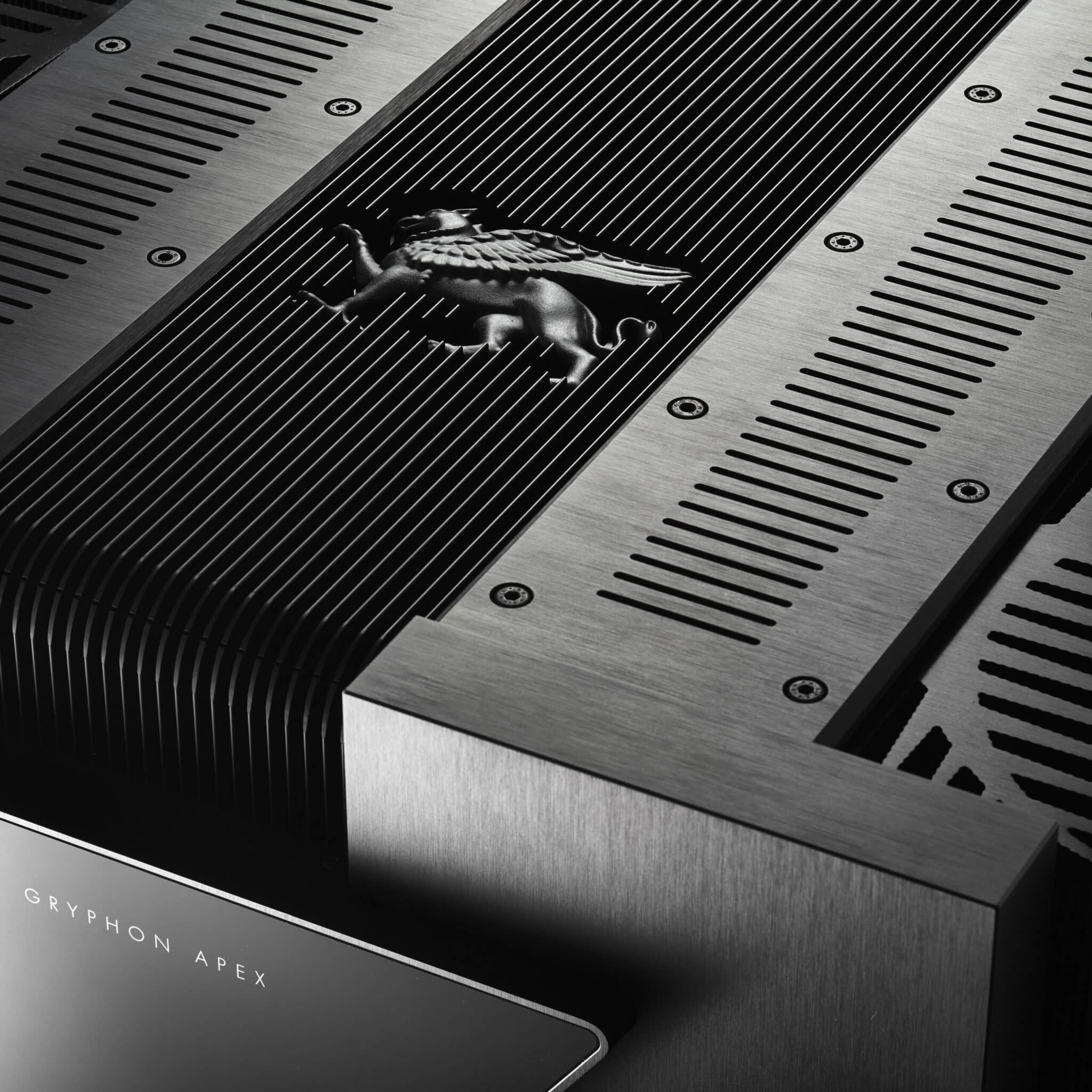

Gryphon's commitment to audio excellence extends to the design of the Apex's chassis, which is crafted from the finest materials and incorporates advanced damping technologies to optimize resonance control. The use of non-magnetic materials reduces electrical interference, while over-designed heat sinks ensure stable operation and longevity. The Gryphon speaker terminals, a new feature introduced with the Apex, offer both aesthetic beauty and functional versatility, accommodating various speaker connections.

The Apex is a testament to Gryphon's pursuit of audio perfection. It is an amplifier that sets a standard that is unlikely to be surpassed. Whether you are an audiophile or a music lover, the Gryphon Apex Power Amplifier will exceed your expectations and elevate your listening experience to new heights.

Specifications
  • Exterior design by Flemming E. Rasmussen
  • Electronics design by Tom Møller
  • Pure Dual Mono configuration
  • Zero global negative feedback
  • 64 very high current bipolar output transistors
  • 1.040.000μF (>1 Farad) capacitor bank
  • Extremely low capacitance Class A J-FET input buffer
  • Fully regulated low noise power supply for all voltage amplifying stages
  • DC servo coupling
  • Frequency-independent damping factor
  • Gryphon silver internal signal and power wiring
  • Premium massive Zn foil capacitors used for local power supply decoupling, with a loss factor ten-times lower than of metallized PP-film capacitors.
Weight & Dimensions

4-layer up to 105 um copper printed circuit boards
Two separate custom made 2000VA toroidal transformers
Individual decoupled left/right transformer castings

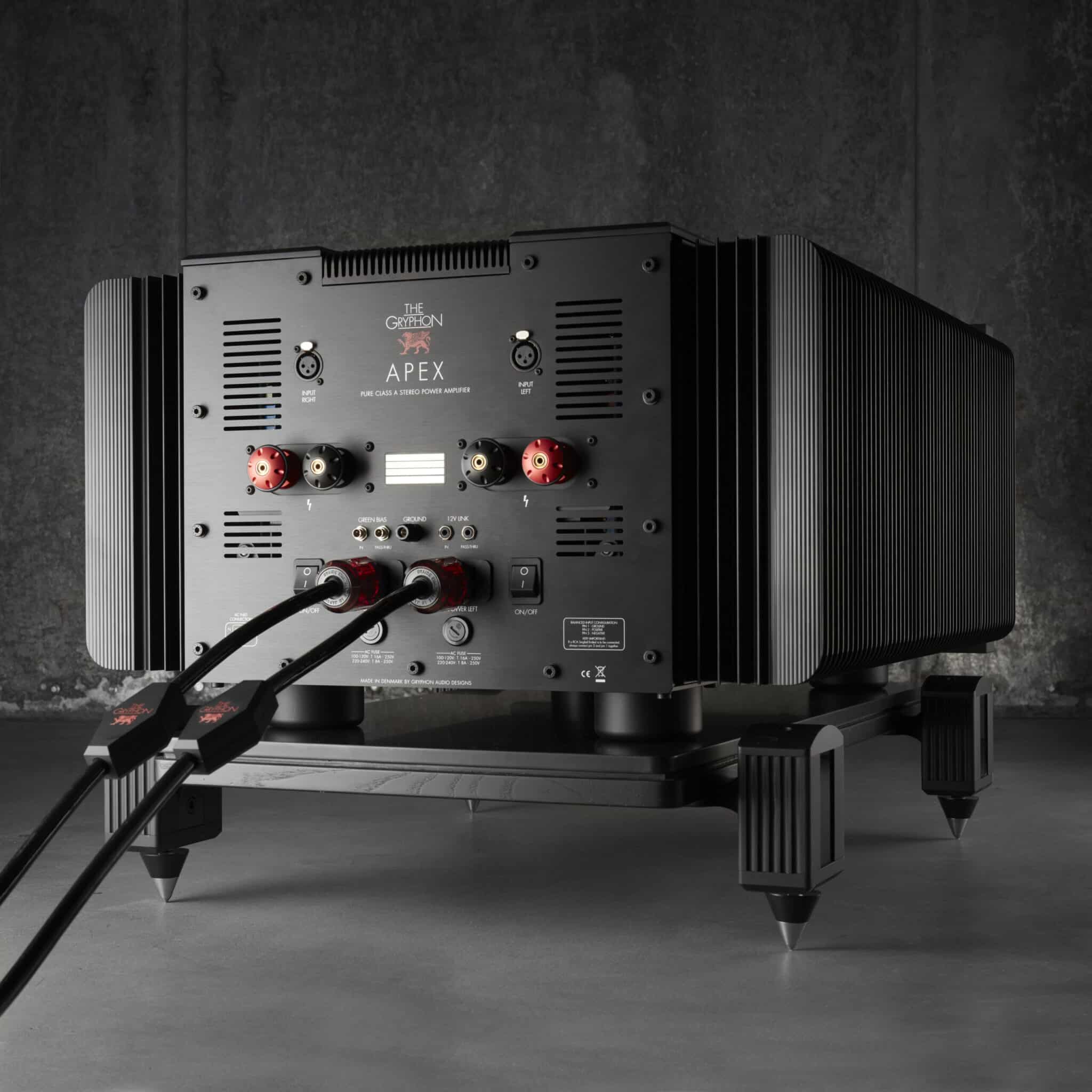

True balanced inputs with gold-plated Neutrik XLR input sockets
Separate linear power supply for both digital and analog circuits
Soft start turn-on prevents triggering of fuses or circuit breakers in the home electrical system
Gryphon gold-plated custom-built binding posts
AC polarity indicator
12V Link for remote power on and off
Automatic Green Bias setting via Green Bias control link or manual Low/Mid/High bias
Firmware upgradeable via USB stick
Non-intrusive protection system
Standby current consumption < 0,5W
Designed and manufactured in Denmark
