Synthesis Roma 69DC High Resolution Tube DAC

Sale price$3,995.00

Tax excluded. Shipping calculated at checkout

Style: Black

Style

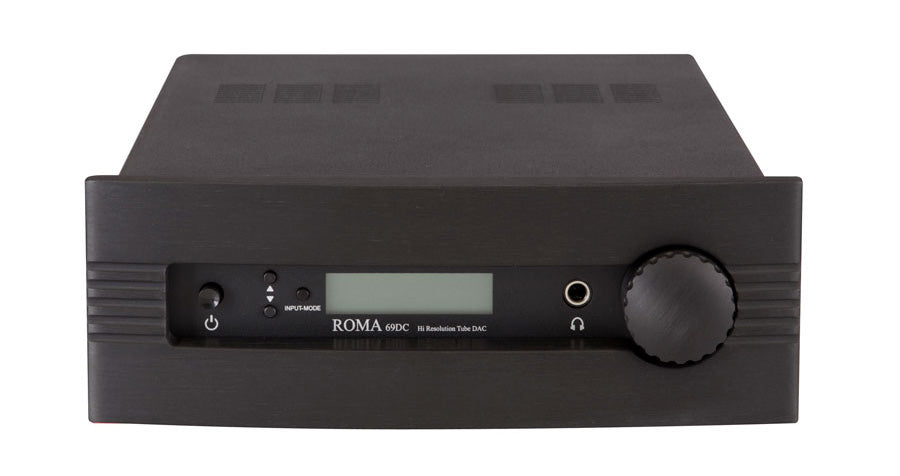

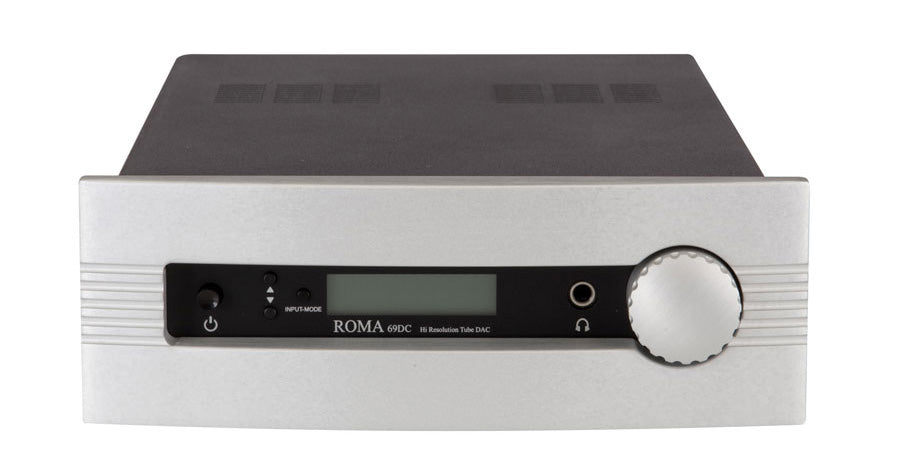

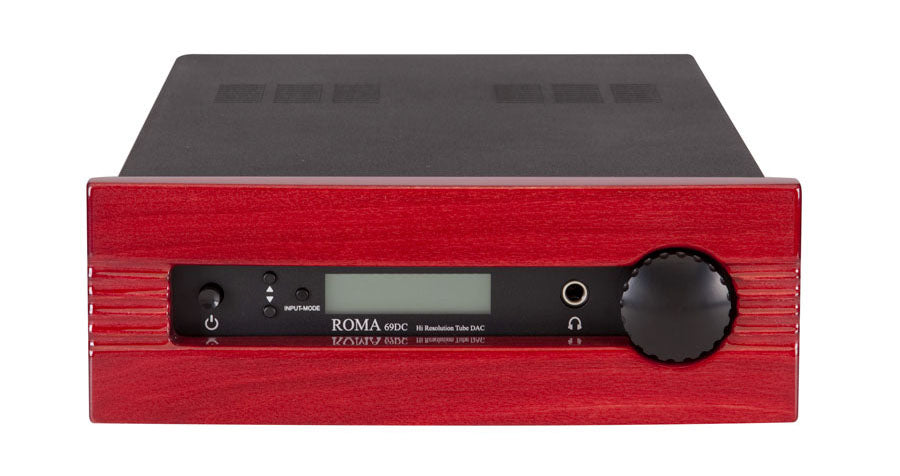

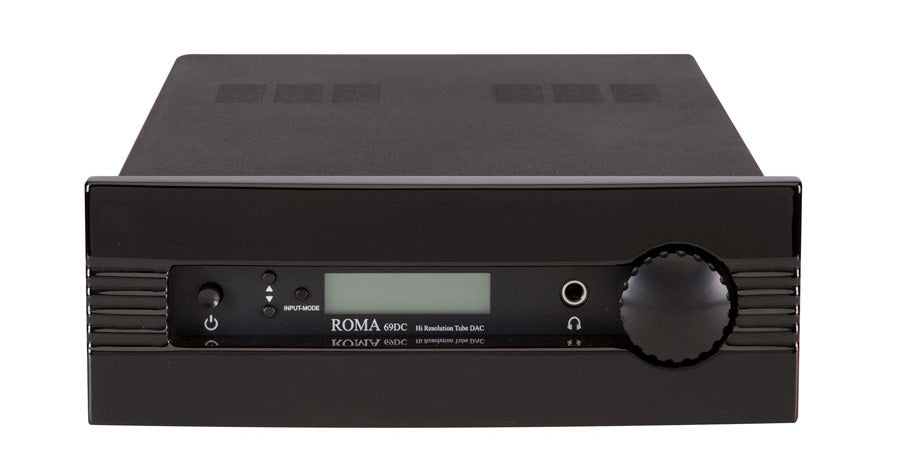

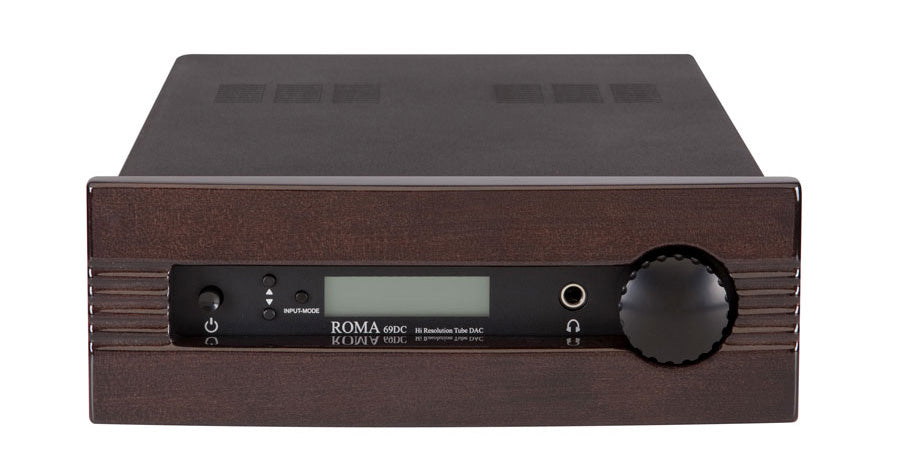

Synthesis Roma 69DC High Resolution Tube DAC


Introducing the Synthesis ROMA69DC Digital to Analogue Converter

Get ready for an unparalleled audio experience with the upcoming release of the Synthesis ROMA69DC Digital to Analogue Converter. This cutting-edge DAC is set to redefine the way you perceive sound.

The ROMA69DC boasts an impressive array of features, including USB "B" type, DSD 5.6MHz, and optical inputs. With 32-bit resolution, it creates a mesmerizing soundstage and delivers stunning sound reproduction that will leave you captivated.

But what sets this DAC apart is its use of the ECC88/6DJ8 on the output stage, acting as a differential amplifier to perfectly match the DAC's output (Asahi Kasei AK4495S). This results in an exceptionally low output impedance and an incredibly wide bandwidth.

The attention to detail extends to the headphone output, where a high-fidelity driver ensures an exceptional, natural sound performance, and a perfectly balanced sound stage.

To further enhance your audio experience, the ROMA69DC features an oversized shielded power transformer, reducing interference. High-grade metalized polypropylene capacitors are employed to control the audio signal circuits, and all vital components are powered by a multi-stage fully regulated power supply.

Experience audio like never before with the Synthesis ROMA69DC Digital to Analogue Converter—a true marvel of engineering and a testament to our commitment to delivering the best in sound quality.

Weight & Dimensions


DIGITAL INPUTS

1 USB “B” type Windows/Mac/iOs/Android
2 Toslink Optical
2 S/PDIF Coaxial

D/A CONVERTER

AK44995SEQ
32bit 768KHz

MAX RESOLUTION

24 bit 192KHz (OPT and COAX)
32 bit 384KHz (USB)
DSD fup to 5,6MHz (USB)

OUTPUT STAGE (EACH CHANNEL)

1 x 6922/ECC88

HEADPHONE IMPEDANCE

> 16ohm, high fidelity driver

HEADPHONE POWER OUT

> 90mW (600ohm)
> 300mW (32ohm)

OUTPUT LEVEL

1,5V RMS

FREQUENCY RESPONSE

from 20Hz to 20KHz 0dB

S/N RATIO

> 95dB, A weighted

DIMENSIONS (W,D,H)

260x380x95mm

WEIGHT

5Kg

LINE POWER

117 / 230 / 245 Vac, 50/60 Hz (see rear label)

FUSE

See rear label

POWER CONSUMPTION

40W max

PC REQUIREMENTS

1GHz processor, 512MB RAM, USB 2.0 port
