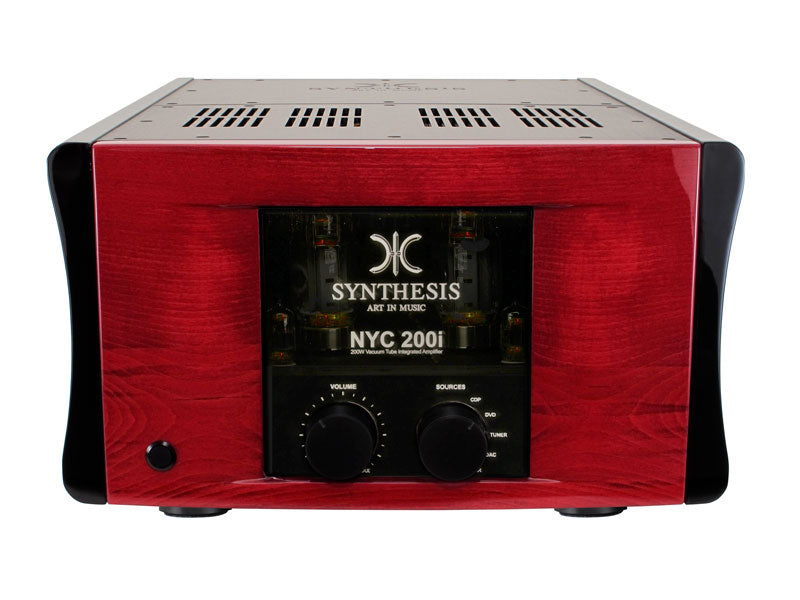

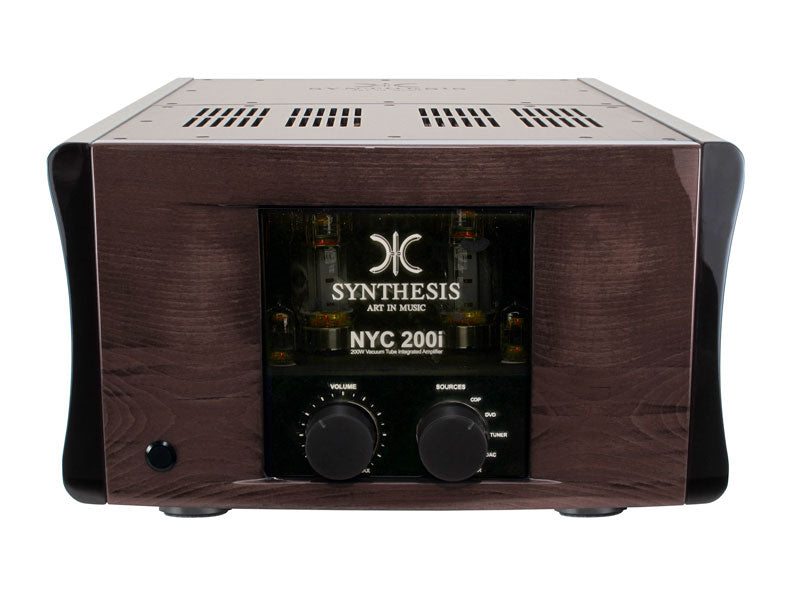

Synthesis Metropolis NYC200i 230W Dual Mono Integrated Amplifier

Aluminium Knobs
Two 45mm CNC machined control knobs with integral soft light and laser etched indication segments.
DC Powered tube heater
All tubes, except KT120, have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum.
Output transformer
The Output transformer uses a double C-core Hi-Grade Iron-Silicon for superb frequency reproduction and bandwidth. With this newly designed custom output transformer unique to the NYC200i we are able to achieving highly delicate and precise sound reproduction faithful to the original recording.
Mechanical chassis construction
The power supply and output transformers are held by an extremely rigid "H" structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
Remote control
A superb wooden handmade case with soft button design, perfectly matching the aesthetics for the "Metropolis" series.
Feet
Four CNC machined aluminium feet with an insert of natural rubber. The depth and form of these rubber feet is calculated to minimize the vibration of the amplifier in isolation from its surroundings.
Fan
A 120mm fan provides a speed between 500 to 700 rpm which is controlled via the supplied adapter. This ULN (Ultra-Low-Noise) unit is tailor made for the serious enthusiast who demands super-slow running speeds and the utmost silence of operation.
Bias control
The factory set fine bias control is microprocessor controlled to maintain the optimum settings. If required this can be adjusted without the use of an external voltmeter by use of an internally fitted display device.
Dual mono Circuitry
A completely dual mono design minimises the crosstalk across channels. Power transformers use hi-grade iron silicon M0 and separate supplies with hi-grade selected capacitors to produce extremely low ripple levels. Independent to the mains transformer, each channel has a separate power supply guaranteeing a large reservoir of energy to meet the demands of the amplifier circuit and to maintain excellent interference immunity between channels.
Binding posts
Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement.
Socket
Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement.
Components
Components for the NYC 200i have been selected with great care throughout. Only the best available components are considered and all must undergo an exhaustive analysis of their sonic influence prior to final selection.
Selected tubes
All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process and at the end of this, selects the perfect tubes which are matched for a perfect balance.

POWER STAGE (1 CH.)

4 X KT120

INPUT STAGE (1 CH.)

1 X 12AX7/ECC83

DRIVER STAGE (1 CH.)

1 X 12BH7

INPUT IMPEDANCE

50 KOhm

INPUT SENSITIVITY

400mV RMS

OUTPUT TAP

4/8 Ohm bi-wiring connection

CONFIGURATION

Push-Pull Ultra linear 20% tap

POWER OUTPUT (1 CH., THD < 1%)

230W RMS @ 4/8 Ohm

FREQUENCY RESPONSE

from 20Hz to 20KHz ± 0.5dB

DISTORTION

1% @ 1KHz (Max Power)

S/N RATIO

>90dB “A” weighted

INPUTS

4 line unbalanced (RCA)
1 line balanced (XLR)

OUTPUTS

Pre out (variable level)

BIAS SETTING

Manual adjustment by LED indicator
Independent for each power tube

DIMENSIONS (W,D,H)

470x620x260mm

WEIGHT

60Kg

LINE POWER

117, 230, 245 Vac 50/60 Hz (see rear label)

FUSE

See rear label

POWER CONSUMPTION

800W Max

REMOTE CONTROL

BODY

Anodized black aluminium

TRANSMISSION TYPE

Infrared

PROTOCOL

RC5

FUNCTIONS

Volume, mute

BATTERIES

2 x CR2032

WEIGHT

200g
