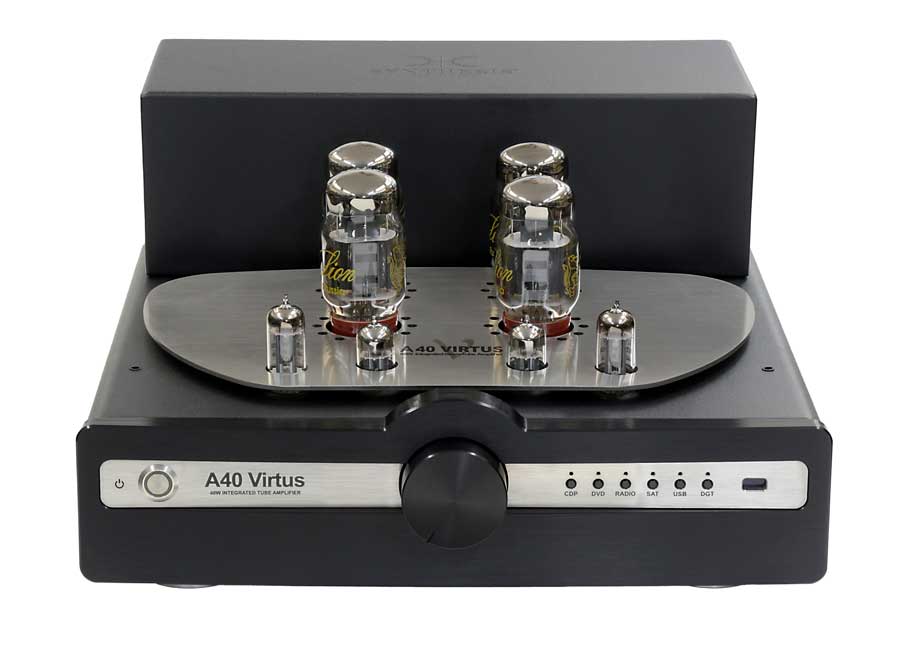

Synthesis Action A40Virtus 40W Integrated Stereo Tube Amplifier

USB & S/PDIF input
For the first time we include an onboard 24Bit 192KHz Wolfson DAC for a extraordinary listening experience.
DC Powered tube heater
Ali tubes, except KT66, have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum.
Output transformer
The Output transformer uses a Hi-Grade lron-Silicon for superb frequency reproduction & width. With this newly designed custom output transformer unique to the A40Virtus we are able to achieving a highly delicate & precise sound reproduction faithful to the originai recording.
Mechanical chassis construction
The power supply & output transformers are held by an extremely rigid "H" structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
Remote control
Featuring a superb CNC machined case it has a soft button design, perfectly matching the aesthetics for the "ACTION" series.
Feet
Four CNC machined aluminium feet with an insert of natural rubber. The depth & form of these rubber feet has been calculated to minimise vibrations of the amplifier in isolation from its surroundings.
Binding posts
Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement.
Sockets
Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement.
Components
Components for the A40Virtus have been selected with great care throughout. Only the best available components are considered & all must undergo an exhaustive analysis of their sonic influence prior to final selection.
Selected tubes
All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process & at the end of this, selects the perfect tubes which are then matched for a perfect balance.

POWER STAGE (1 CH.)

2 X KT66

INPUT STAGE (1 CH.)

1 X 12AX7/ECC83

DRIVER STAGE (1 CH.)

1 X 12BH7

INPUT IMPEDANCE

50KOhm
75 Ohm (S/PDIF)

INPUT SENSITIVITY

150mV RMS

OUTPUT TAP

6 Ohm

CONFIGURATION

Push-Pull Ultra linear 43% tap

POWER OUTPUT (1 CH., THD < 1%)

40W RMS @ 6Ohm

FREQUENCY RESPONSE

from 20Hz to 20KHz ± 0.5dB

DISTORTION

1% @ 1KHz (Max Power)

S/N RATIO

>90dB “A” weighted

INPUTS

4 line inputs
1 S/PDIF input
1 USB input

D/A CONVERTER

2 X WM8740, dual mono configuration,192KHz oversampling

S/PDIF FORMAT

PCM 32-192KHz, 16-24 bit

USB INTERFACE

PCM 16bit 48KHz, standard audio device, no driver required

OUTPUTS

Pre out (variable level)

BIAS SETTING

Manual adjustment, independent for each power tube

DIMENSIONS (W,D,H)

410x503x235mm

WEIGHT

35Kg

LINE POWER

117, 230, 245 Vac 50/60 Hz (see rear label)

FUSE

See rear label

POWER CONSUMPTION

350W Max

REMOTE CONTROL

BODY

Anodized black aluminium

TRANSMISSION TYPE

Infrared

PROTOCOL

RC5

FUNCTIONS

Volume, mute, input selection, st-by

BATTERIES

2 x CR2032

WEIGHT

200g
