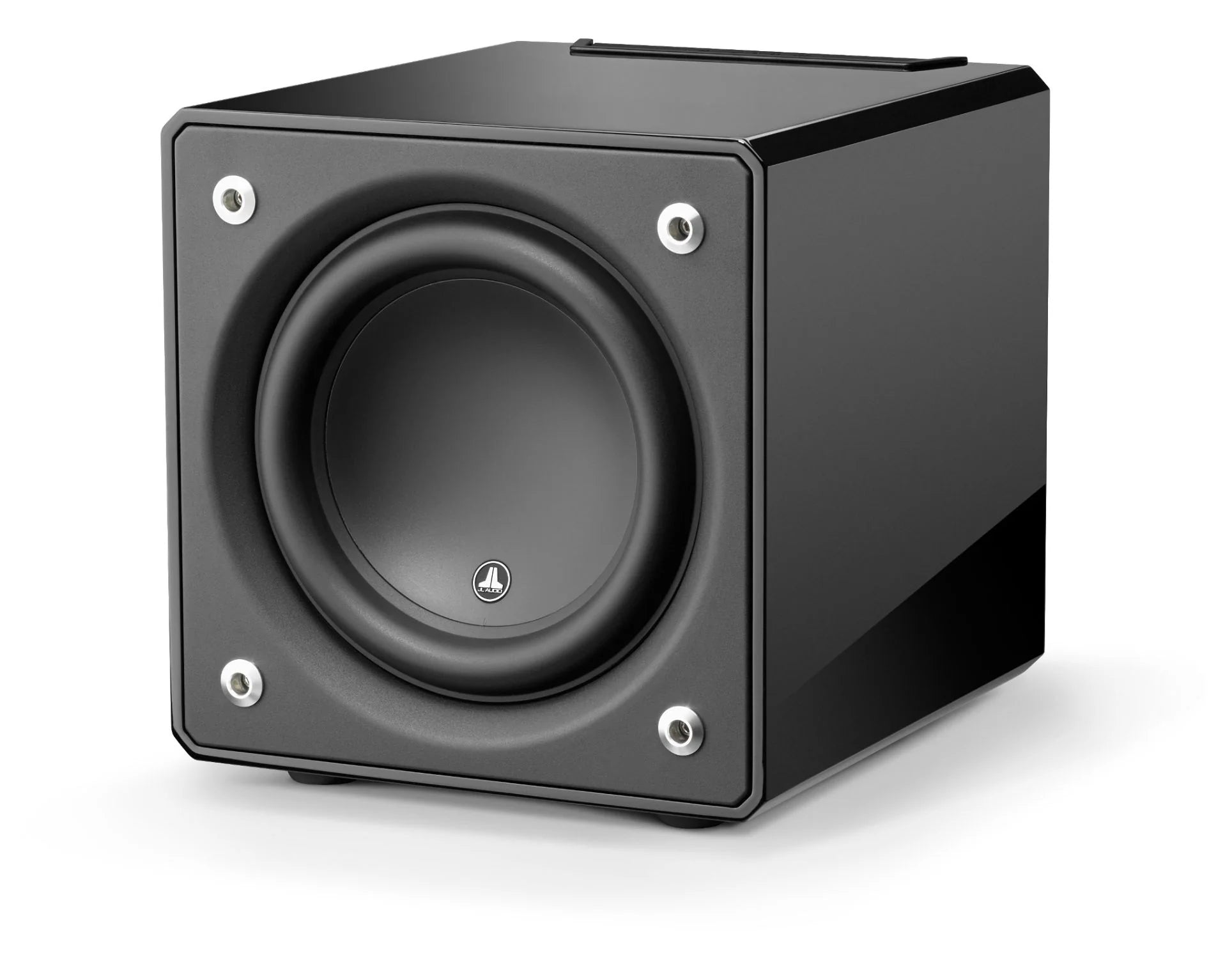

Enclosure Type Sealed
Enclosure Finish Black Gloss
Frequency Response (Anechoic) 25 - 116 Hz (±1.5dB)
-3 dB at 23 Hz / 120 Hz
-10 dB at 18 Hz / 165 Hz
Effective Piston Area (Sd) 58.78 sq in / 0.0379 sq m
Effective Displacement 131 cu in / 2.1 L
Amplifier Power 1200 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Light Modes N/A
Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs N/A
Speaker/High-Level Inputs Stereo or Mono (removeable plug)
Input Grounding Isolated or Grounded
Input Modes N/A
Level Control Variable, from full mute to +15dB over reference gain
Filter Mode(s) Low-Pass
Filter Slope(s) 24 dB/octave
Filter Frequency Range 25 Hz - 130 Hz
Filter Defeat Function Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 280 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim N/A
Line Outputs Stereo or Mono (two RCA jacks), High-Pass or Pass-Through
Output to Slave N/A
Calibration Mode N/A
