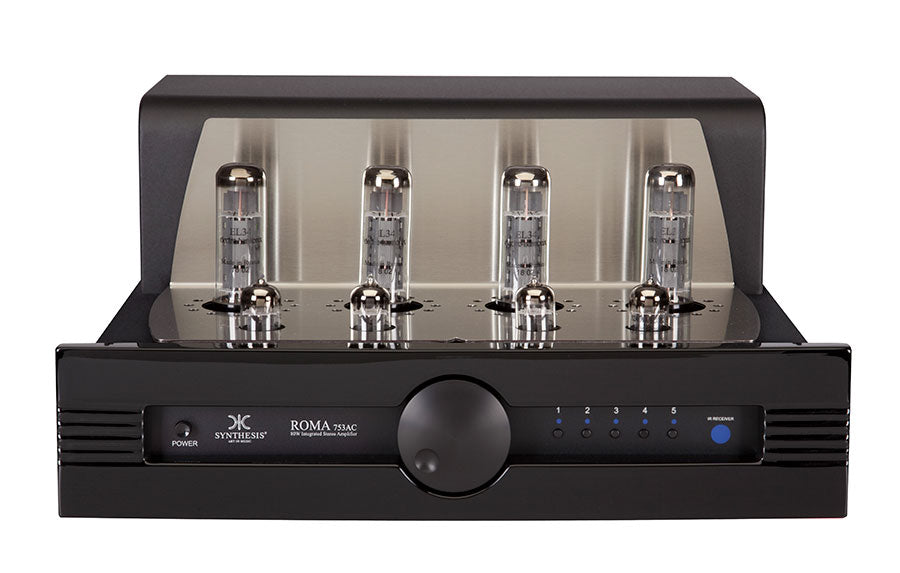

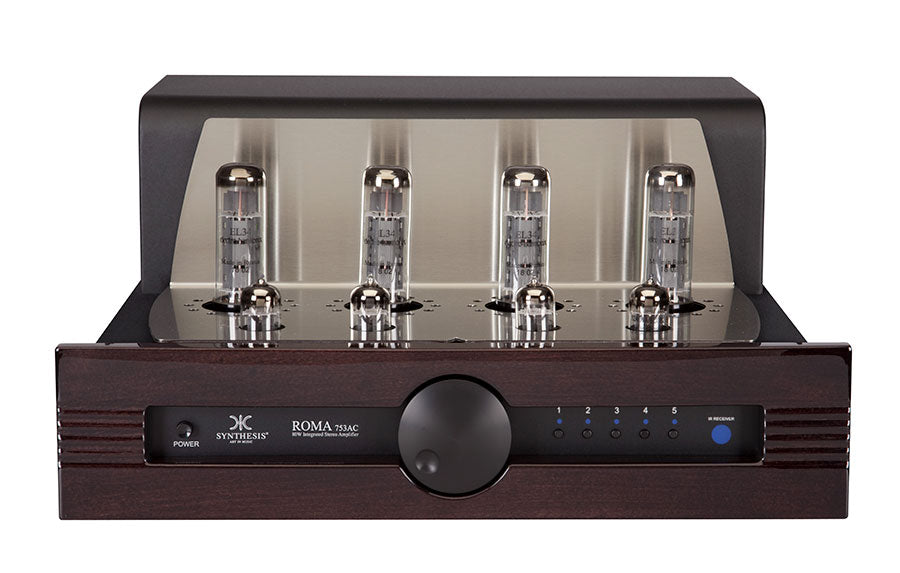

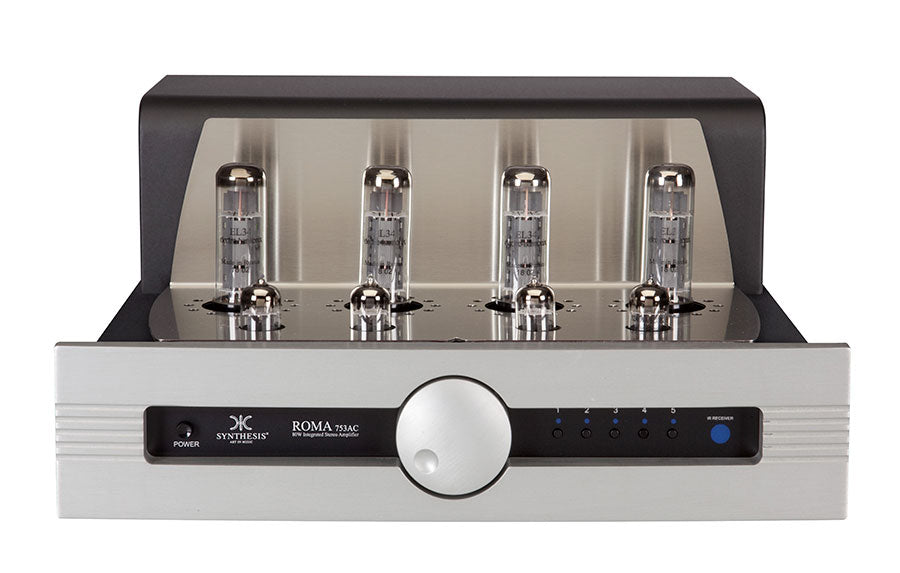

Synthesis Roma 753AC 50W Integrated Stereo Tube Amplifier

DC Powered tube heater
All tubes, except EL34, have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum.
Output transformer
The Output transformer uses a Hi-Grade lron-Silicon for superb frequency reproduction & width. With this newly designed custom output transformer we are able to achieving a highly delicate & precise sound reproduction faithful to the originai recording.
Mechanical chassis construction
The power supply & output transformers are held by an extremely rigid structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
Remote control
It has a soft button design, perfectly matching the aesthetics for the "ROMA" series. It controls volume,mute and sources selection.
Feet
Four aluminium feet with an insert of strong rubber. These rubber feet has been choise to minimise vibrations of the amplifier in isolation from its surroundings.
Binding posts
Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement.
Sockets
Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement.
Components
Components for the Roma 753AC have been selected with great care throughout. Only the best available components are considered & all must undergo an exhaustive analysis of their sonic influence prior to final selection.
Selected tubes
All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process & at the end of this, selects the perfect tubes which are then matched for a perfect balance.

POWER STAGE (1 CH.)

2 X EL34/6CA7

INPUT STAGE (1 CH.)

1 X 12AU7/ECC82

DRIVER STAGE (1 CH.)

1 X 12AU7/ECC82

INPUT IMPEDANCE

50KOhm

INPUT SENSITIVITY

450mV RMS

OUTPUT TAP

6 Ohm

CONFIGURATION

Push-Pull pentode

POWER OUTPUT
(1 CH., THD < 1%)

50W RMS @ 6Ohm

FREQUENCY RESPONSE

from 20Hz to 20KHz ± 0.5dB

DISTORTION (MAX POWER)

1% @ 1KHz

S/N RATIO

>90dB “A” weighted

INPUTS

5 line inputs

OUTPUTS

Pre out (variable level)

BIAS SETTING

Manual adjustment, independent for each power tube

DIMENSIONS (W,D,H)

410x503x235mm

WEIGHT

25Kg

LINE POWER

117, 230, 245 Vac, 50/60 Hz (see rear label)

FUSE

See rear label

POWER CONSUMPTION

300W Max (753AC)

REMOTE CONTROL

BODY

Anodized black aluminium

TRANSMISSION TYPE

Infrared

PROTOCOL

RC5

FUNCTIONS

Volume, mute, input selection, st-by

BATTERIES

2 x CR2032

WEIGHT

200g
