Here are the specifications presented in list form:
**AUDIO SPECIFICATIONS**
- Number of Channels: 2
- Fixed Output Level:
- 2.0Vrms Unbalanced
- 4.0Vrms Balanced
- Variable Output Level: N/A
- Output Impedance: 100 ohms Unbalanced and Balanced
- Frequency Response: ±0.5dB from 20Hz-20kHz
- Signal To Noise Ratio: Better than 100dB (A-weighted)
- Dynamic Range: Better than 96dB
- Total Harmonic Distortion: 0.02% @ 1000Hz
- Channel Separation: Better than 85dB (1,000Hz)
- Headphone Output Impedance: N/A
**DIGITAL AUDIO SPECIFICATIONS**
- Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit PCM/DSD, Quad Balanced
- Coaxial Sample Rate: 16, 24-bit/192kHz
- Optical Sample Rate: 16, 24-bit/192kHz
- USB Sample Rate: 16, 24-bit/192kHz
- Native DSD and DoP DSD: Up to DSD256, DXD384
- Digital Coaxial Input: 0.5V p-p/75 ohms
- Digital Optical Input: -15dbm to -21dbm
- Digital Output Sample Rate: N/A
- Digital Optical Output: N/A
- Digital Coaxial Output: N/A
- Digital Output Jitter: N/A
- Digital XLR Output: N/A
- Digital MCT Output: N/A

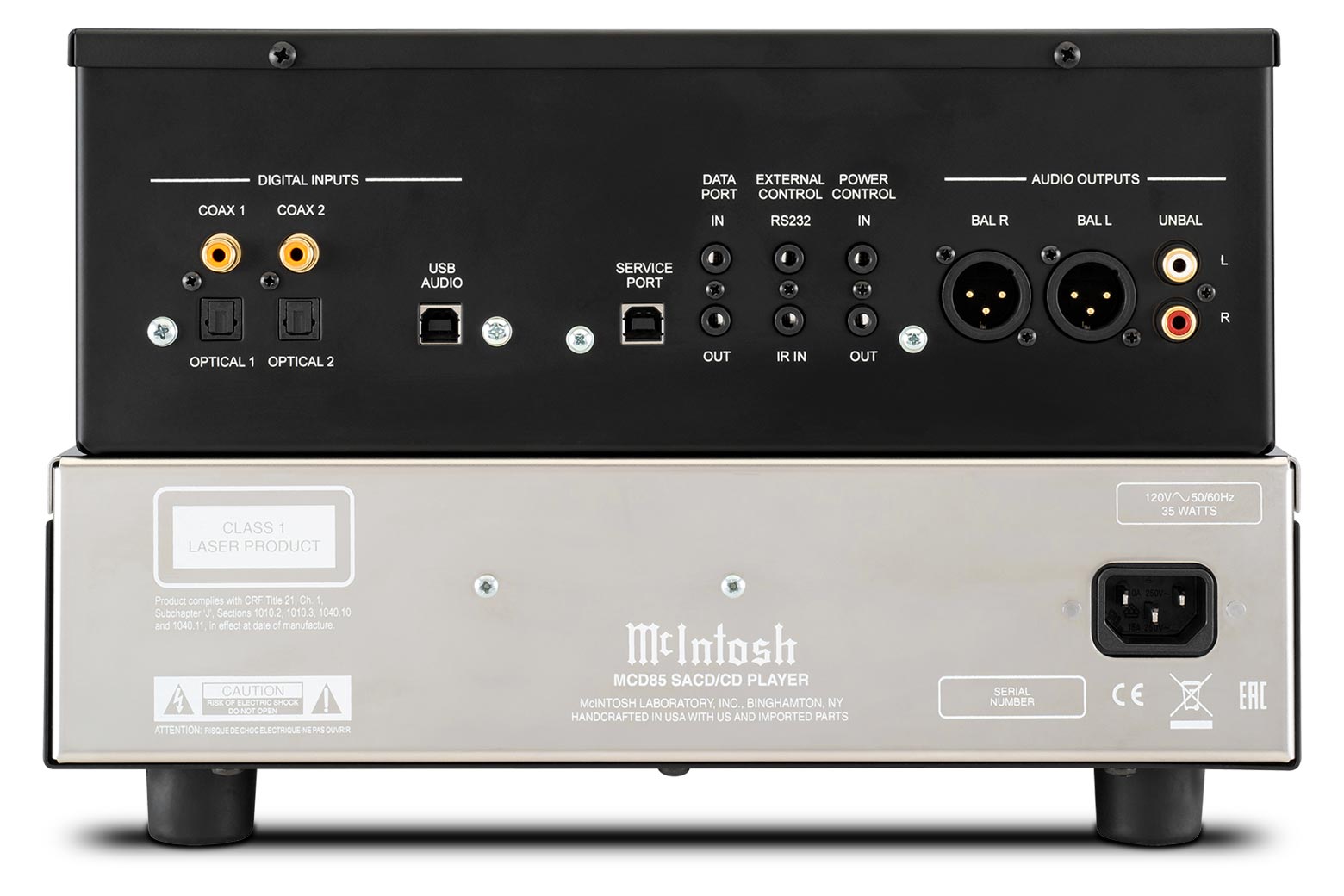

**CONNECTIVITY**
- Balanced Fixed Output: 1
- Unbalanced Fixed Output: 1
- Balanced Variable Output: 0
- Unbalanced Variable Output: 0
- Digital Coaxial Input: 2
- Digital MCT Input: 0
- Digital Optical Input: 2
- Digital USB Input: 1
- Digital USB Input Type: Type B
- Digital Coaxial Output: 0
- Digital MCT Output: 0
- Digital Optical Output: 0
- Digital XLR Output: 0
- Headphone Output: 0
**CONTROL**
- Power Control Input: 1
- Power Control Output: 1
- Rear Panel Data Input: 1
- Rear Panel IR Sensor Input: 1
- RS232 Control Input: 0
**GENERAL SPECIFICATIONS**
- Disc Formats: SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
- Disc Capacity: 1
- Laser Type: Twin Beam
- Laser Beam Wavelength:
- 650nm (SACD)
- 790nm (CD)
- Laser Power: CLASS IIa/CLASS I
- Standby Power Requirement: <0.5 watt
