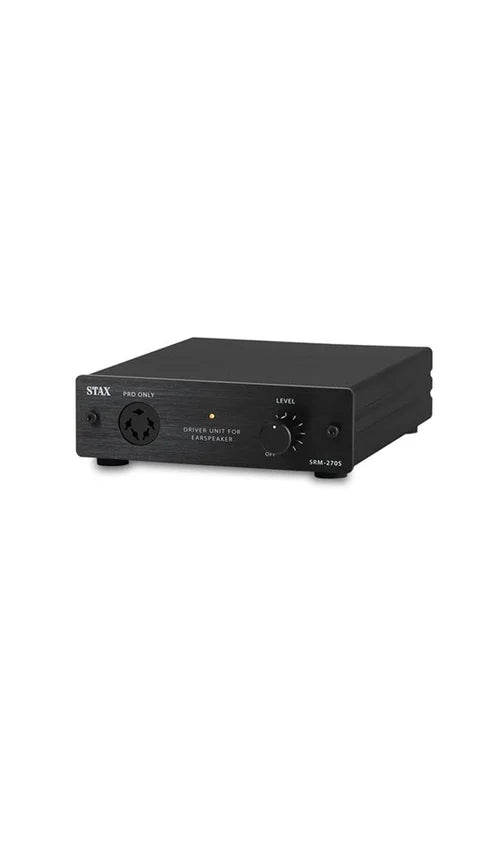

Stax SRM-270S Solid State Driver For Electrostatics

Sale price$699.00

Tax excluded. Shipping calculated at checkout

STAX SRM-270S

Designed for audiophiles eager to delve into the world of electrostatic earspeakers without compromise, the SRS-X1000 stands as a beacon of innovation and quality. As the successor to our long-standing SRS-3100 electrostatic audio system, it pairs the brand new SR-X1 earspeakers with the newly developed SRM-270S driver unit, setting a new benchmark for entry-level electrostatic audio system.

The SRM-270S has updated the design of the previous model (SRM-252S) by improving the quality of the RCA pin jack, adopting a 3mm thick front aluminum panel, and adopting an aluminum extrusion case that has been enlarged and has improved heat dissipation. The first stage of the amplifier is equipped with the latest low-noise FET, and the output stage is equipped with an improved emitter follower circuit. The latest design know-how that follows the trend of driver development in recent years is condensed into a compact housing. Since the input and output are equipped with parallel out terminals, it can be easily combined with your current system. The SRS-X1000 system has a high degree of freedom in installation, and is an all-purpose set model that can be recommended not only for music but also for personal movie watching on a desktop or bedside. High-quality RCA terminals. The parallel out terminal allows easy introduction into existing systems.

Specifications
  • Frequency response: DC to 35,000Hz/+0, -3dB
  • Harmonic distortion: 0.01% or less/1kHz 100V rms
  • Amplification: 58dB (800x)
  • Amplification: 58dB (800x)
  • Maximum output voltage: 280V rms/1kHz
  • Input impedance: 25kΩ
  • Input terminal: RCA x 1
  • Output terminal: Parallel out x 1
  • Bias voltage: DC580V
  • Power supply voltage: AC adapter included
  • Power consumption: DC12V/500mA
  • External dimensions: 132(W) x 38(H) x 153(D)mm (excluding protrusions)
  • Weight: 540g
