Shunyata Typhon T30 Power Distributer

Sale price$8,400.00

Tax excluded. Shipping calculated at checkout

Colour: Black

Colour

Power Cable: No Power Cable

Power Cable

The Ultimate High Current Distributor


The TYPHON T30 is the ultimate high-current, performance oriented power distributor in Shunyata Research’s lineup. The TYPHON T30 is a hot-rodded version of the acclaimed TYPHON T2 and is specifically designed to improve the performance of the world’s most powerful amplifiers. The T30 measurably reduces power line noise while dramatically enhancing amplifier power delivery and dynamic range.



It’s All In The Connection
What differentiates the TYPHON T30 from the TYPHON T2 is its 30-amp capability. Shunyata Research collaborated with military connector manufacturer, Amphenol, to create 30-amp, twist lock connectors specifically for use in the TYPHON T30. The quality and current carrying capacity of these connectors is unparalleled. Their performance nearly matches that of a hard-wired electrical connection, reducing the contact impedance that could otherwise affect peak-current transfer.

To extract the performance potential from the T30, a 30-amp AC line and connector are desirable. However, a standard 15-amp or 20-amp electrical line may be used.(Which naturally limits the maximum continuous current potential of the T30 to the power rating of the circuit.)



Dramatic Performance In All Areas
The TYPHON T30 supercharges the performance of high-current amplifiers or other power hungry components. The more demanding the current draw, the greater the difference TYPHON T30 makes in perceived slam, dynamics and the sheer visceral sense of raw power.



Flexible Application Capability

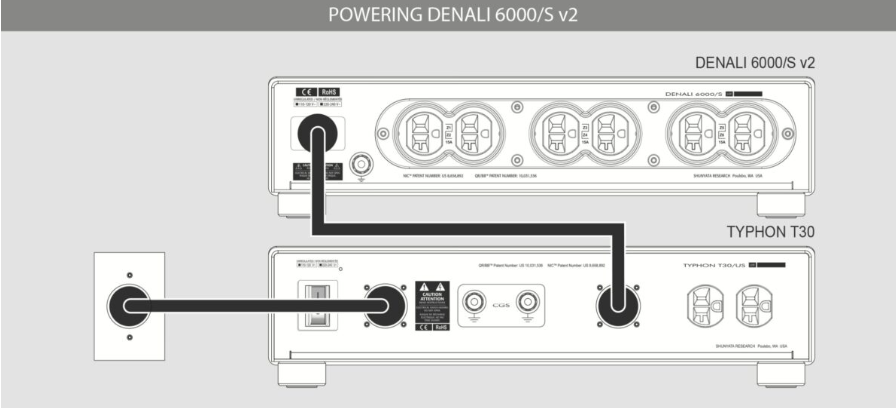

The TYPHON T30 can also be used as a stand-alone, three-component power distributor. Two standard outlets, on the back of the T30, can power two source components or a preamplifier while the proprietary Amphenol outlet provides high-current power to an amplifier. Like the TYPHON T2, the TYPHON T30 can be used to enhance the performance of any Shunyata power distributor. (except the Everest)


Proven In High Demand Professional Applications
The TYPHONT 30 power distributor is the ultimate high-current, performance oriented product within Shunyata Research’s legendary range of power distributors. The TYPHON T30 has also been used in some of the world’s finest recording studios, powering massive recording consoles, powered monitors and high-current amplifiers. There are few products that are capable of matching the performance delivery of the TYPHON T30 for use in high-performance audio systems and professional recording studios.

Proprietary Power Cables
The proprietary Amphenol inlet connector and outlet connector require power cables that are specifically built for this application.

Weight & Dimensions

Dimensions:
Width: 17 inches (43.2 cm)
Depth: 10 inches (25.4 cm)
Height: 4.4 inches (11.2 cm)
Weight: 17.5 lbs (7.95 kg)

Product Specifications

Maximum Voltage:
90 – 125 VAC r.m.s. unregulated (US)
220 – 240 VAC r.m.s. unregulated (US)
220-240VAC r.m.s. unregulated (EU, AS)

Input Current Ratings:
US/AS maximum continuous current: 30A
EU maximum continuous current: 16A

Output Current Ratings:
US NEMA 2-20 Outlets: 20A
EU CEE7/3 Socket: 16A

Amphenol Outlet:
30A @ 125 VAC
20A @ 240 VAC

Transient Suppression:
Maximum transient pulse 40,000 Amps @ 8/50 μs

Over-Current Protection:
Hydraulic electromagnetic breaker

Wiring System:
6 gauge ArNi® VTX-Ag™ buss system
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction

Connectors & Sockets:
Inlet: Proprietary 30A Amphenol
Twist-lock outlet: Proprietary Amphenol
US version: 2 NEMA 5-20R
AS version: 2 NEMA 5-20R
EU version: 2 CEE7/3

Isolation Zones:
3 zones

Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-38 Footer

Construction:
All aluminum chassis
Anodized, brushed aluminum faceplate
