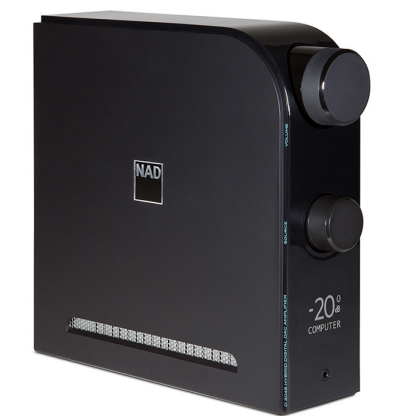

NAD D 3045 Hybrid Digital DAC Amplifier

Sale price$1,099.00

Tax excluded. Shipping calculated at checkout

The NAD D 3045 is everything a modern amplifier should be; compact, energy efficient,
powerful, silent, high-resolution enabled, and packed with cutting edge features like DSD
and MQA playback. NAD’s expertise in both digital and analogue engineering is on full
display in this flexible and affordable amplifier.

Higher Fidelity
Hi-Res is to audio, what HD is to video. It is more lifelike, natural, and a much more
enjoyable listening experience. With features like support for MQA music, the D 3045 can
faithfully and accurately reproduce the full spectrum of sound encapsulated on the studio
master. Until now, music loving consumers have only been able to hear an edited version
of the full fidelity because the delivery systems, be it tape, vinyl, or CD, did not have the
capacity to hold all the information contained in the studio-master recording. With hi-res
downloads and streaming we can now enjoy exactly the same experience the artist heard
in the studio when the recording was first made. This is revolutionary! Yet, 90% of the
products on the market today do not have the full capability required to experience this
new higher fidelity

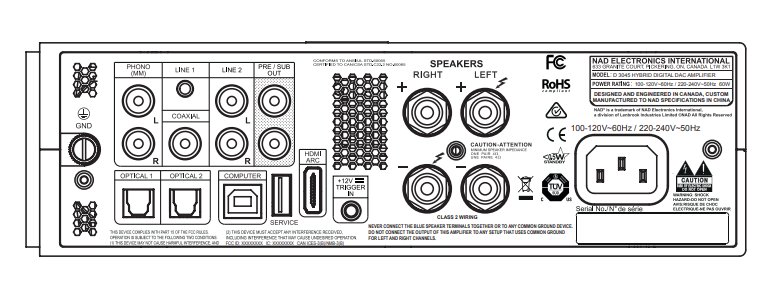

Features You Won’t Find Anywhere Else
Love vinyl? The D 3045 features NAD’s super accurate, wide
dynamic range, moving magnet phono preamp to extract every
last morsel of sound from your LPs. If you still enjoy CDs, we have
both analogue and digital inputs. The digital inputs allow the use
of the advanced hi-res DAC built into the D 3045, or you can even
send the sound from your TV to the NAD amplifier and seamlessly
control the system using your TV’s remote by taking advantage
of the HDMI ARC input. You can even add a subwoofer to the
system with the convenient Sub Out jack.

• 2 x 60W Hybrid Digital Amplifier
• Two-Way Bluetooth powered by
Qualcomm aptX HD audio
• Asynchronous USB 24/192 Input
supporting MQA and DSD
• HDMI Audio Return Channel
• Coax and Optical Input
• MM Phono and Line Input
• Preamp Out
• Sub Out
• Headphone Amp
• IR Remote

Product Specifications

THD (20Hz – 20kHz) <0.003% at 2V out
Signal-to-Noise Ratio >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
Channel separation >85dB (1kHz)
>80dB (10kHz)
Input impedance (R and C) 47kohms + 220pF
Maximum input signal >5.5Vrms (ref. 0.1% THD)
Output impedance 400 Ohms
Input sensitivity 82mV (ref. 500mV out, Volume maximum)
Frequency response ±0.2dB (20Hz - 20kHz)
Maximum voltage output - IHF load >4V (ref. 0.1% THD)
THD (20Hz – 20kHz) <0.015% at 2V out
Signal-to-Noise Ratio >82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity 1.35mV (ref. 500mV out, Volume maximum)
Maximum input signal at 1kHz >90mVrms (ref. 0.1% THD)
Frequency response ±0.3dB (20Hz - 20kHz)
Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50kHz by a second order filter, such as used in Neumann cutting lathes.
THD (20Hz – 20kHz) <0.003% at 120mW
Signal-to-Noise Ratio >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
Frequency response ±0.3dB (20Hz - 20kHz)
Output impedance 2 Ohms
Maximum headphone output - 32 Ohm load <8V (ref. 0.1% THD)
Continuous output power into 4 and 8 Ohms 60W (ref. 20Hz-20kHz at 0.03% THD, both channels driven)
THD (20Hz – 20kHz) <0.005% (at 1W, 4 and 8 ohms)
Signal-to-Noise Ratio >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)
Clipping power >80W (at 1kHz 4 Ohms 0.1% THD)
IHF dynamic power 8 Ohms : 80W
4 Ohms : 150W
2 Ohms : 200W
Peak output current >18A (in 1 Ohm, 1ms)
Damping factor >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
Frequency response ±0.3dB (20Hz - 20kHz)
Channel separation >75dB (1kHz)
>70dB (10kHz)
Input sensitivity 260mV (for 30W in 4 Ohms)
Supports bit rate/sample rate up to 24 bit/192kHz (digital source)
up to 24 bit/384kHz (computer source)
Standby power <0.5W
Gross dimensions (W x H x D)* 70 x 235 x 265 mm
2 13/16 x 9 5/16 x 10 7/16 inches**
Net weight 3.6kg (7.9lb)
Shipping weight 2.6kg (5.7lb)
