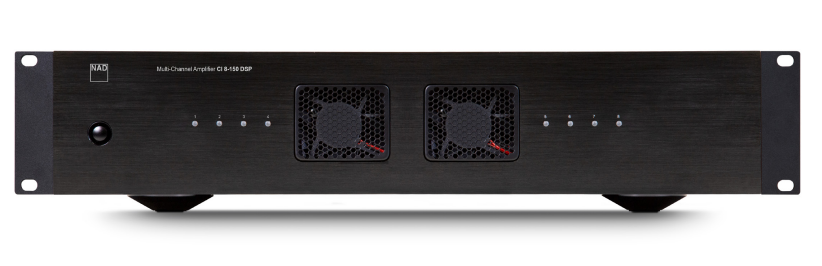

NAD CI 8-150 DSP Multi-Channel DSP, IP-Addressable Distribution Amplifier

The CI 8-150 DSP is NAD’s flagship distribution amplifier and designed to deliver the
most sonically refined power available today with the stability and durability necessary
to reside in a rack space. The HybridDigital™ nCore amplifier produces 8 x 150 watts per
channel @ 8 Ohms and bridgeable to 4 X 280 watts @ 8 Ohms. Designed to fit in a 2U
rack space, the CI 8-150 DSP delivers audiophile level performance capable of offering
highly detailed sound to the most demanding reference loudspeakers. In addition to a
dual bus system and analog inputs, the CI 8-150 DSP offers a pair of optical and digital
inputs.
The CI 8-150 DSP is a network controlled amplifier which allows the installer to
configure and calibrate via a web based user interface. The User Interface offers access
to a multi channel digital signal processing (DSP) providing detailed equalisation control.
In addition, the UI offers insight into temperature and power status, as well as basic
troubleshooting functions like power cycling, factory resetting and updating.
The CI 8-150 DSP delivers high resolution amplification, designed for today’s rack mount
applications.
FEATURES & DETAILS

-Platform accessed through IP control

-Custom web UI manages DSP calibration,IP control and more

-8 Channels x 150 Watts @ 8 Ohms

-Bridgeable to 4 channels x 280 Watts@ 8 Ohms

-HybridDigital nCore amplifier deliversunmatched sonic performance

-Effectively handles long cable runs anddifficult speaker loads

-Dual global Inputs/Outputs

-2 x Optical and 2 x Coax Inputs

-2U Rack height

-0.5W Standby Mode, 3W Network Standby

-12V Trigger In; IR In/Out

-Auto Sense Turn-on

-Universal AC Power Supply
