McIntosh WS500 In-Wall Loudspeaker (In-Store Purchases Only)

Sale price$4,200.00

Tax excluded. Shipping calculated at checkout

PRICE IN CAD: WS500 (each)


Add-on: By Itself


McIntosh WS500 In-Wall Loudspeaker (In-Store Purchases Only)

NOTE that the price listed is for EACH speaker.

Introducing the versatile McIntosh WS500 In-Wall Loudspeaker, designed for custom installations in both 2-channel home audio systems and home theaters. Whether used as front, center, or surround sound speakers, the WS500 delivers exceptional performance and seamlessly integrates with other McIntosh products for a cohesive audio experience. Pair it with our MI128 or MI254 distribution amplifiers, or match it with our WS300 in-wall speaker and CS200 in-ceiling speaker to create a harmonious sound system. In home theaters, the WS500 pairs perfectly with our A/V processors and multi-channel amplifiers, taking your cinematic experience to the next level.

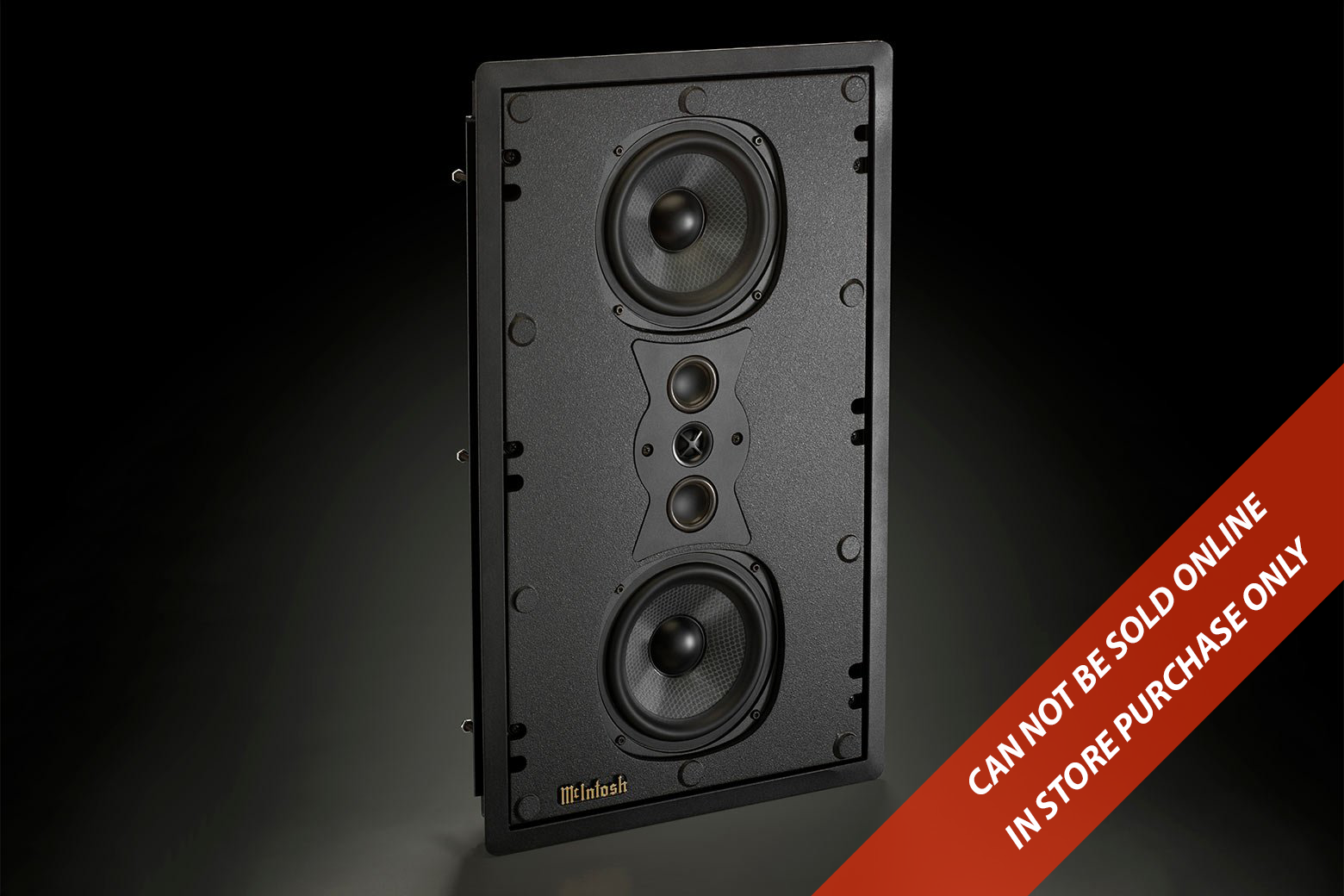

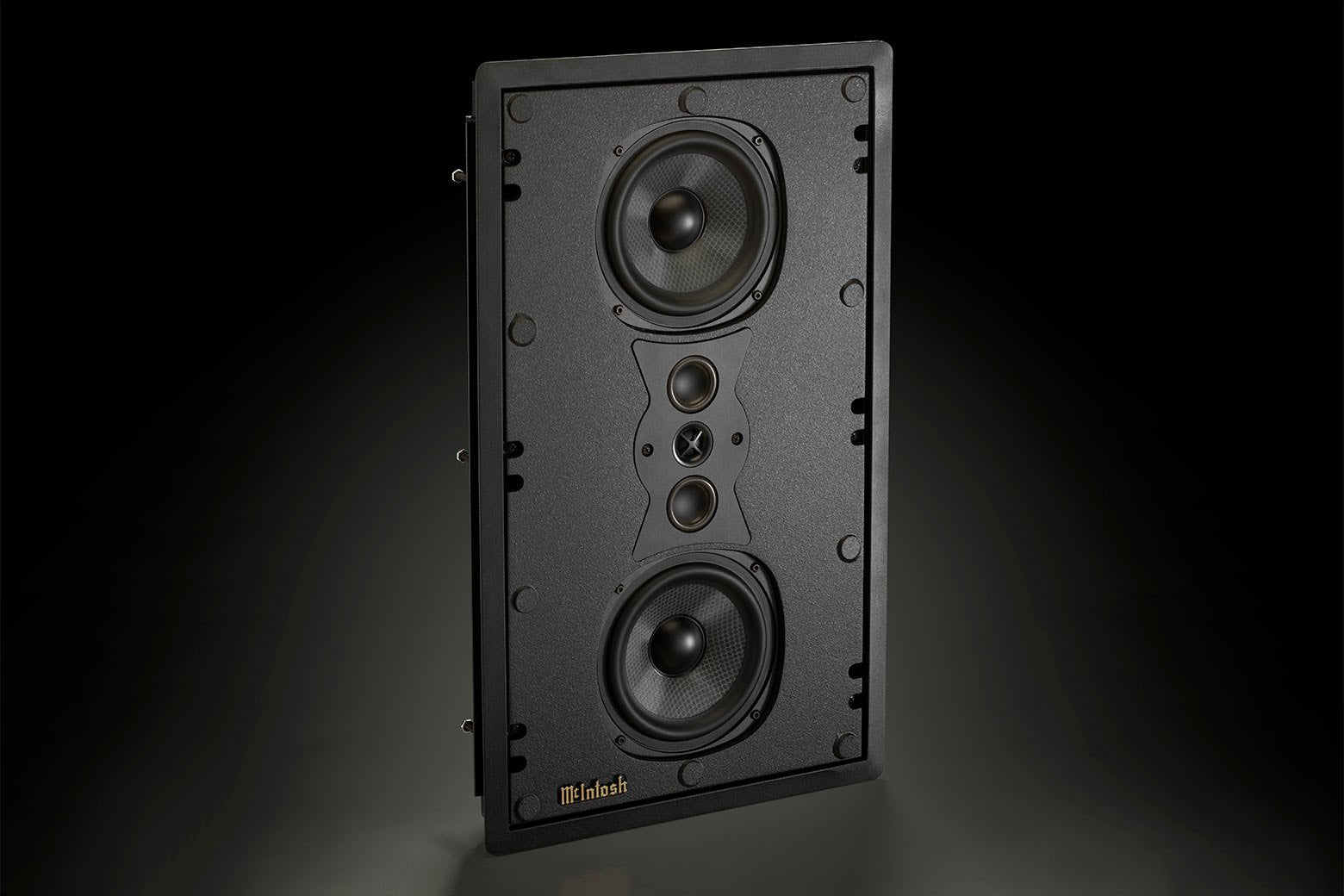

The WS500 is a 3-way speaker enclosed in a controlled air chamber, ensuring remarkable performance in any environment. Two 6.5" woofers, two 2" inverted Titanium dome midranges, and one 3/4" Titanium dome tweeter work together to deliver precise sound reproduction. The woofers feature a shallow design that fits standard 2x4 wall construction, allowing for easy installation. With molded carbon reinforced cones and elastomeric surrounds, the woofers offer high linearity and a long throw, high-power design. The midranges and tweeters used in the WS500 are the same drivers found in our acclaimed XR50 and XR100 home audio speakers, guaranteeing outstanding performance.

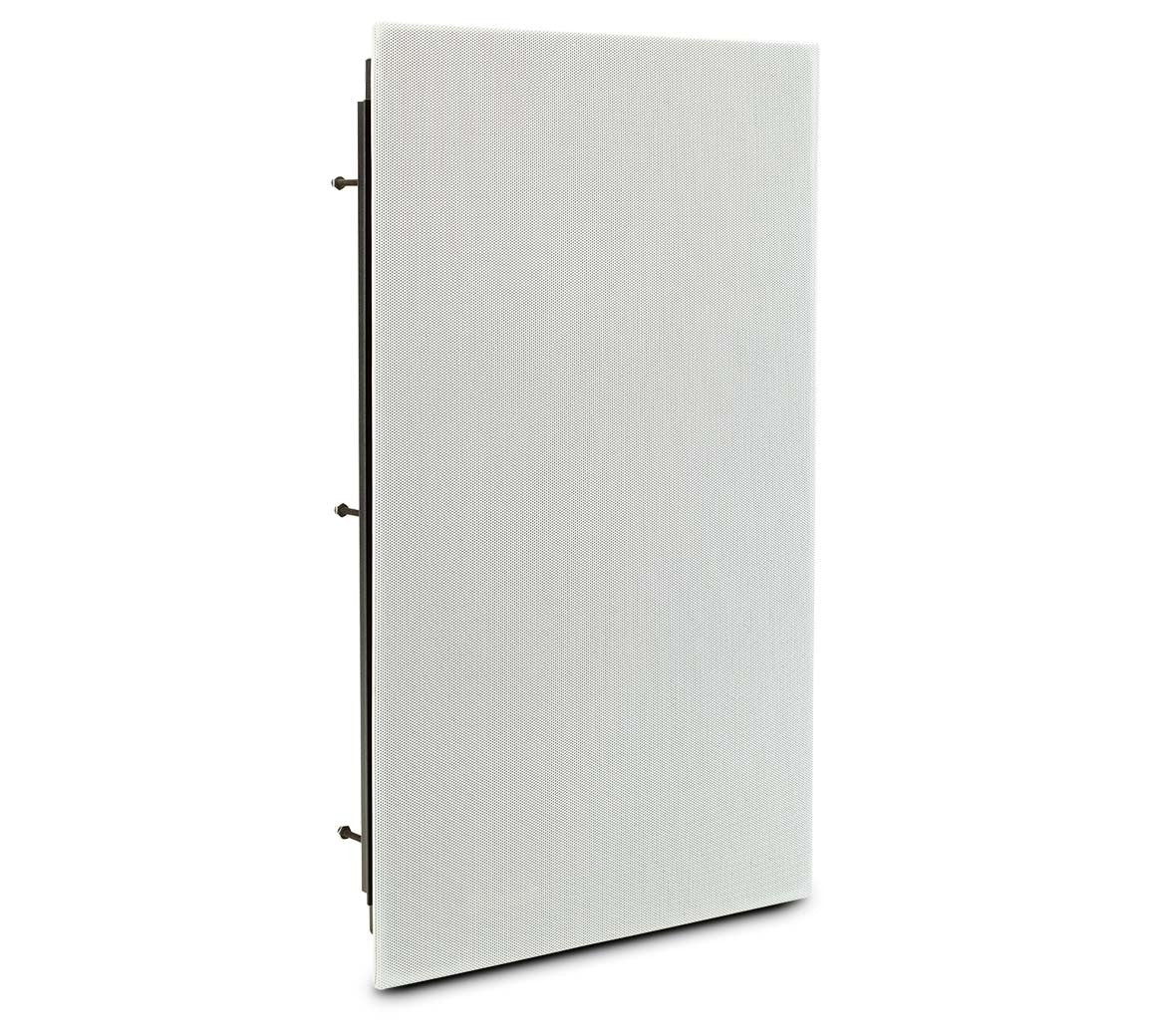

The WS500's grille magnetically attaches for effortless removal, and its paintable design ensures seamless integration with any decor. The mounting flange is discreet, creating an immersive experience where the speaker virtually disappears into its surroundings. The WS500 comes with all the necessary hardware and mounting mechanisms for post-construction installations, and an optional rough-in kit (#RK500) is available if needed.

Elevate your audio setup with the McIntosh WS500 In-Wall Loudspeaker and enjoy exceptional sound quality and seamless integration in your custom install applications.


Impedance Nominal
4 Ohms
Power Rating
Up to 250 Watts
Frequency Response
80Hz to 20kHz
Sound Pressure Level, 2.8V/1m
350Hz, 2,500Hz
Number of Woofers
Woofer Size
Woofer Type
Woven Glass Fiber
Number of Midranges
Midrange Size
Midrange Type
Inverted Titanium Dome
Number of Tweeters
Tweeter Size
Tweeter Type
Titanium Dome
System Type
3-Way In-Wall
Magnetic metal mesh
Available Finishes
Black chassis with white paintable grille

Weight & Dimensions

Unit Dimensions (W x H x D)
14" (35.5cm) x 23-1/2" (59.7cm) x 3-5/8" (9.3cm)
Unit Weight
24 lbs (10.9 kg)
Shipping Weight
29 lbs (14.1 kg)
