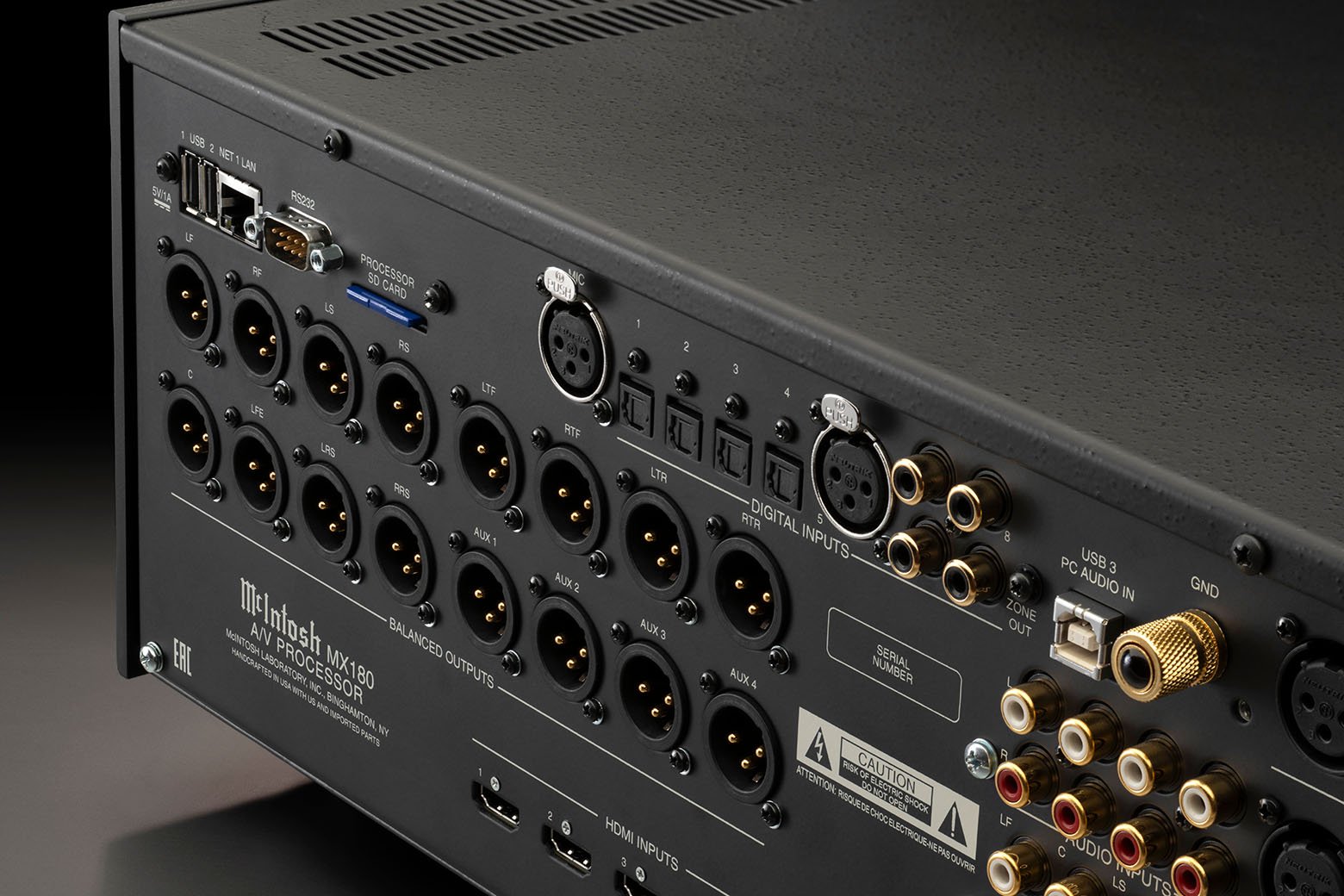

CONNECTIVITY
Multi-Channel Outputs Balanced
15.1
Multi-Channel Inputs Unbalanced
7.1
Multi-Channel Outputs Unbalanced
0
Stereo Inputs Balanced
2
Stereo Inputs Unbalanced
5
(including 1 Moving Magnet Phono)
Stereo Outputs Unbalanced
1 (Zone B)
Digital Coaxial Input
3
Digital Coaxial Output
1 (Zone B)
Digital Optical Input
4
AES/EBU Balanced Input
1
HDMI Input
5
HDMI Output
2
USB
2 Type A
1 Type B for digital audio (2.0, 24-bit/192kHz Asynchronous)
Component Input
0
Component Output
0
Composite Input
0
Composite Output
0
Subwoofer 2 Output
4 auxiliary outputs
Network Connection
1
Max # of audio channels in Zone A
16
Additional Zone Outputs
Zone B: Analog and digital audio outputs
Advanced Connections
Ethernet Web interface and firmware update, IP-based control
HDMI FEATURES
Resolution and Refresh Rates
8K/60Hz and 4K/120Hz
HDCP
2.3
4:4:4 Color
Yes
Rec. 2020 (BT.2020)
Yes
3D video pass-through
Yes
Dynamic Lip-sync
Yes
ARC
Yes (on 1 output)
eARC
Yes (on 1 output)
Video Scaling
No
High Dynamic Range (HDR)
HDR (static HDR), Dynamic HDR, HDR10+, HLG, Dolby Vision (including low latency)
Quick Media Switching (QMS)
Yes
Auto Low Latency Mode (ALLM)
Yes
Quick Frame Transport (QFT)
Yes
Variable Refresh Rate (VRR)
Yes
PROCESSING
Total Harmonic Distortion (DSP Bypass)
0.005%
Dolby Processing
Dolby Atmos, Dolby Surround Upmixer
DTS Processing
DTS-X Pro, Neural:X Surround Upmixer
Auro Processing
Auro 3D, Auro-Matic, Auro 9.1, 10.1, 11.1
Pure Stereo DSP Bypass Mode
No
MPEG-H Audio
No
360 Reality Audio
No
IMAX Enhanced
No
Room Correction
RoomPerfect
CONTROL
Third Party Control
RS232, Web IP, IR Input
Tone Controls
Bass and Treble with adjustable frequency
OSD Overlay on HDMI Output
No
Input-Output Format Indicators
9 in and 9 out
Control of McIntosh Sources
Yes, wired with data cables
GENERAL SPECIFICATIONS
Channel Formats
15.1, 11.1 (7.1.4), 7.1, 5.1, Stereo
Microphone and stand included
Yes
Network Features
Ethernet Control and Setup
Unique Crossover Frequency, Each Speaker
Yes
Special Features
Up to 64 input capability, 4 assignable auxiliary channels
