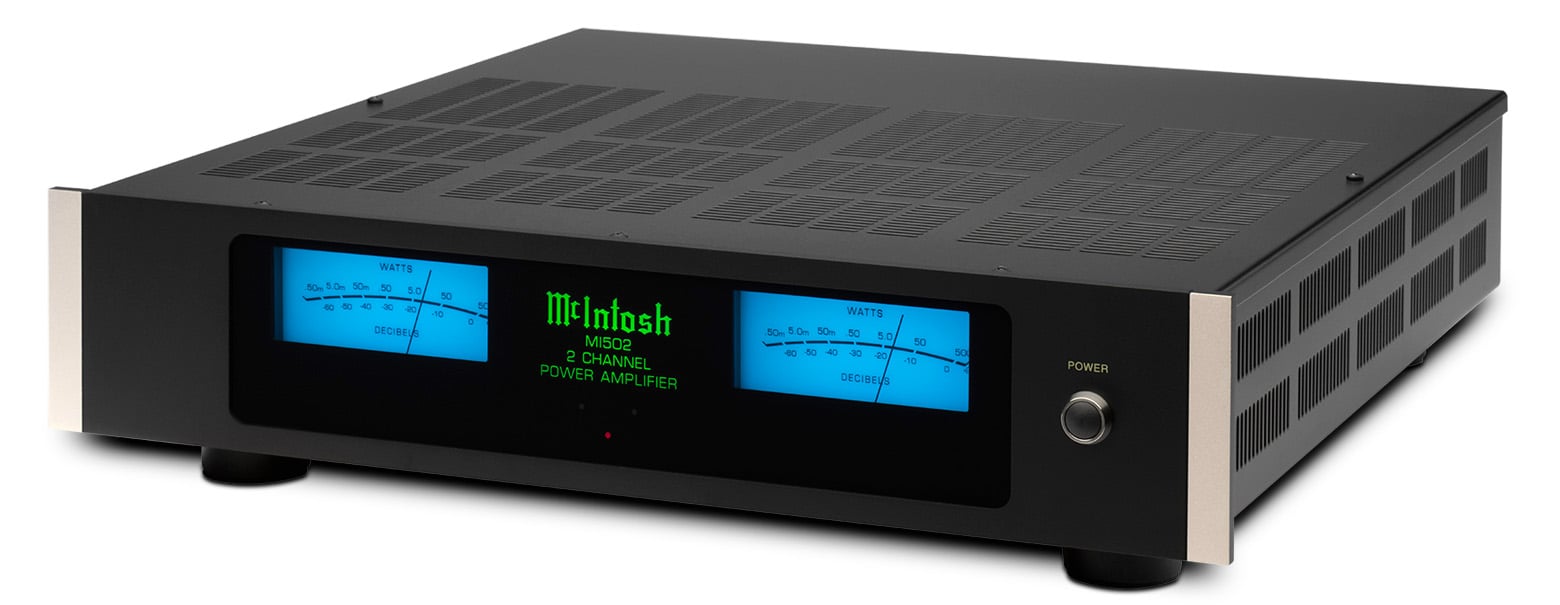

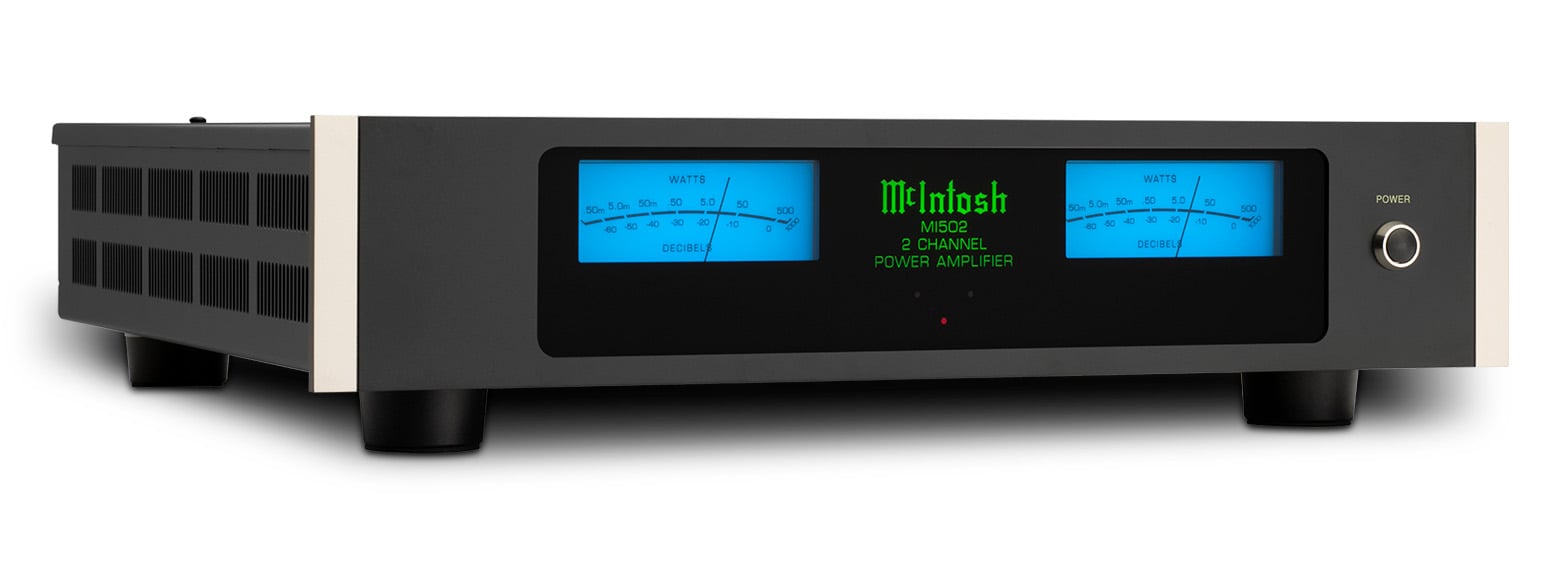

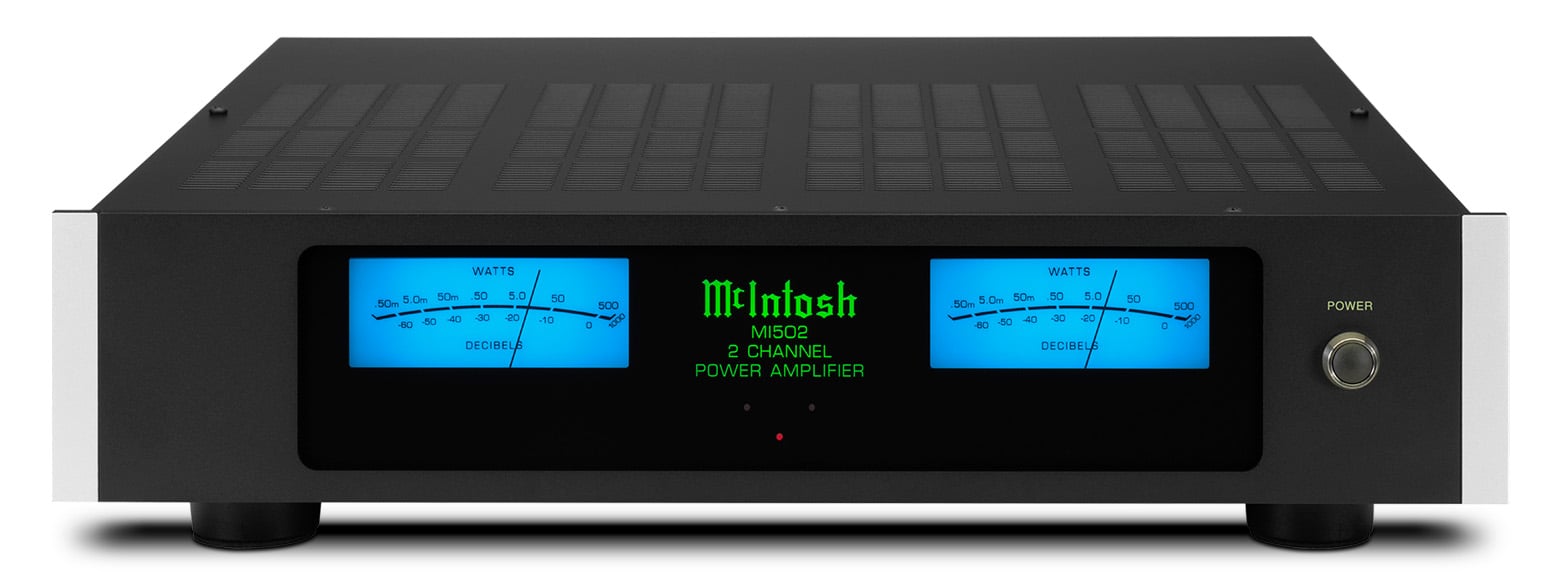

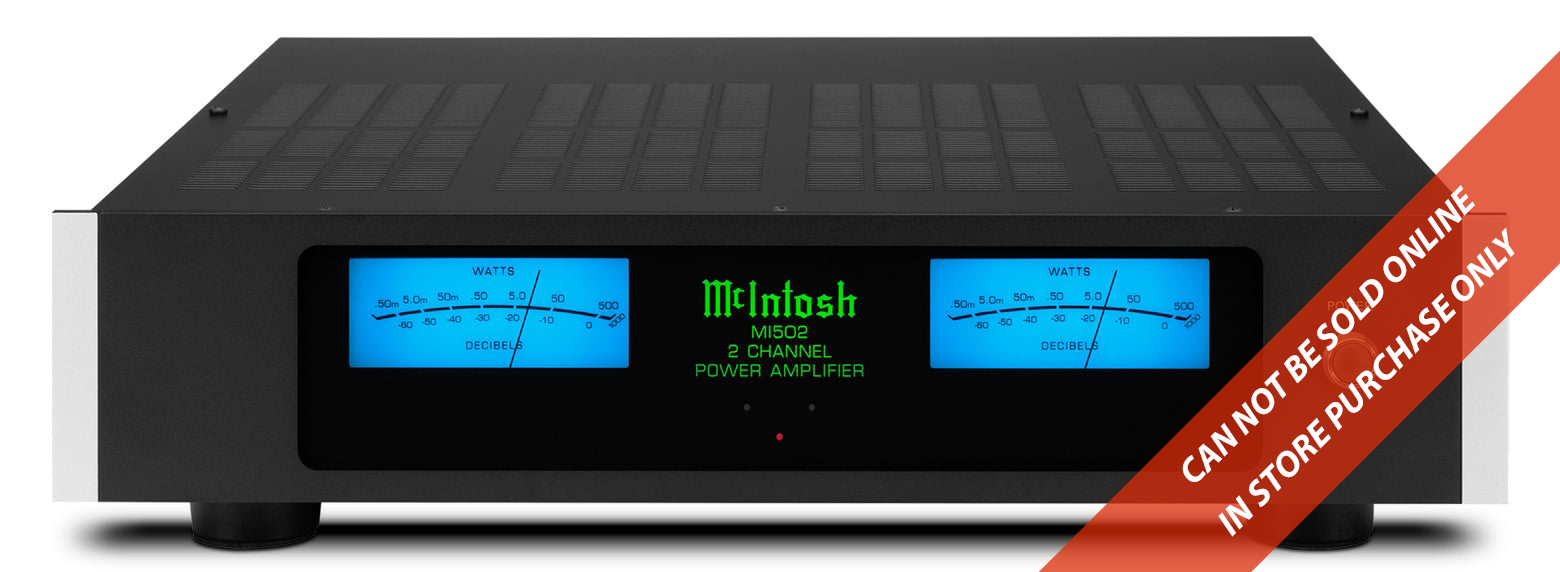

McIntosh MI502 2-Channel Digital Amplifier (In-Store Purchases Only & USD Pricing)

Sale price$4,500.00

Tax excluded. Shipping calculated at checkout

PRICE IN USD: MI502

PRICE IN USD

McIntosh MI502 2-Channel Digital Amplifier (In-Store Purchases Only)

THE PRICE LISTED IS IN USD.

Integrate the powerful McIntosh MI502 2-Channel Digital Amplifier into your custom installed home audio or home theater system for an unmatched audio experience. With 500 Watts into 8 Ohm speakers or 800 Watts into 4 Ohm speakers, this amplifier delivers world-renowned McIntosh sound quality. Its high-tech closed-loop digital switching amplifiers and resilient power supplies ensure exceptional performance levels rarely heard in custom install audio.

The MI502 offers incredible flexibility for various applications in your home entertainment system. Use it to power the front left and right speakers in a home theater, drive in-wall subwoofers, or even distribute audio to multiple speakers throughout your home. It can also be employed to power outdoor speakers for outdoor gatherings. Rack mountable and equipped with removable mounting brackets, the MI502 seamlessly integrates into your equipment rack.

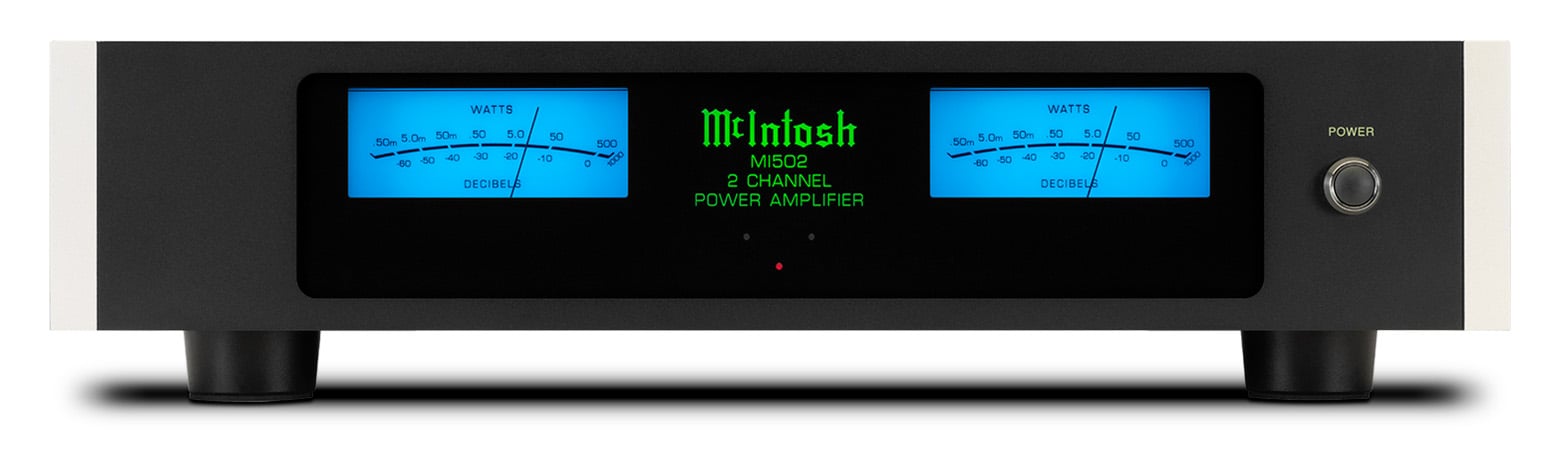

Featuring two blue McIntosh Watt Meters on the front panel, you can easily monitor the power output of each channel. Multi-color LED indicators display the status of each channel, providing a visual representation of the audio performance. The back panel offers balanced and unbalanced inputs to connect the MI502 to your preamplifier, while the standard 5-way speaker binding posts ensure secure connections to your speakers.

The MI502 includes advanced features such as Power Guard signal overload technology to prevent speaker overdriving, Sentry Monitor short-circuit protection for safe operation, Power Control 12 Volt triggering capabilities, and eco-friendly on/off signal sensing. These features enhance convenience and protect your system.

Embodying McIntosh's iconic design elements, the MI502 showcases a black glass front panel, illuminated McIntosh logo, blue Watt meters, and silver trim. Contact your local dealer or integrator to discover how the MI502 can elevate your custom audio installation to new heights of excellence. Experience the McIntosh difference with the MI502 2-Channel Digital Amplifier.

Features

ELECTRONIC SPECIFICATIONS
Power Output per Channel
500 Watts into 8 Ohms
800 Watts into 4 Ohms
Number of Channels
2
Total Harmonic Distortion
0.05%
S/N below rated output
98dB
Dynamic Headroom
8 Ohms: 2.7dB
4 Ohms: 3.7dB
Damping Factor
8 Ohms: >85
4 Ohms: >45
Rated Power Band
20Hz to 20kHz
Frequency Response
+0, -0.9dB from 20Hz to 20,000Hz
CONTROL
Remote Power Control
Yes
Multi-Channel DB25 Cable
N/A
CONNECTIVITY
Speaker Binding Post Type
Standard
GENERAL SPECIFICATIONS
Circuit Configuration
Closed loop digital switching
Circuit Design
Digital
Mono Bridge
N/A
Mono Parallel
N/A
Output Type
Direct Coupled
Meters
Yes
Meter Light Switch
No
Balanced Input
1
Front Panel
Glass with removable rack mounting ears
Illumination
Direct LED
Chassis Style
Black painted steel

Specifications
  • Versatile audio amplifier for custom install applications
  • 500 Watts into 8 Ohms
  • 800 Watts into 4 Ohms
  • 2U rack mountable
  • Signal sensing
  • Power Guard® and Sentry Monitor™
Weight & Dimensions

Unit Dimensions (W x H x D)
17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
Unit Weight
21.5 lbs (9.8 kg)
Shipping Weight
37.9 lbs (17.2 kg)
