McIntosh MI128 8-Channel Digital Amplifier (In-Store Purchases Only & USD Pricing)

Sale price$4,000.00

Tax excluded. Shipping calculated at checkout

PRICE IN USD: MI128

PRICE IN USD

McIntosh MI128 8-Channel Digital Amplifier

NOTE THAT THE PRICE IS IN USD.

The versatile MI128 8-Channel Digital Amplifier can be used in many applications ranging from distributed audio to home theater to stereo listening. It delivers 120 Watts into 8 Ohm speakers or 150 Watts into 4 Ohm speakers via highly sophisticated closed loop digital switching amplifiers that are paired with extremely robust power supplies to produce performance levels that are rarely achieved in distributed audio.

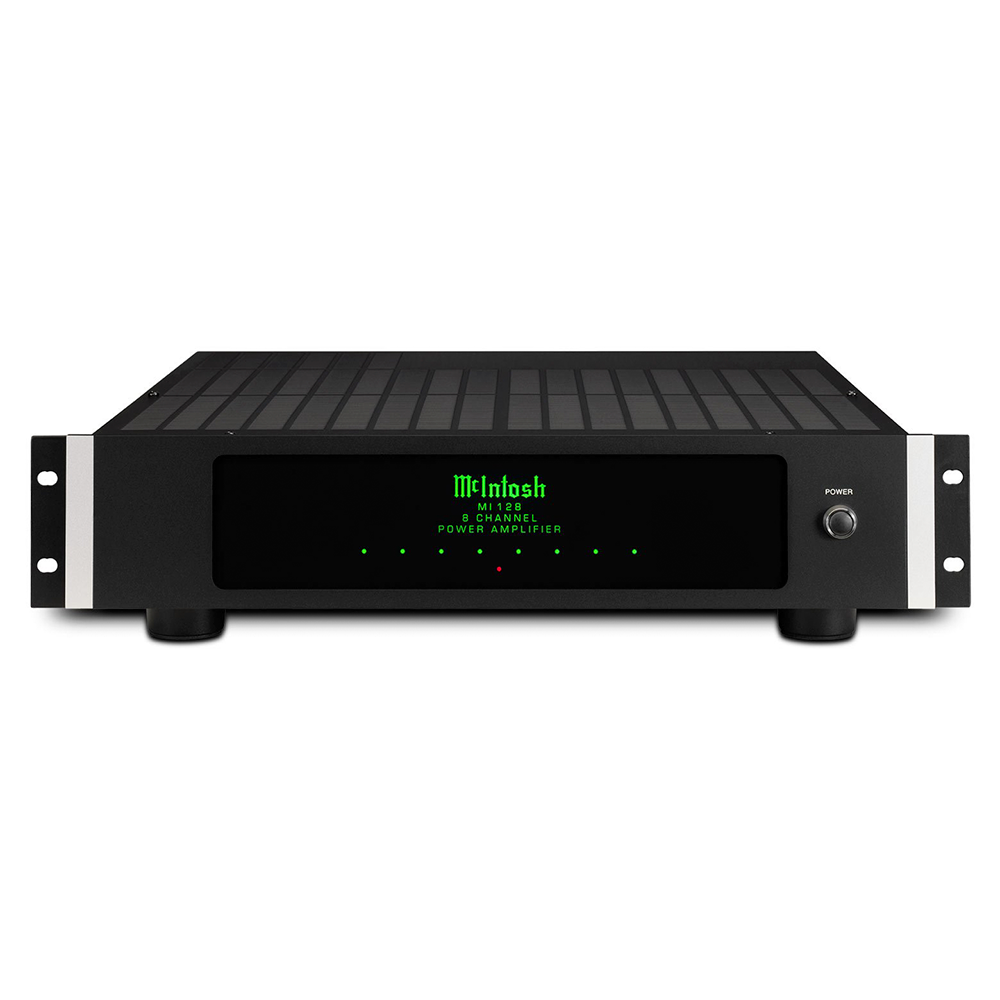

It has installer-friendly physical dimensions and is 2U rack mountable via the included mounting ears (the mounting ears are removable for non-rack installations). As a highly efficient Class D amplifier, it does not require noisy cooling fans to maintain nominal operating temperature.

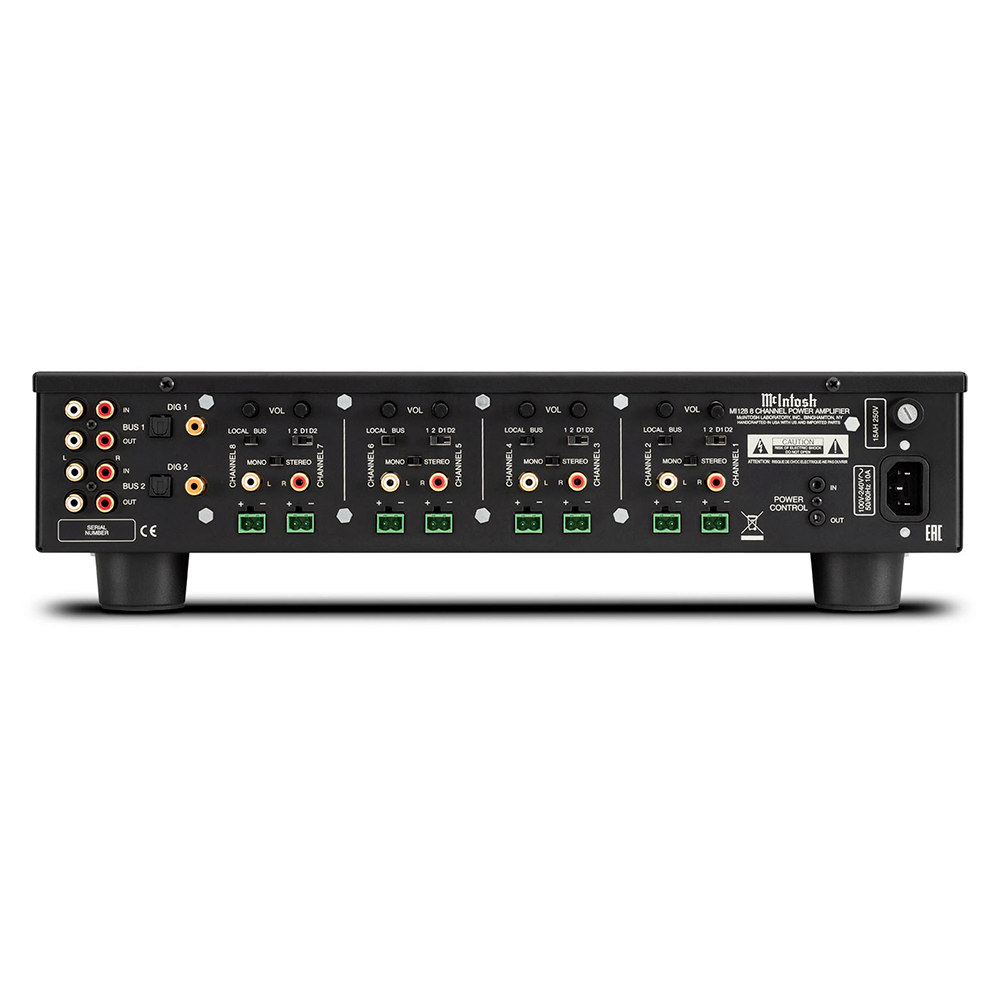

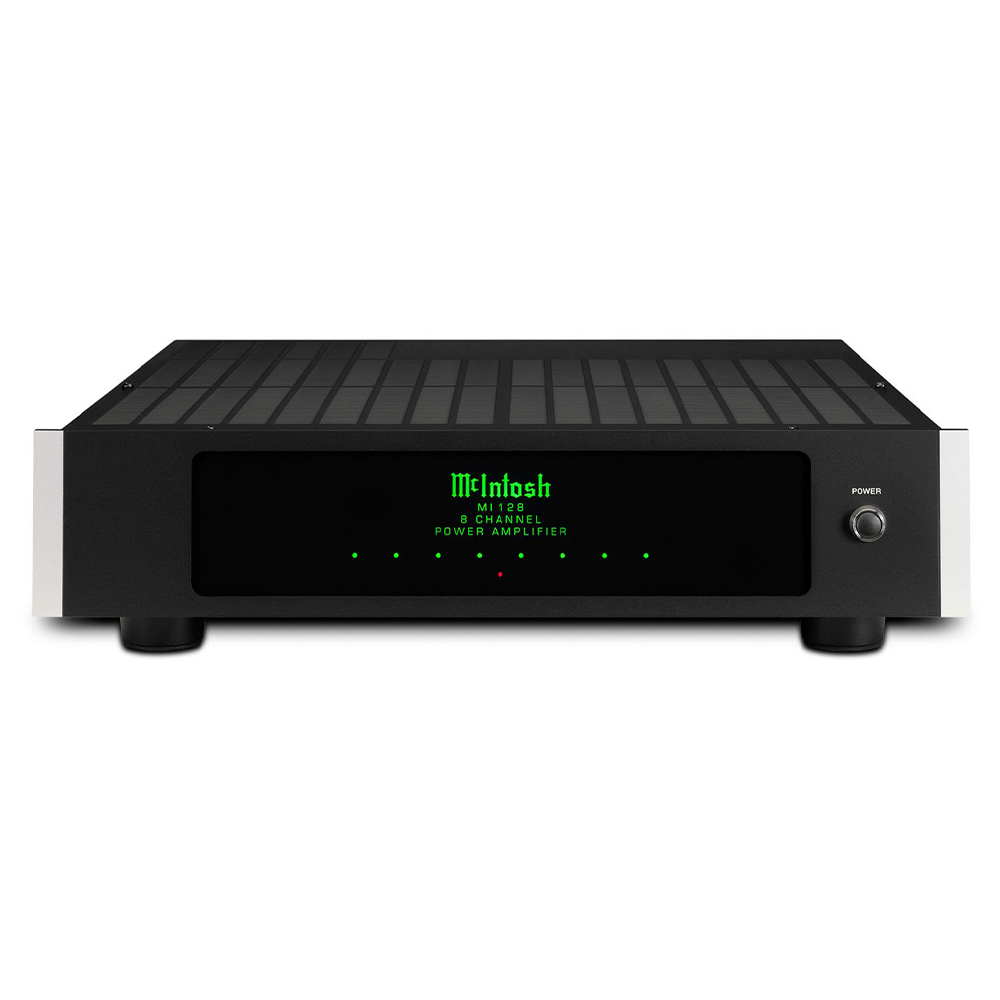

On the front panel, multi-color LED indicators display the status of each channel. On the back are unbalanced inputs for each channel plus 2-pole Phoenix style push-in speaker terminals. Also located on the back are volume controls for volume balancing, along with 2 digital audio inputs (either coax or optical) that can be bussed, and channel summing circuits for easy mono signal distribution.

The MI128 includes many McIntosh design cues including a black glass front panel housing an illuminated McIntosh logo, along with a familiar form factor that is highlighted with silver trim.

***
Features:
- 8-Channel Digital Amplifier
Ideal for multi-zone distributed audio
- 120 Watts into 8 Ohms
- 150 Watts into 4 Ohms
- 2U rack mountable
- Channel summing circuits for mono -signal distribution
- Volume controls for each channel
- Bussable inputs
- Signal sensing
- Power Guard® and Sentry Monitor™

Specifications
  • - Power Output per Channel: 120 Watts into 8 Ohms 150 Watts into 4 Ohms
  • - Number of Channels: 8
  • - Dynamic Headroom: 8 Ohms: 2.1dB 4 Ohms: 3.3dB
  • - Damping Factor: 8 Ohms: >65 4 Ohms: >32
  • - Rated Power Band: 20Hz to 20kHz
  • - Frequency Response: +0, -0.5dB from 20Hz to 20,000Hz
  • - Circuit Configuration: Closed loop digital switching
  • - Circuit Design: Digital
  • - Output Type: Direct Coupled
  • - Front Panel: Glass with removable rack mounting ears
  • - Illumination: Direct LED
  • - Chassis Style: Black painted steel
  • - BTU Rating: 1000 BTU/h
Weight & Dimensions

- Unit Dimensions (W x H x D):
17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
- Unit Weight: 22 lbs (10 kg)
- Shipping Weight: 38.4 lbs (17.4 kg)

Connectivity

- Speaker Binding Post Type:
2-pole Phoenix style push-in speaker terminals
