McIntosh MHA200 Headphone Amplifier (In-Store Purchases Only & USD Pricing)

Sale price$2,500.00

Tax excluded. Shipping calculated at checkout

PRICE IN USD: MHA200

PRICE IN USD

McIntosh MHA200 Headphone Amplifier

NOTE THAT THE PRICE SHOWN IS IN USD.

Treat Your Headphones to McIntosh

Vacuum Tube Amplification.
The MHA200 Vacuum Tube Headphone Amplifier is designed for discerning headphone enthusiasts who demand the most from their headphones. Its versatile set of connectivity options, including balanced inputs and outputs, allows for nearly all headphone types to be connected to enjoy an extraordinary personal listening experience.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

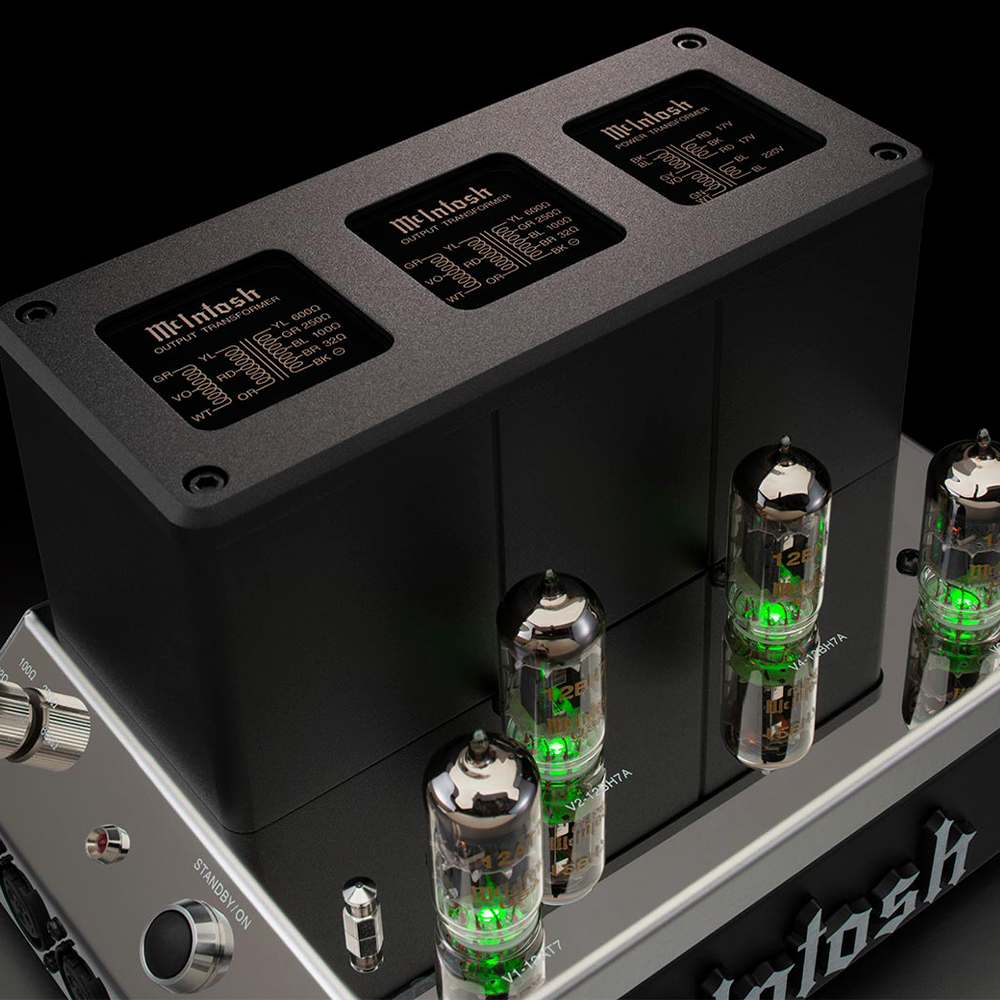

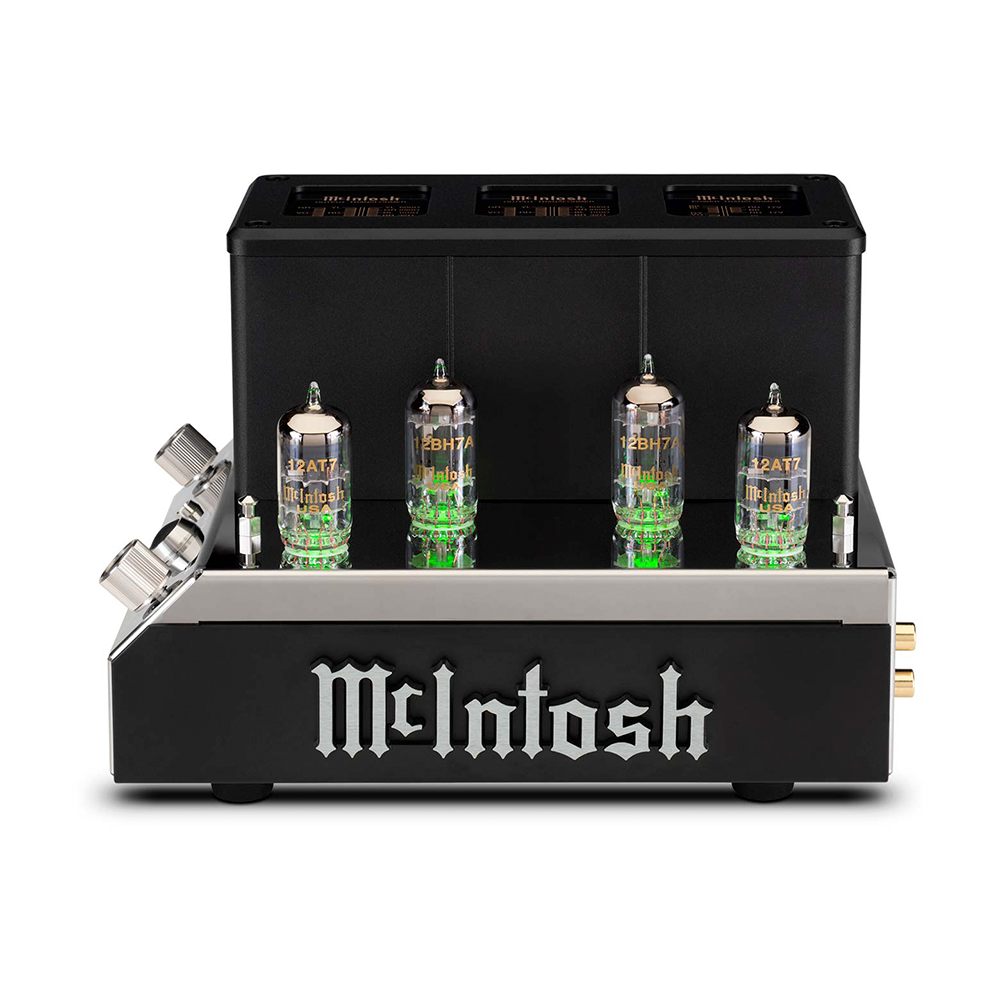

A pair of 12AT7 and 12BH7A dual triode vacuum tubes power the compact MHA200. The 12AT7 vacuum tubes amplify the incoming audio signal while the 12BH7A tubes provide the power to drive the output to your headphones with low distortion. The MHA200 uses a pair of our Unity Coupled Circuit output transformers to deliver pristine audio to your ears. Our Unity Coupled Circuit is the same technology McIntosh was founded on in 1949 and is still used in our vaunted full-size home audio vacuum tube amplifiers such as the timeless MC275 and the more recent MC1502. Indeed, the MHA200 shares many physical design traits with the aforementioned vacuum tube amplifiers.

We custom designed and manufactured the output transformers to match the tube amplifier section to the headphone output section in order to ensure maximum power transfer for various headphone loads. Instead of having to adapt to the impedance of the headphones with voltage gain in the input stage, the Unity Coupled Circuit output transformers' secondary windings ensure the full power of the MHA200 is available regardless of the impedance of your headphones. A custom, high-performance, and highly efficient toroidal power transformer with low mechanical hum and a low magnetic field, which helps reduce electrical noise, provides clean power to the amplifier.

***
Features:
2-Channel Vacuum Tube Headphone Amplifier
- Compact footprint: just 6-1/8" (15.6cm) x 9-1/8" (23.2cm)
-4 selectable headphone impedance ranges
- Balanced and unbalanced analog inputs
-Balanced stereo or dedicated Left & Right outputs

Specifications
  • - Rated Power Band: 20Hz to 20kHz
  • - Intermodulation Distortion: 0.04% Typical 0.4% Maximum
  • - Dynamic Headroom: 1.5dB
  • - Frequency Response: +0, -0.5dB from 20Hz to 20,000Hz
  • - Sensitivity (Unbalanced): 1.0 Vrms
  • - Sensitivity (Balanced): 2.0 Vrms
  • - Signal To Noise Ratio: 94dB
  • - Damping Factor: >150
  • - Voltage Gain: 12dB at 32 Ohms 17dB at 100 Ohms 21dB at 250 Ohms 25dB at 600 Ohms
  • - Power Requirement: 120V 50/60Hz, 1.5A
  • - Standby Power Requirement: <0.5 Watts
  • - Output Type: Unity Coupled Output Transformer
  • - Headphone Power Output: 500mW
  • - Headphone Output Impedance: 32-100 Ohms 100-250 Ohms 250-600 Ohms 600-1,000 Ohms
Weight & Dimensions

- Unit Dimensions (W x H x D):
6-1/8" (15.6cm) x 5-3/4" (14.6cm) x 9-1/8" (23.2cm)
- Unit Weight; 10.5 lbs (4.8 kg)
- Shipping Weight: 12 lbs (5.5 kg)

Connectivity

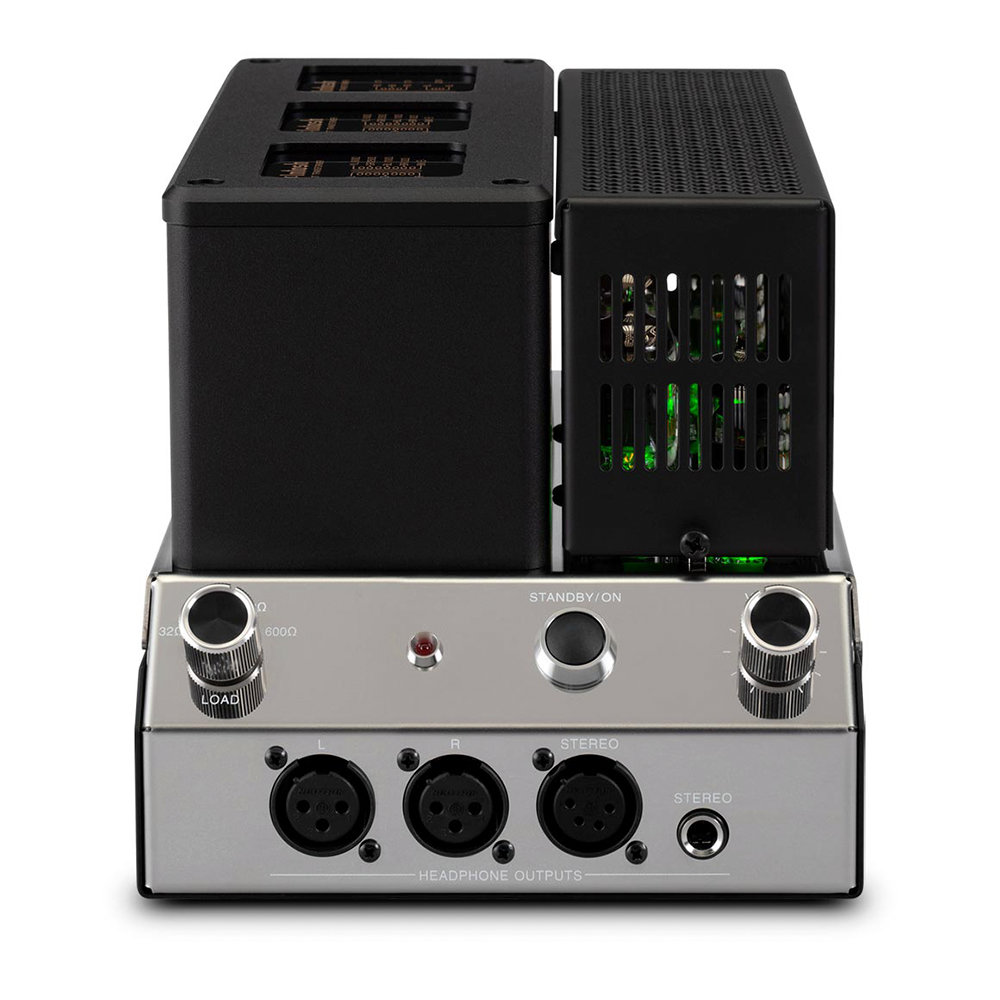

- Headphone Output:
One pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output;
One 4-pin balanced XLR connector for balanced stereo output;
One 1/4" stereo headphone jack

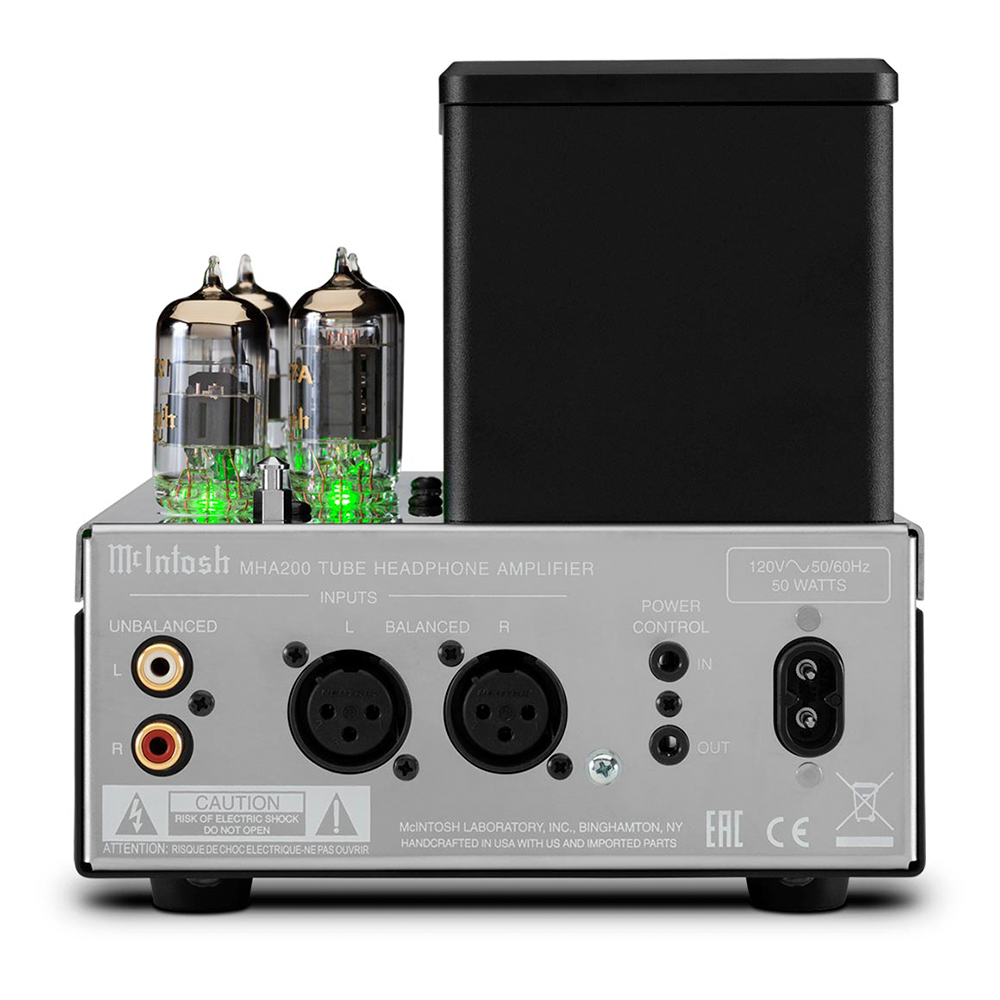

- Balanced Input: 1
- Unbalanced Input: 1
