McIntosh MA5300 Integrated Amplifier (In-Store Purchases Only & USD Pricing)

Sale price$6,000.00

Tax excluded. Shipping calculated at checkout

PRICE IN USD: MA5300

PRICE IN USD

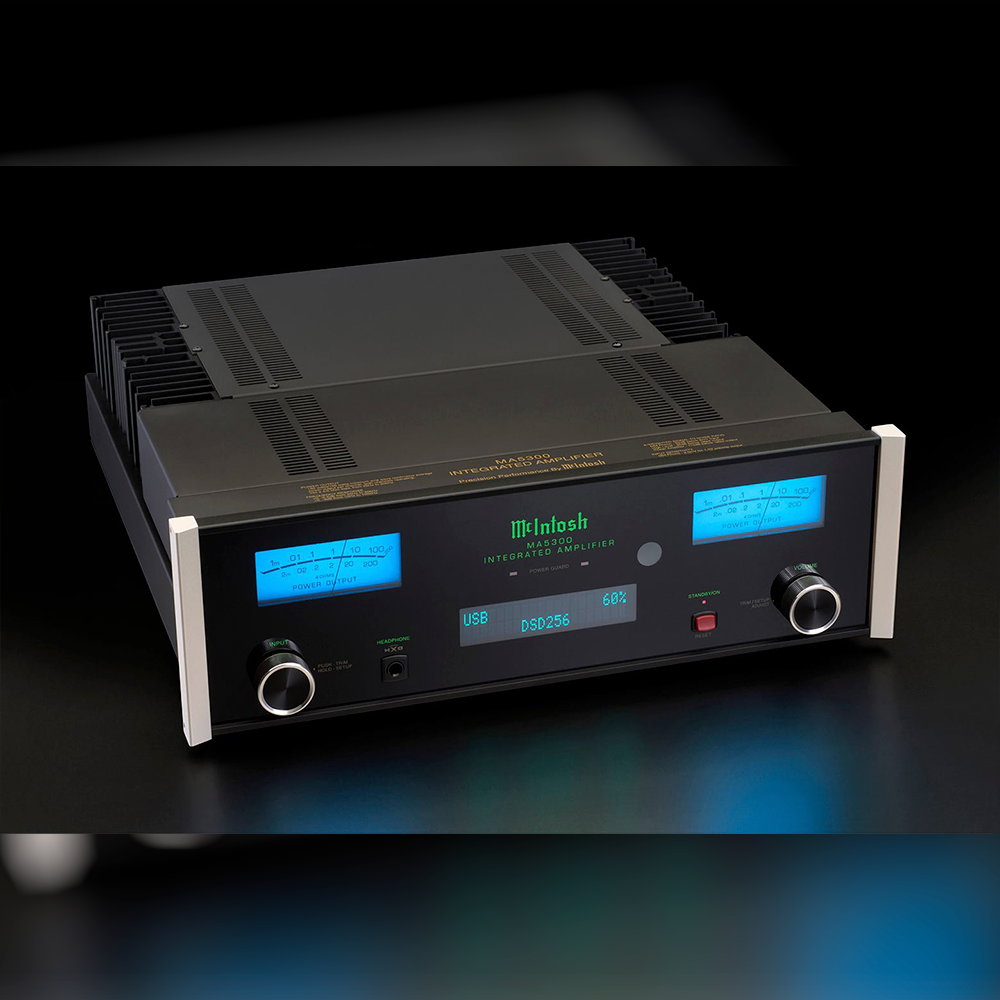

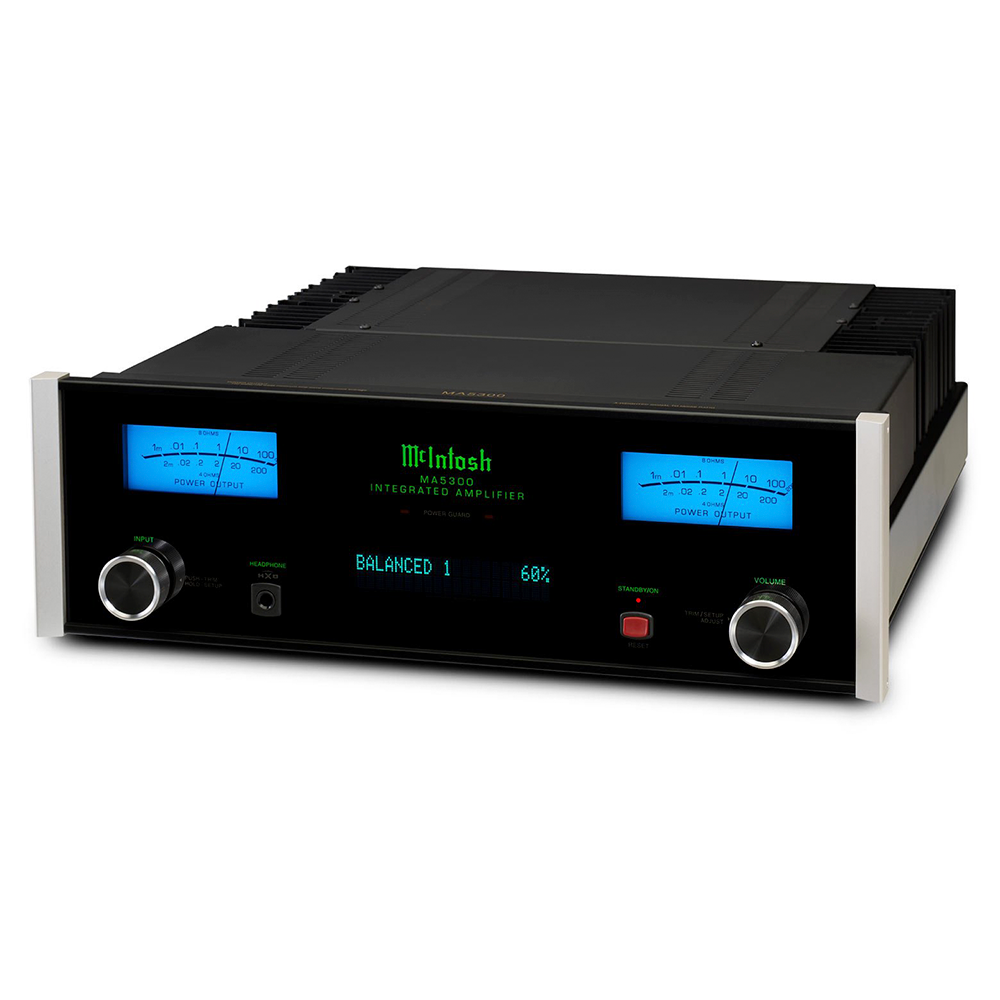

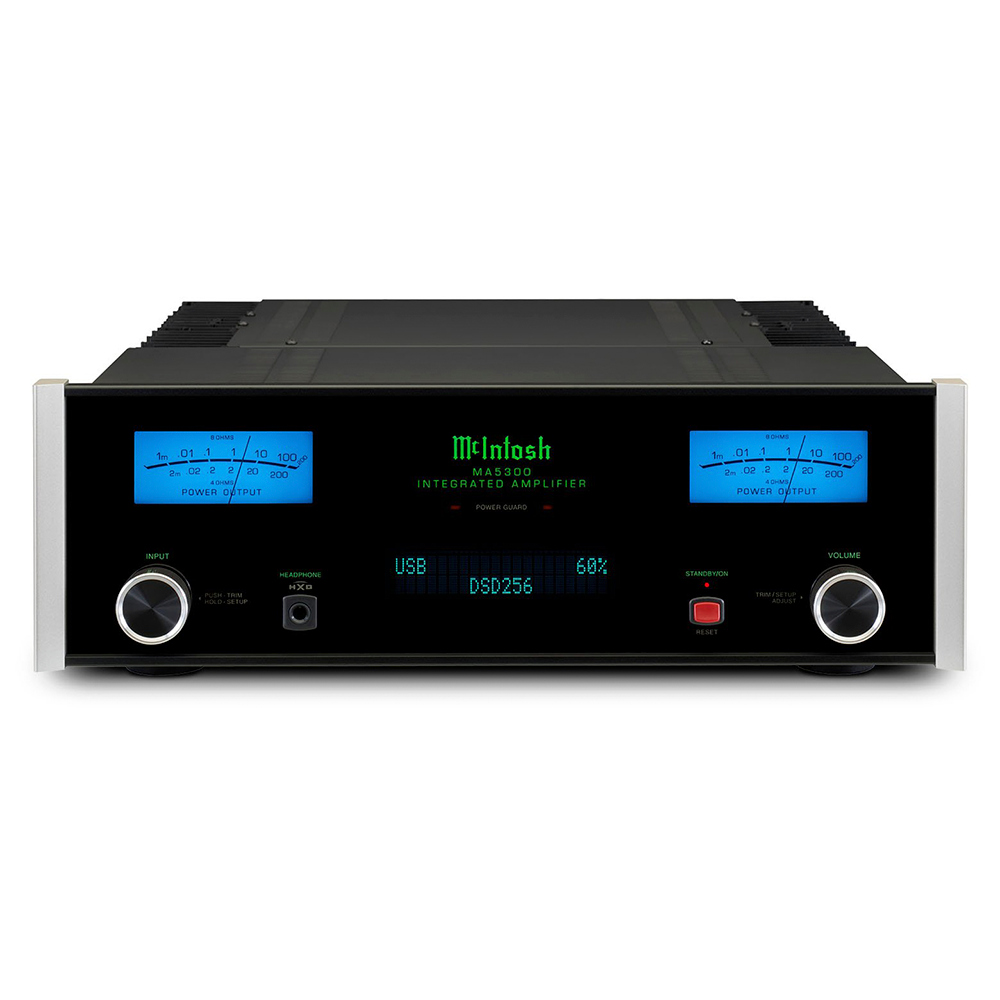

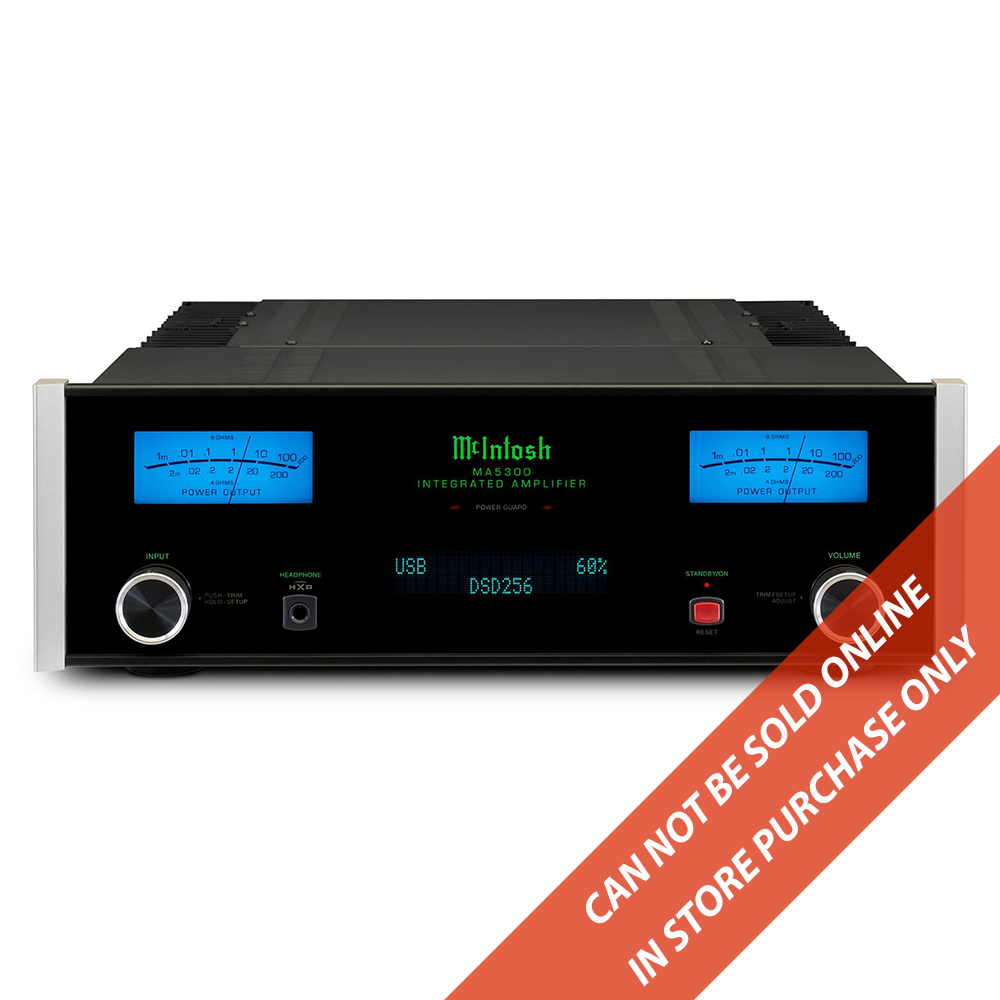

McIntosh MA5300 Integrated Amplifier

NOTE THAT THE PRICE SHOWN IS IN USD.

The MA5300 Integrated Amplifier is proof that big sound can come in small packages. It is our smallest solid state integrated amplifier in terms of both power output and physical size, making it an ideal choice for smaller spaces or for someone just beginning to assemble a home audio system. It’s a direct coupled amplifier that delivers 100 Watts per channel into 8 Ohm speakers or 160 Watts per channel into 4 Ohm speakers. New dual scale blue Watt meters give an accurate readout of power output for both 4 and 8 Ohm impedances.

The MA5300 is one of many McIntosh products to receive Roon Tested designation from Roon Labs. As a Roon Tested partner, McIntosh has provided equipment to Roon for testing with a variety of different operating systems and computers, and shared information about its design and capabilities.

Rounding out the MA5300 are time tested McIntosh technologies including Power Guard®, Sentry Monitor™, Home Theater PassThru, High Drive headphone amplifier with Headphone Crossfeed Director (HXD®), and gold-plated speaker binding posts. The classic McIntosh aesthetic of blue Watt meters, a black glass front panel with aluminum end caps, control knobs and illuminated logo complete the MA5300.

***
Features:
2-Channel Integrated Amplifier
- 100 Watts into 8 Ohms
- 160 Watts into 4 Ohms
- Comes with DA1 Digital Audio Module installed
- Optional dealer installed upgrade to DA2 Digital Audio Module available

Specifications
  • - Power Output per Channel: 100 Watts into 8 Ohms 160 Watts into 4 Ohms
  • - Number of Channels: 2
  • - Speaker Impedance: 4 or 8 Ohms
  • - Rated Power Band: 20Hz to 20kHz
  • - Dynamic Headroom: 1.8dB
  • - Frequency Response +0,-0.5dB: 20Hz to 20kHz
  • - Frequency Response, +0, -3dB: 10Hz to 100kHz
  • - Sensitivity High Level (Balanced / Unbalanced): 0.5V/0.25V
  • - Damping Factor: 8 Ohms: >200 4 Ohms: >100
  • - Maximum Output (Balanced / Unbalanced): 8V Unbalanced
  • - Output Type: Direct Coupled
  • - McIntosh Monogrammed Heatsinks™: Yes
  • - Power Requirement: 120V 50/60Hz, 2.3A
  • - Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balance
Weight & Dimensions

- Unit Dimensions (W x H x D):
17-1/2" (44.45cm) x 6" (15.2cm) x 18-3/4" (47.6cm)
- Unit Weight: 38 lbs (17.2 kg)
- Shipping Weight: 55.5 lbs (25.2 kg)

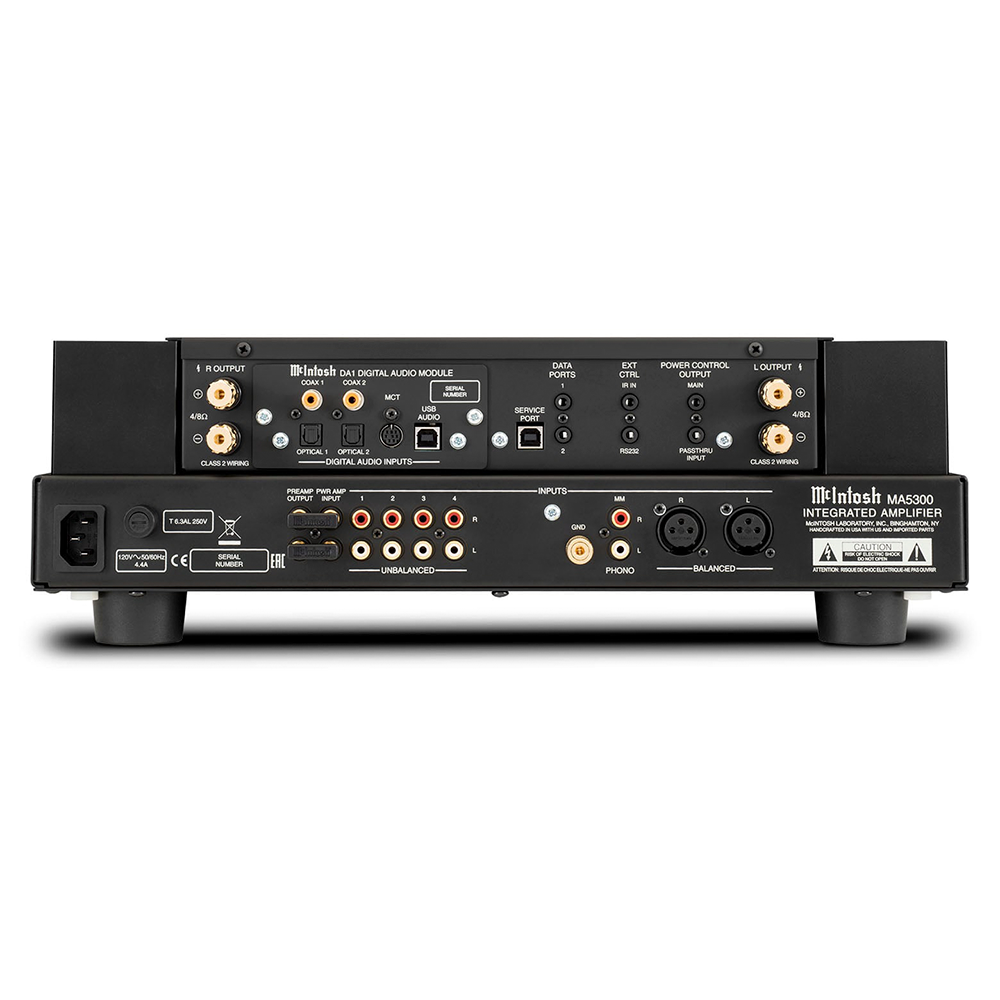

Connectivity

- Balanced Input: 1
- Unbalanced Input: 4
- Phono Input Moving Magnet: 1 (fixed loading)
- Upgradeable Digital Audio Module:
Yes: DA1
- Digital Coaxial Input: 2
- Digital Optical Input: 2
- Digital MCT Input: 1
- Digital USB Input: 1
- Unbalanced Variable Output: 1
- Home Theater PassThru: Yes
- Unbalanced Analog Connector Type: - Standard
- Speaker Binding Post Type: Standard
Service Port: 1
