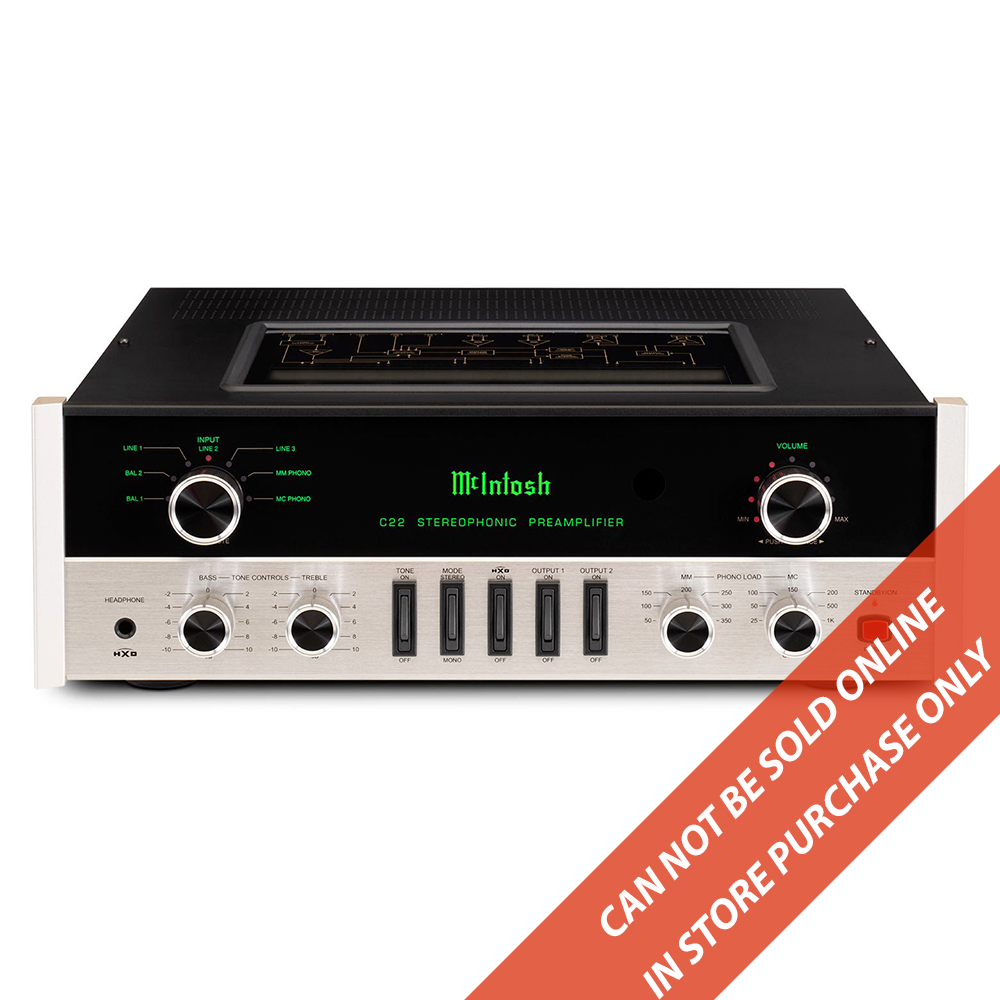

McIntosh C22 Mk V Vacuum Tube Preamplifier (In-Store Purchases Only)

Sale price$9,000.00

Tax excluded. Shipping calculated at checkout

PRICE IN CAD: C22 Mk V

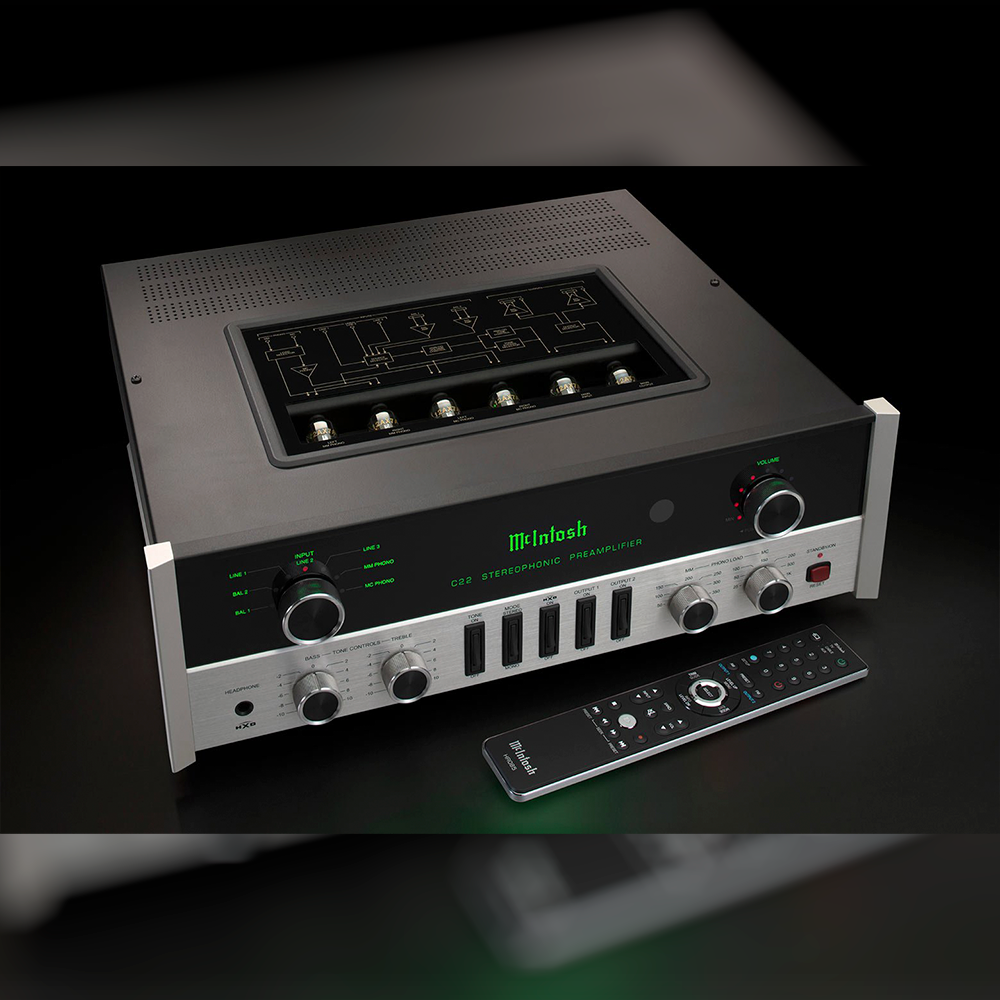

McIntosh C22 Mk V Vacuum Tube Preamplifier

This newest version of our C22 Vacuum Tube Preamplifier – the Mk V – is the direct replacement to our highly regarded C70 Limited Edition 70th Anniversary Vacuum Tube Preamplifier, which commemorated our 70th Anniversary that took place in 2019. The new C22 Mk V is the latest McIntosh vacuum tube preamplifier to carry the cherished C22 model number. It has all the performance of the acclaimed C70 but with the hallowed C22 moniker and its signature glass and aluminum front panel design.

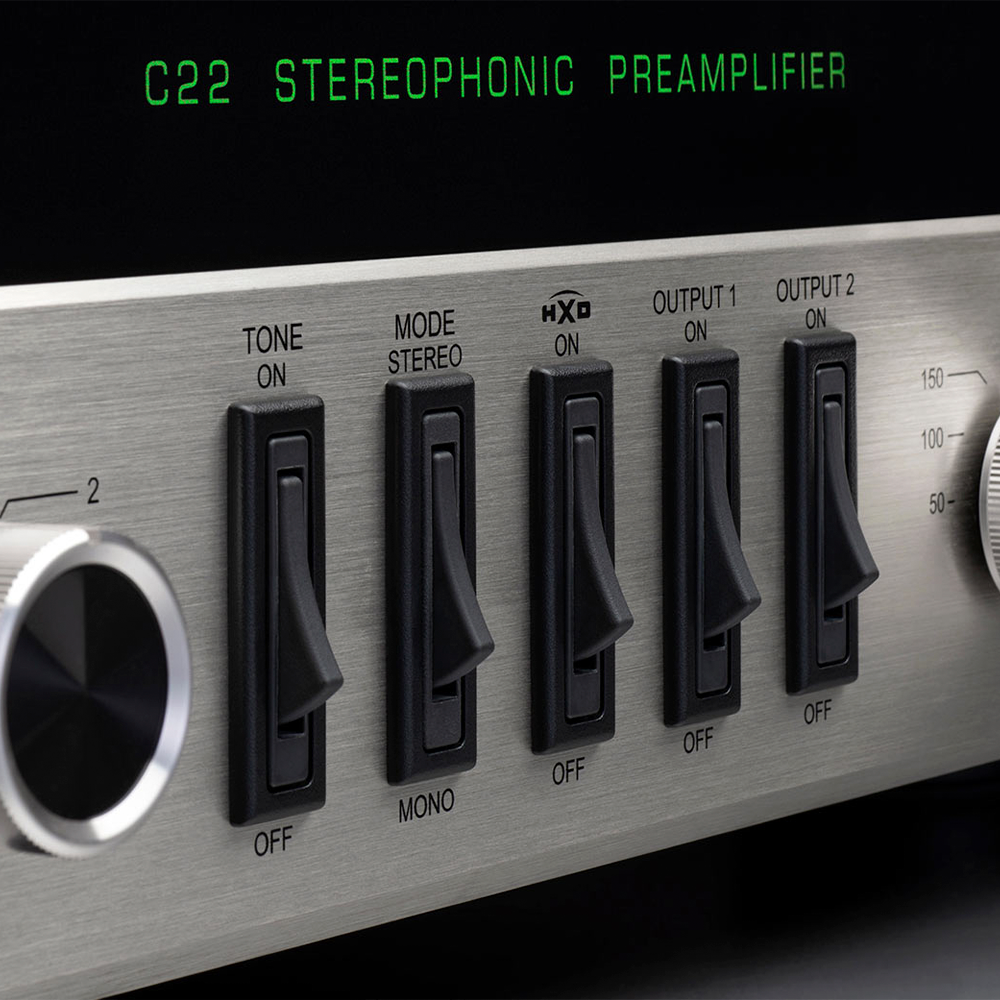

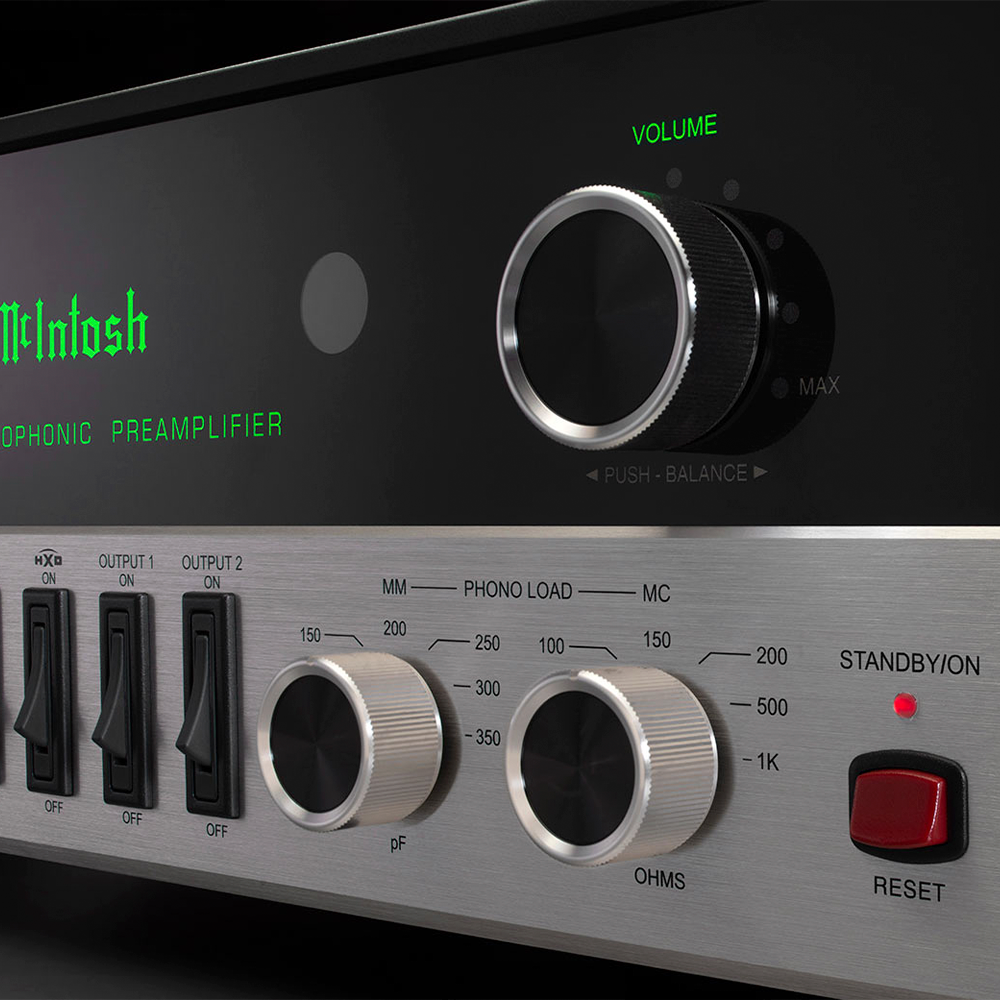

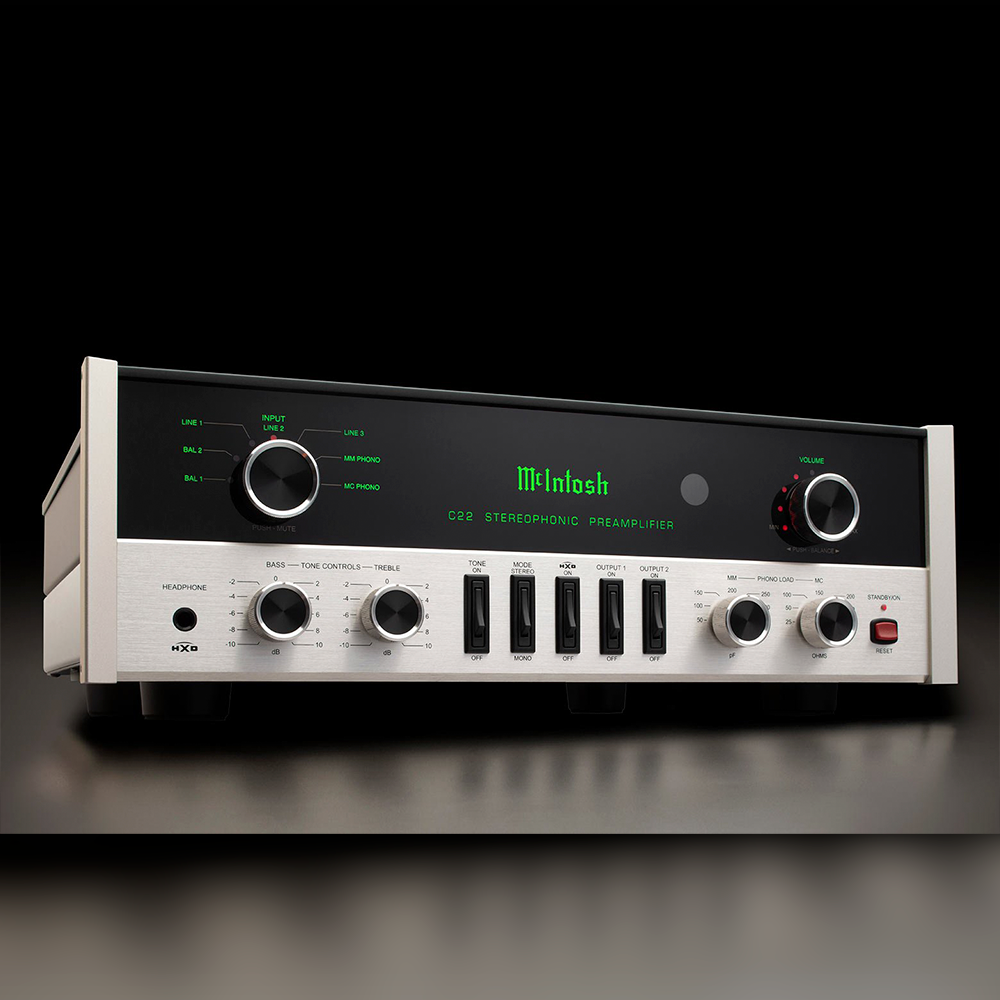

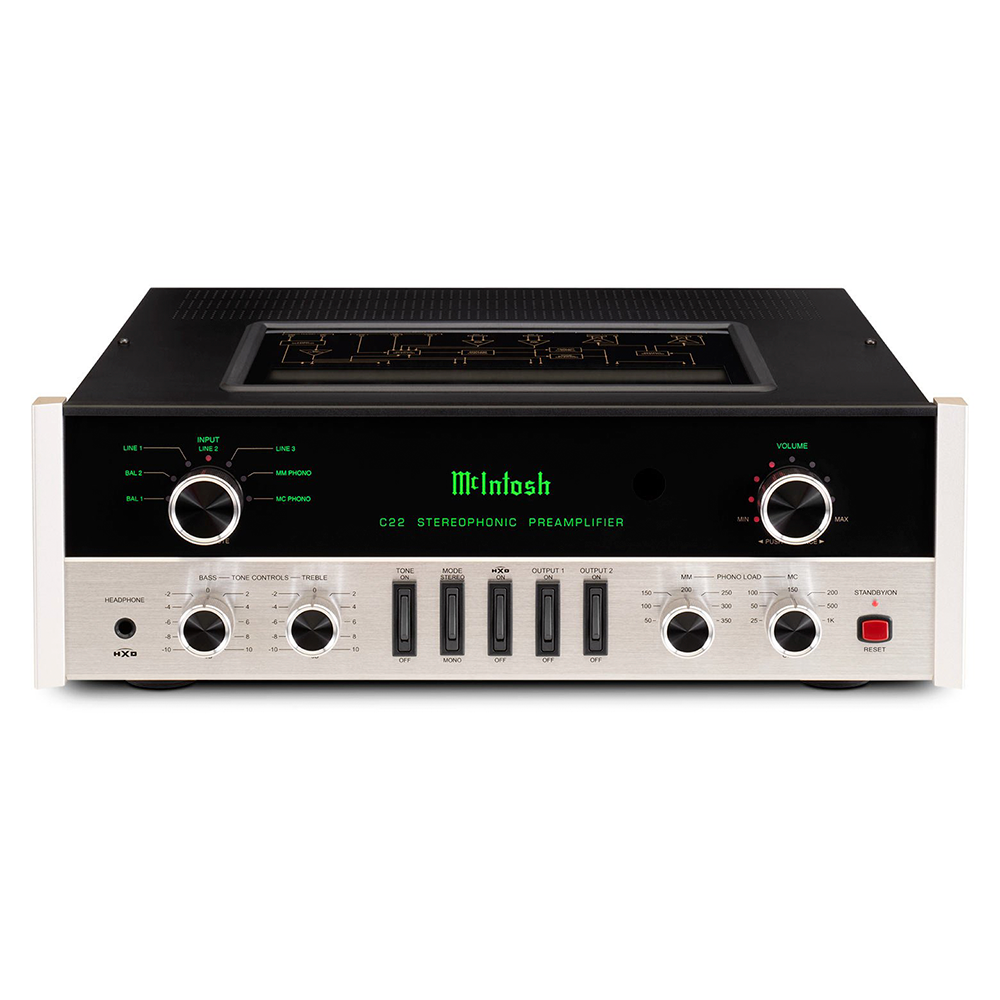

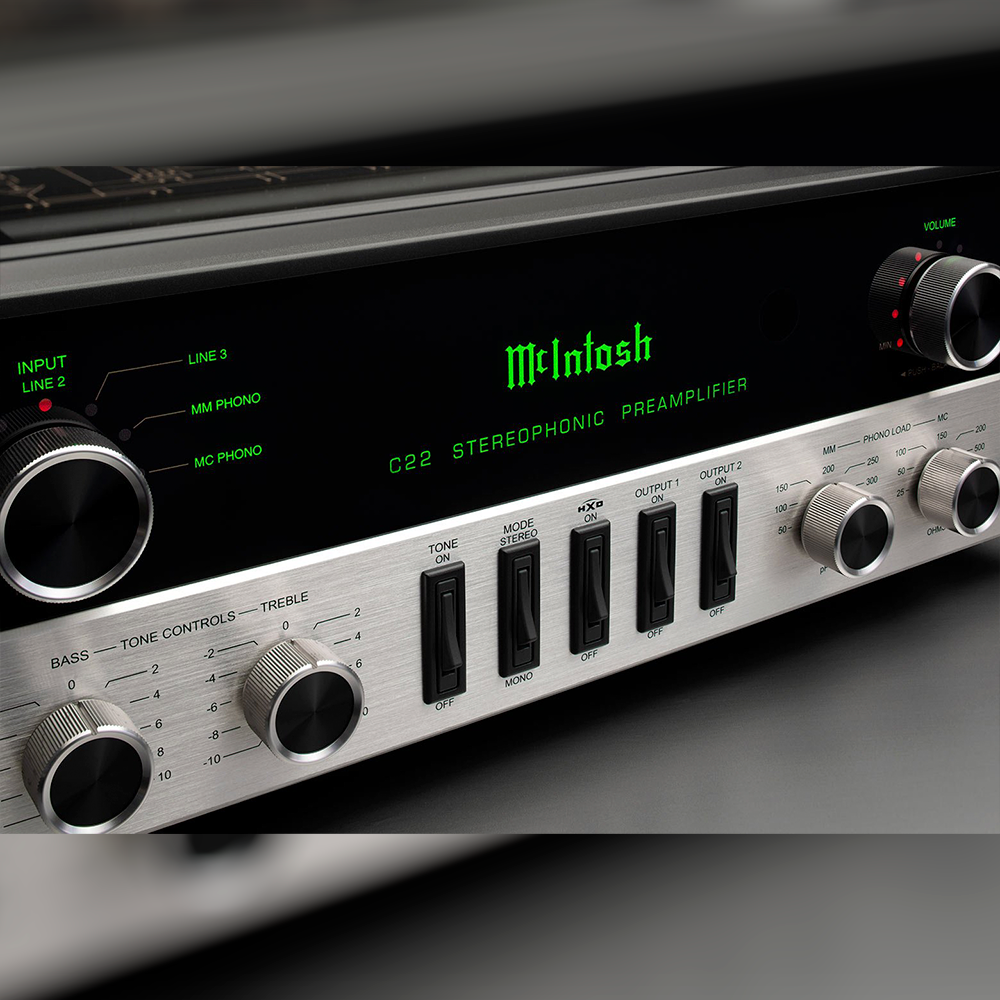

Bypassable bass and treble tone controls are located on the front panel and can be adjusted in 2dB increments via rotary knobs. Impedance and capacitance for the phono inputs can also be adjusted via separate rotary knobs. In addition to setting the listening level, the volume knob can also be used to adjust the relative volume balance between the left and right audio channels.

Our Power Control technology is included with four ports that can automatically turn other connected McIntosh components such as amplifiers, CD players or turntables, on and off. Data ports are also present and can control basic functions of connected McIntosh source components via the included remote control.
***
Features:
2-Channel Vacuum Tube Preamplifier Mk V
- All analog design and a retro look

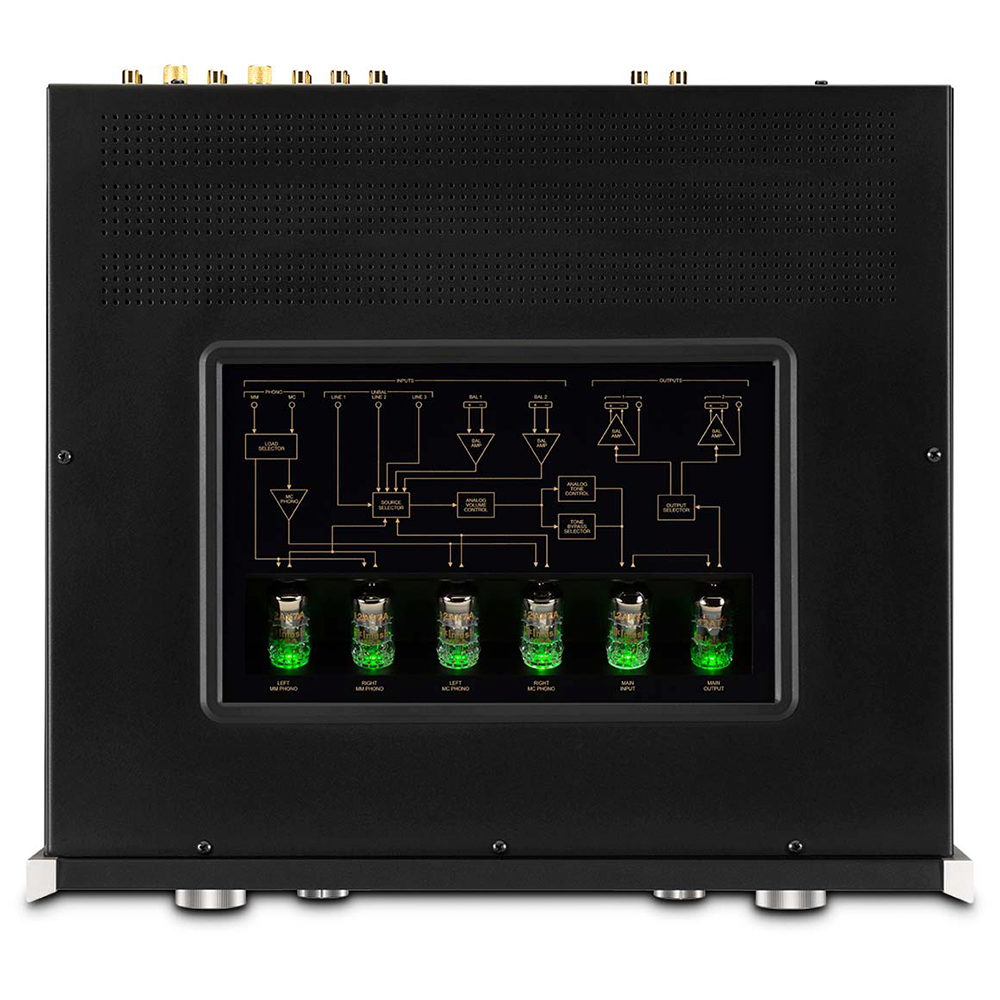

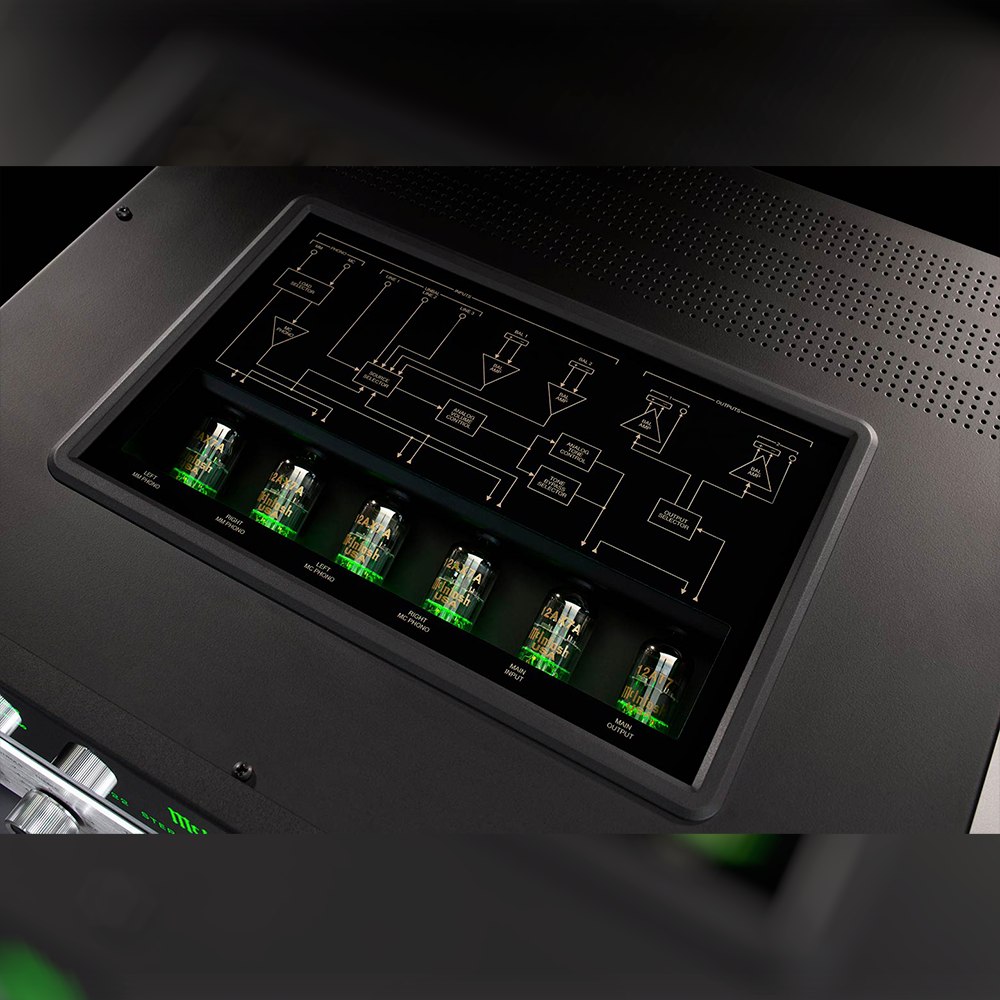

- (5) 12AX7A and (1) 12AT7 vacuum tubes
- Moving Coil and Moving Magnet phono inputs

Specifications
  • - Number of Channels 2
  • - Frequency Response: +0, -0.5dB from 20Hz to 20kHz +0, -3dB from 15Hz to 100kHz
  • - Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
  • - Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
  • - Signal To Noise Ratio (High Level): 100dB
  • - Voltage Gain (High Level): 15dB
  • - Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
  • - Multi-Chassis or Single: Single, two layer
  • - Power Consumption (On): 50 Watts
Weight & Dimensions

- Unit Dimensions (W x H x D):
17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
- Unit Weight: 25 lbs (11.3kg)
- Shipping Weight: 41.4 lbs (18.8kg)

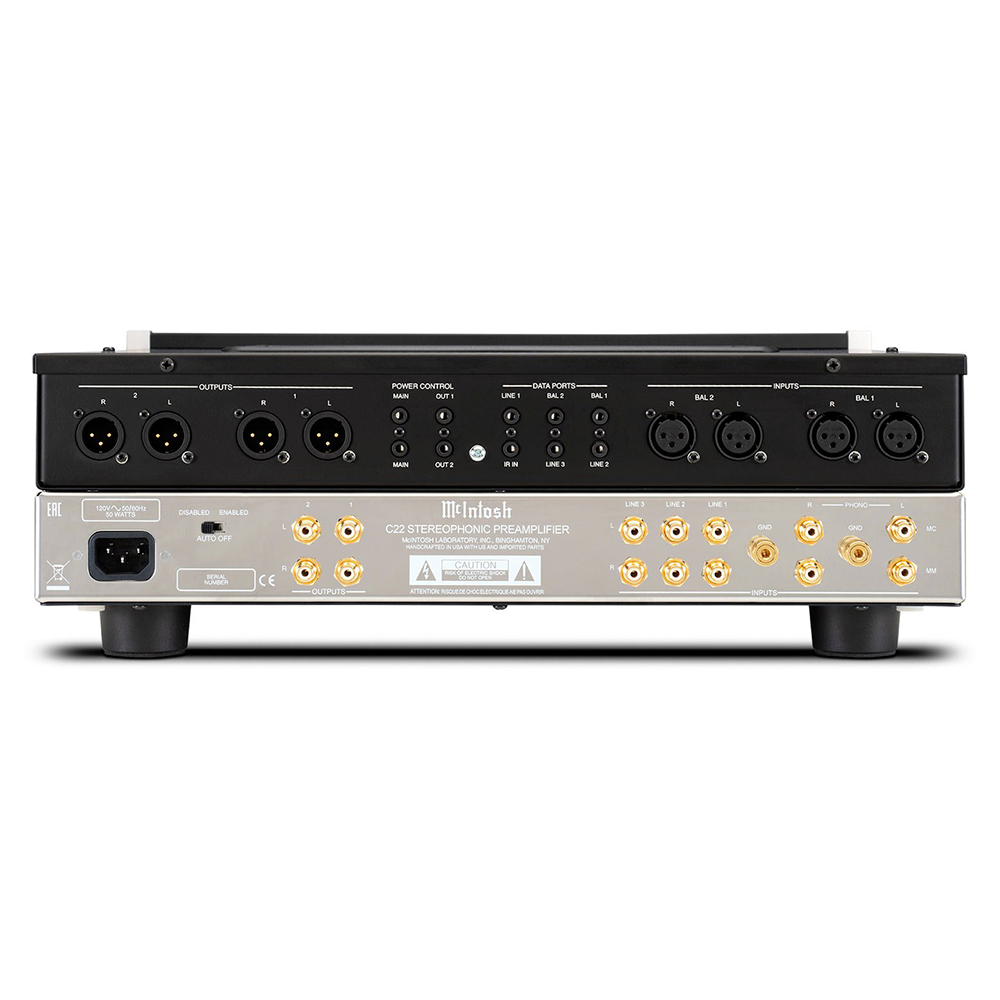

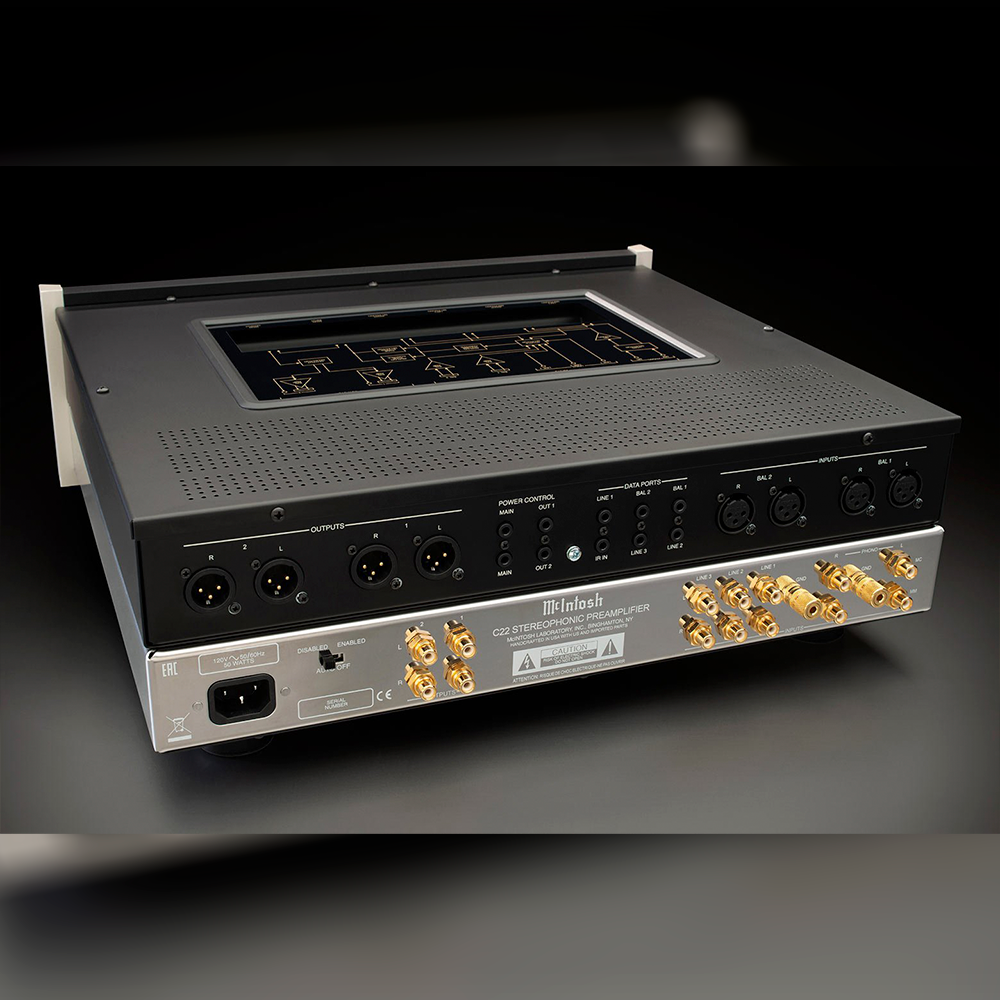

Connectivity

- Balanced Input: 2
- Unbalanced Input: 3
- Phono Input Moving Coil: 1 (adjustable)
- Phono Input Moving Magnet: 1 (adjustable)
- Balanced Variable Output: 2
- Unbalanced Variable Output: 2
