Frequency Response
51 - 25,000 Hz ±3dB
Tweeter Dispersion (horizontal x vertical)
30 x 80 degrees
Recommended Amplifier Power
Range 50–300 Watts
Sensitivity
91dB @2.83V/ 1 meter
Impedance
4 ohms. Compatible with 8 ohms

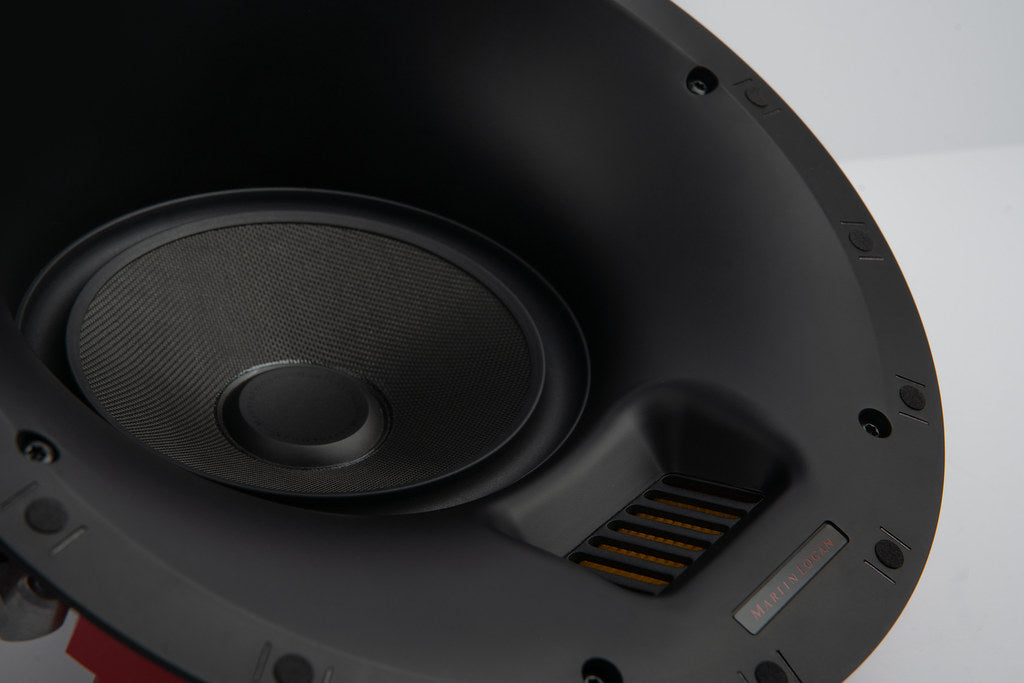

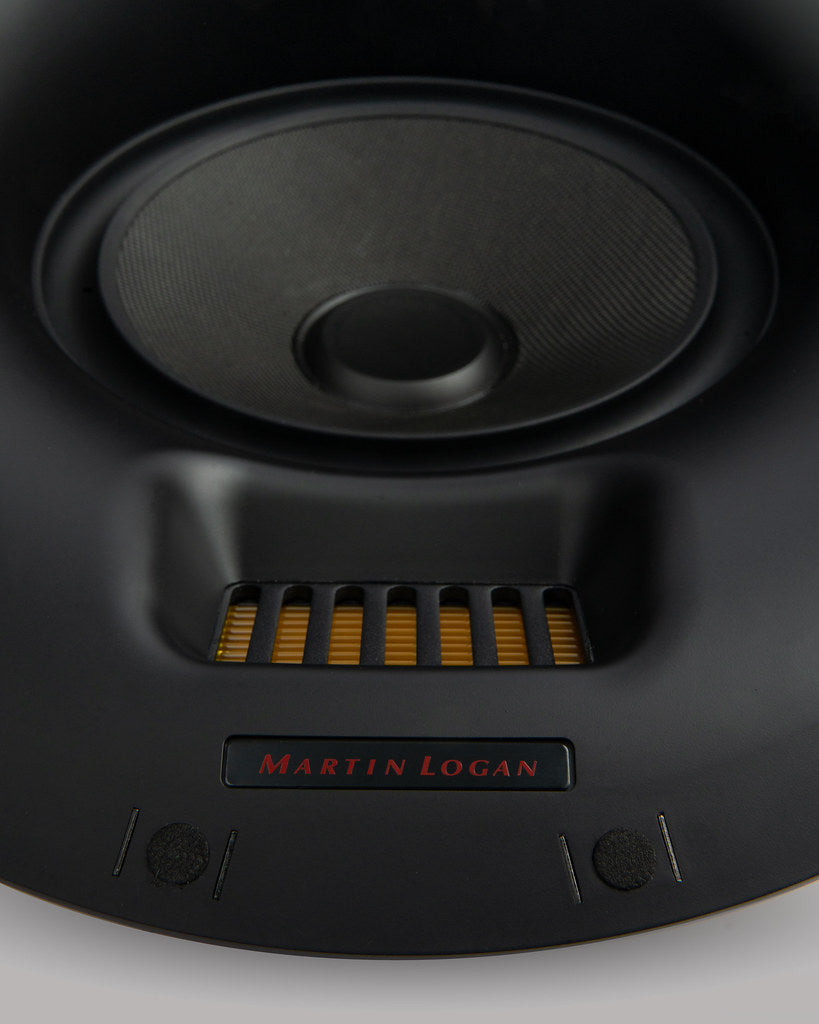

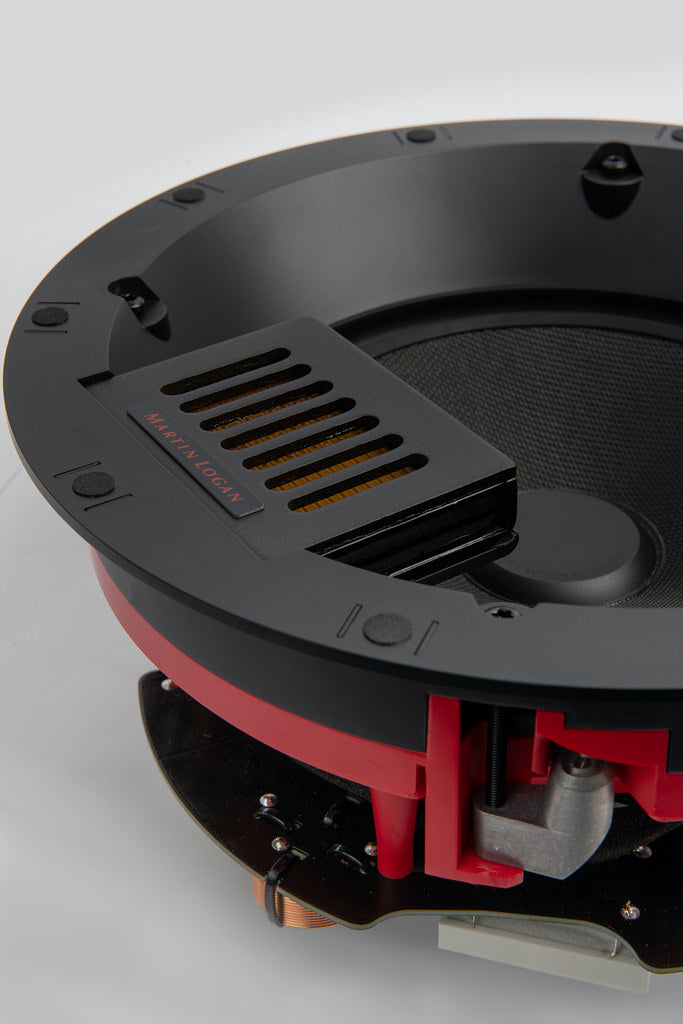

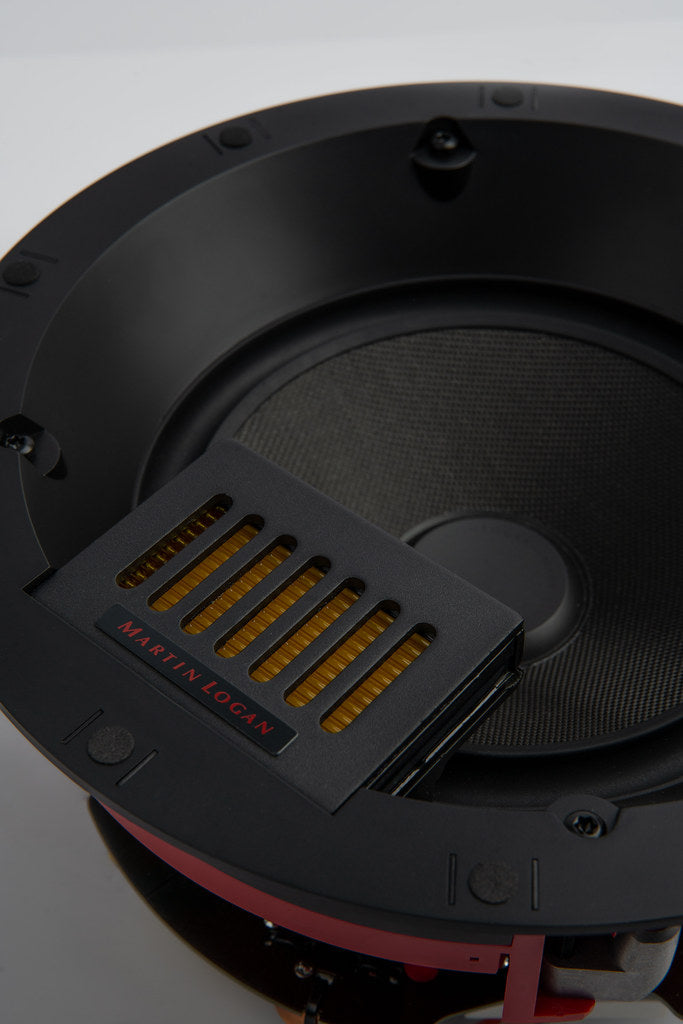

High Frequency Driver
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
Crossover Frequency
2,270 Hz
Crossover Type
2 way

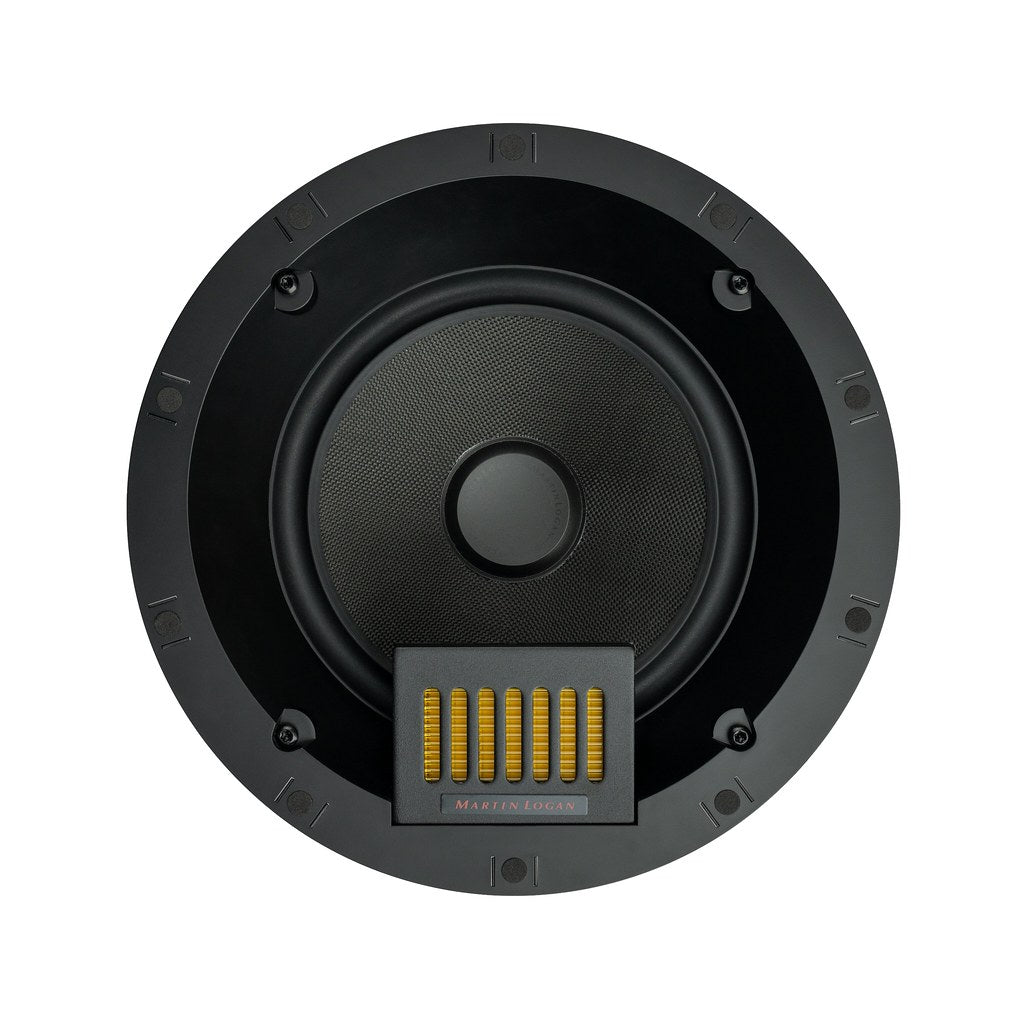

Driver Configuration

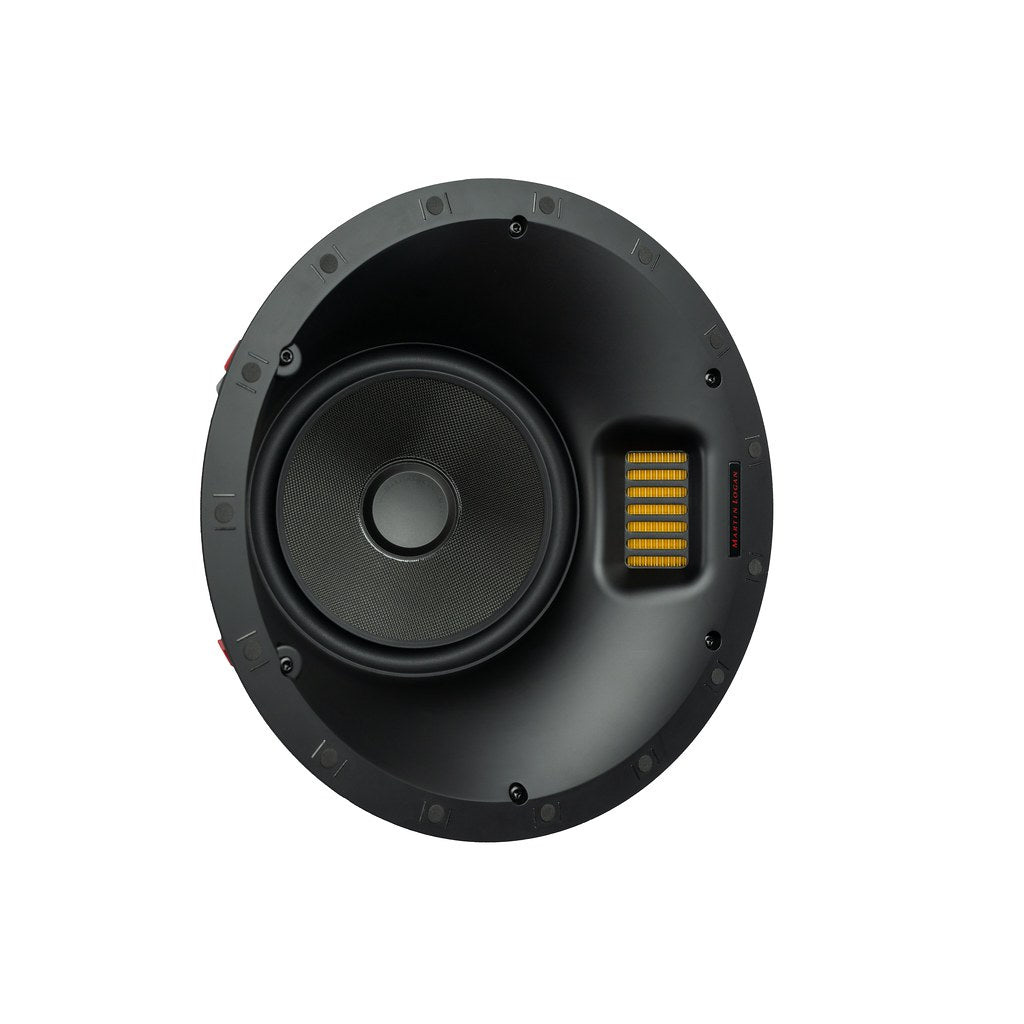

1 x 1.27” x 2.75” FMT, 1 x 8” Woofers
Woofer Specifications
One 8” (20.32 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
Cabinet Material

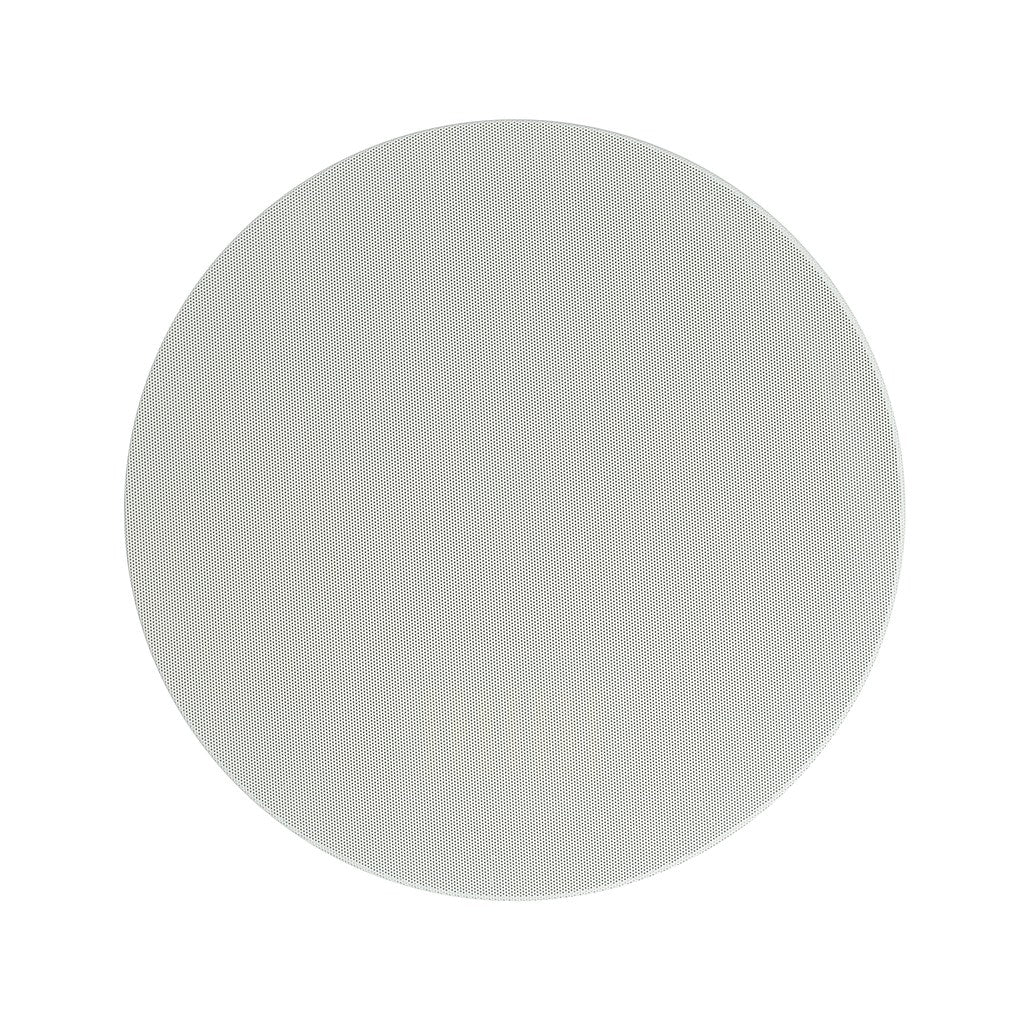

Black w/ White Paintable Grill

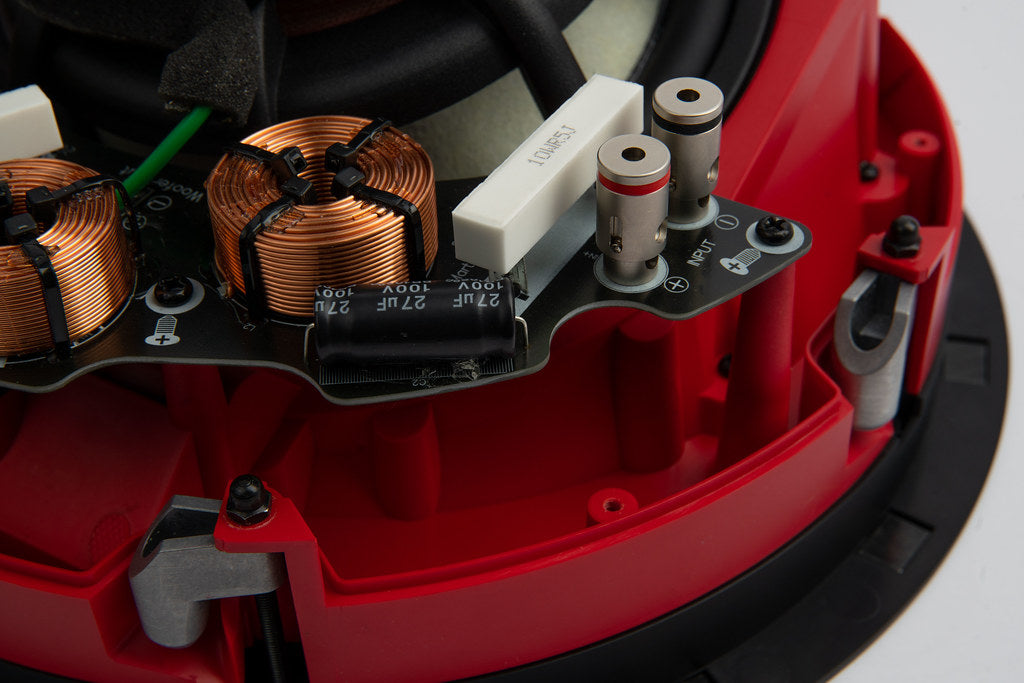

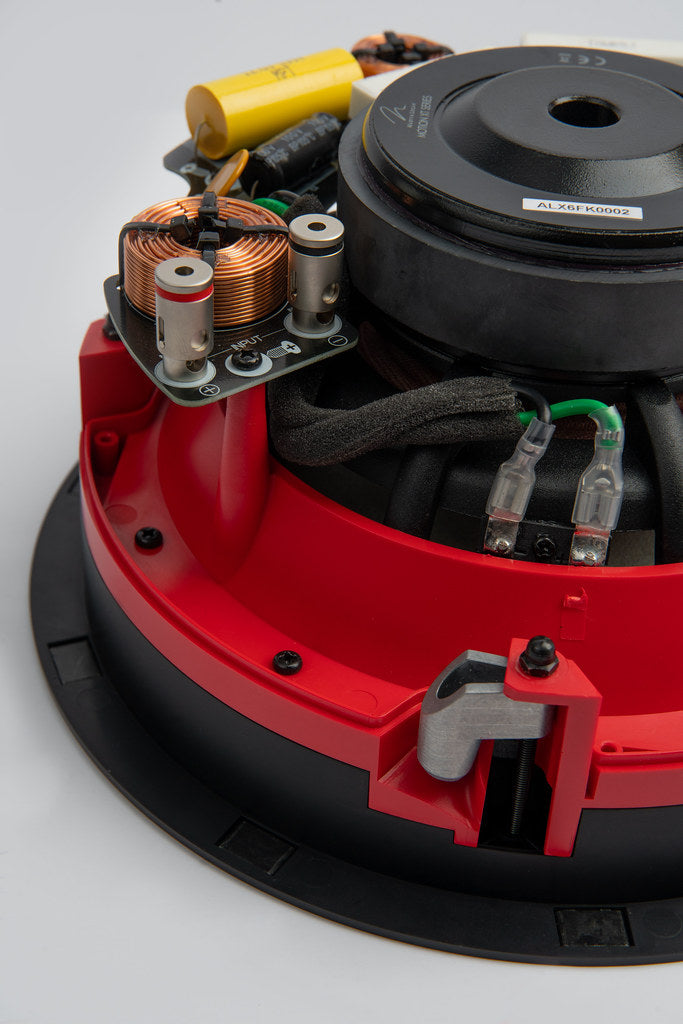

Connector
Push style

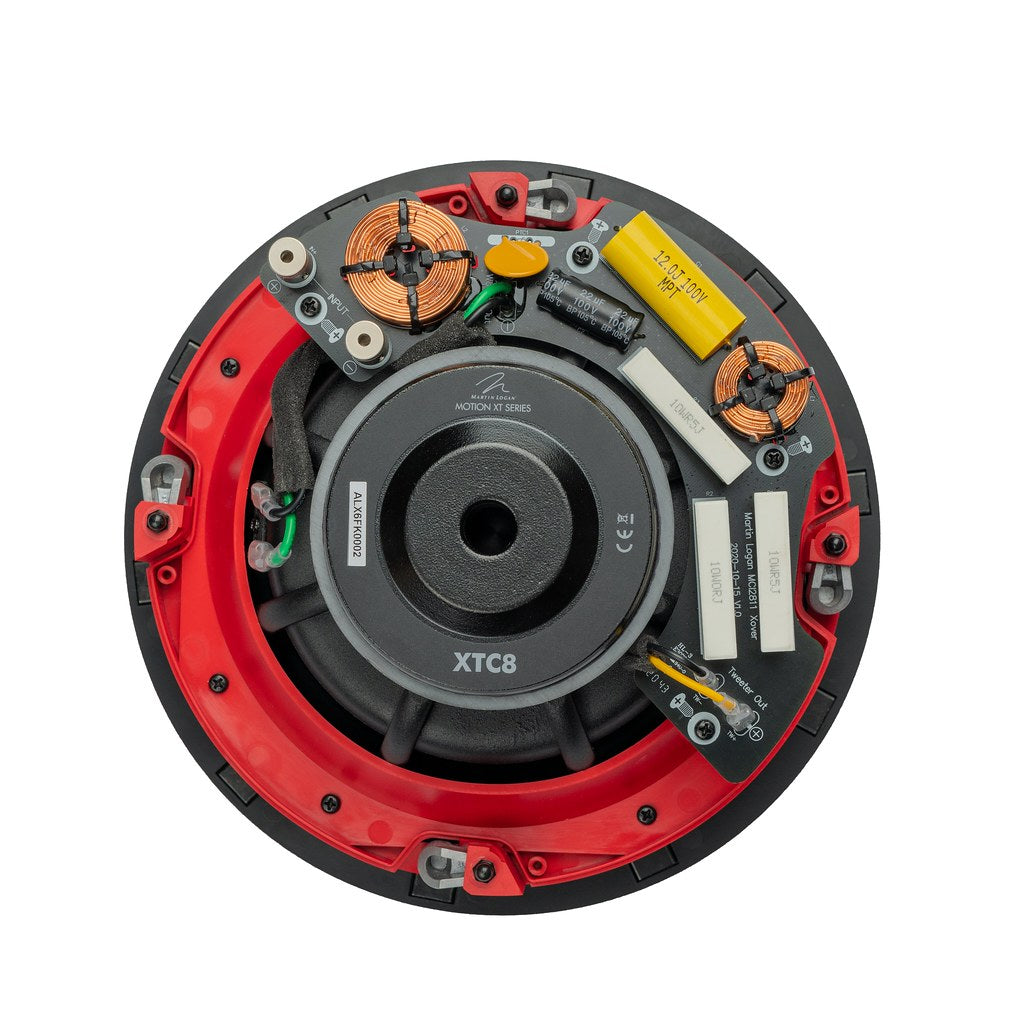

Components

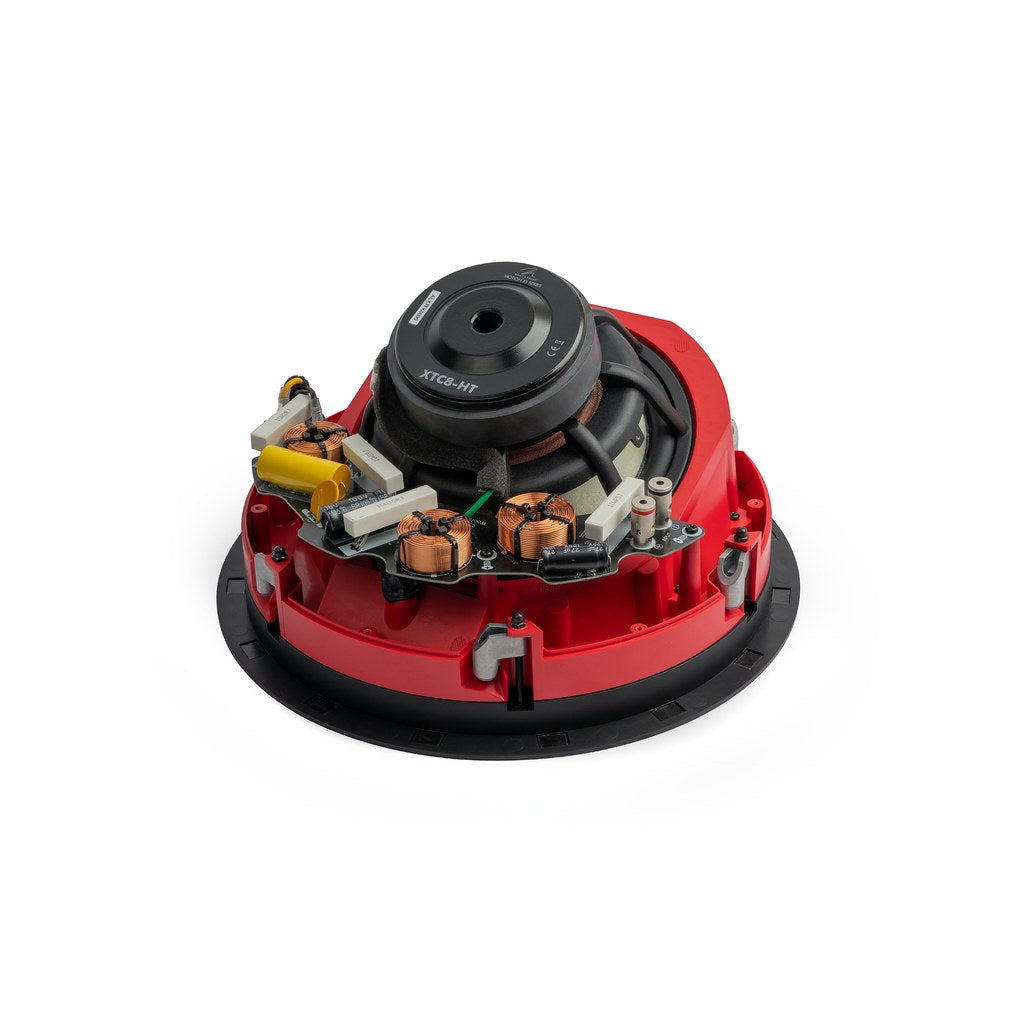

Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
Max Power Handling
150 Watts
Weight
7.9 lbs. (3.6 kg) each
Dimensions (overall size)
10.35” x 5.30” (26.30 x 13.46cm)
Required Wall Opening (includes tolerance)
9.25” (23.5cm) diameter
Projection From Wall Surface
0.33” (23.5cm)

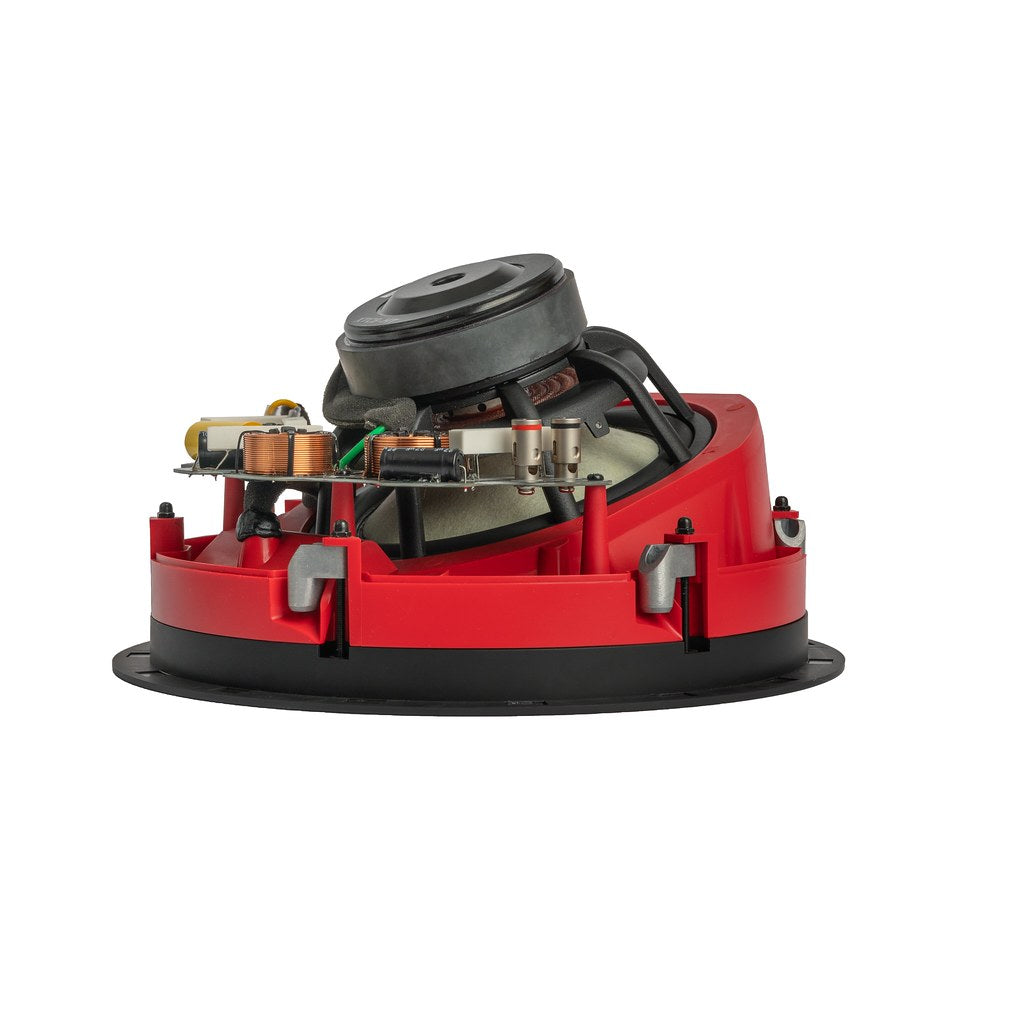

Depth Behind Wall Surface
5.50” (13.97cm)
