Martin Logan Icon 3XW (Please call/In-Store Only)

Sale price$2,499.99

Tax excluded. Shipping calculated at checkout

Options: By Itself (the price indicated is for each)


Martin Logan Icon 3XW (Please call/In-Store Only)

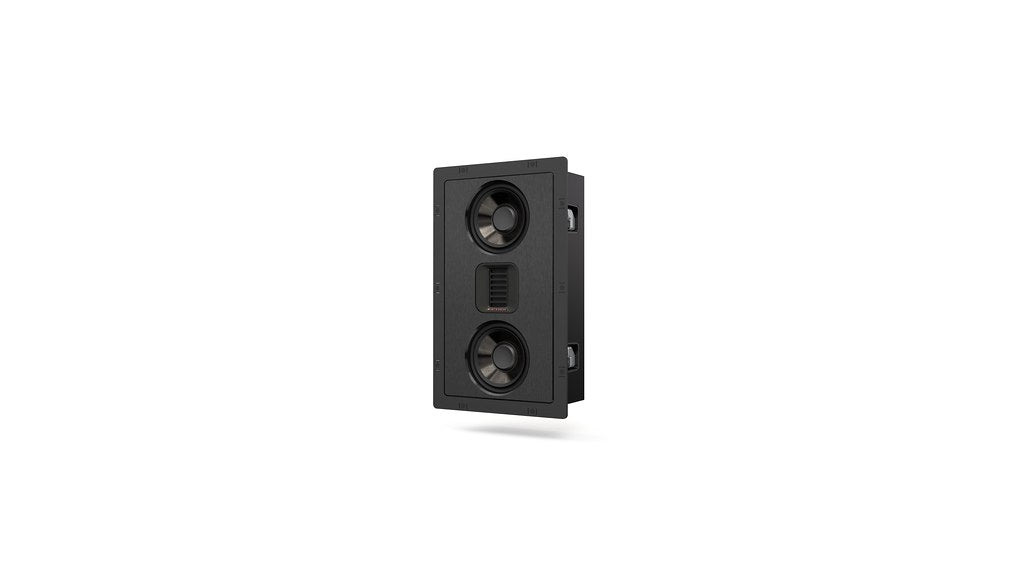

Introducing the ultimate compact in-wall speaker, designed to deliver exceptional audio performance without compromising on space. This remarkable speaker features an impressive combination of components, ensuring an immersive listening experience.

Unleash the power of sound with three drivers, including the lightning-fast Folded Motion XT Obsidian tweeter. Accompanied by dual 5.5-inch unidirectional carbon fiber multi-section cone woofers, backed by Nomex®, it delivers precise and impactful bass reproduction.

Experience seamless integration and outstanding clarity, thanks to the flagship-class Vojtko crossover network. Crafted with audiophile-grade components, it ensures optimal signal distribution, allowing you to hear every nuance of your favorite music.

For effortless installation, a pre-installation bracket is available, simplifying the setup process and saving you valuable time.

Discover the extraordinary performance of our compact in-wall speaker, where innovation and superior craftsmanship combine to create an unparalleled audio experience. Elevate your listening enjoyment today.


Frequency Response
78–25,000 Hz ± 3 dB

Tweeter Dispersion (horizontal x vertical)
80° x 30°

94 dB @ 2.83 volts/ meter

4 ohms. Compatible with
4, 6, or 8 ohm rated amps.

High Frequency Driver
1.25 x 2.4 inch (3.2 x 6.1 cm)
Folded Motion XT Obsidian
transducer with 4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.

Crossover Frequency
2400 Hz

Tweeter Aiming
Rotatable tweeter for horizontal
or vertical installations

Low Frequency Driver
Two 5.25-inch (13.33 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.

Custom air core coil inductors,
polypropylene film capacitors,
and low DF electrolytic capacitors.
Thermal/current protection.

Suitable Amplifier Range
20–250 watts

Max Power Handling
125 watts

Binding Post Inputs
Push style

15.5 lb (7 kg)

Dimensions (overall size)
15.98 x 9.94 x 4.11 inch
(405.95 x 252.6 x 104.3 mm)

Required Wall Opening (includes tolerance)
14.66 x 8.64 inch
(372 x 219 mm)

Projection From Wall Surface
0.31 inch
(7.8 mm)

Depth Behind Wall Surface
3.8 inch
(96.5 mm)

Optional Accessories
Pre-install bracket (PN: 3XWBRK)

Weight & Dimensions

Dimensions (overall size)
15.98 x 9.94 x 4.11 inch
(405.95 x 252.6 x 104.3 mm)

15.5 lb (7 kg)
