Exterior design by Flemming E. Rasmussen
Electronics design by Tom Møller
Zero negative feedback
True Dual Mono configuration
Fully discrete, DC-coupled Class A circuit topology
Microprocessor-controlled 43-step fully balanced relay volume attenuator for best sonic performance based on a minimalist contingent of ultra-precision resistors
High-speed, discrete, single-ended Class A input buffer for best possible sonic performance
Optional PCM/DSD DAC module with one USB, 2 x SPDIF, 1 AES and 1 optical input. PCM up to Fs = 384 kHZ, DSD up to DSD512
Optional MM/MC Gryphon PS2 phonostage module based on legendary Gryphon Legato phonostage
Local shunt regulators for optimal noise suppression
Input level matching to prevent abrupt volume changes
Ultra-short signal path
Minimal internal wiring
Gold-plated Neutrik XLR sockets for two balanced sources and 1 output
Gold-plated phono sockets with Teflon insulation for 3 inputs and 2 outputs
Fixed-level AV throughput, balanced or single-ended, for uncompromising integration with separate surround preamplifier
Large Vacuum Fluorescent Display for easy legibility
Adjustable display lighting (100/75/50/25%, Off)
Backlit touch-sensitive front panel controls
12 V DC link input and output
Green Bias link output for automatic Green Bias control with any Gryphon power amplifier

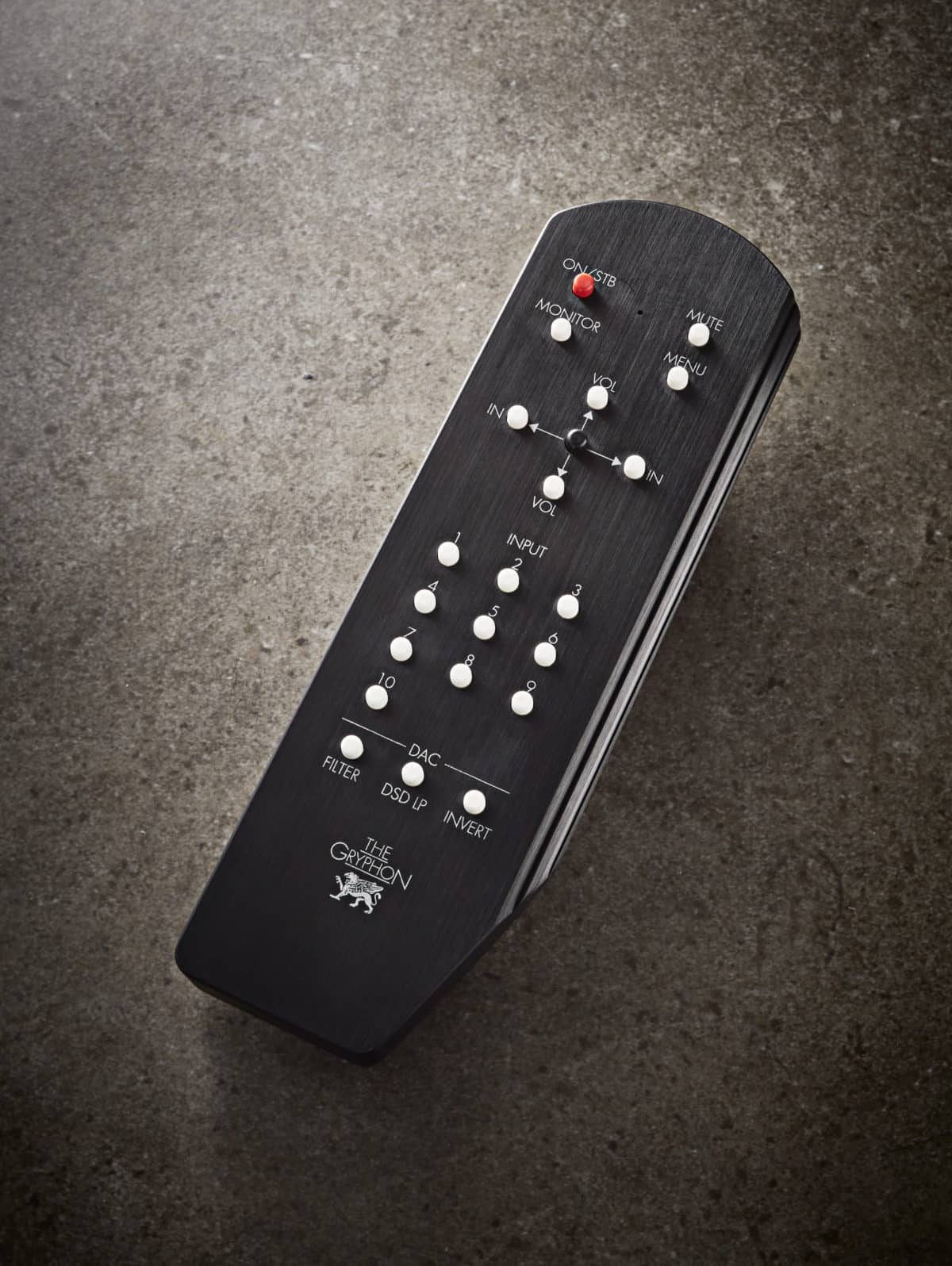

Stylish infrared remote control
Flash memory upgrades possible via PC or Key-fob
EU CE approval
Standby current consumption < 0.5 W
Designed and built in Denmark
