Main Processor
DCP8568
DAC
Left Channel: AK4191+AK4499
Right Channel: AK4191+AK4499
Audio Processor
Multi-core USB audio processor
OPA Chip
OPA1612
Power
Triple ultra-low noise linear power supplies

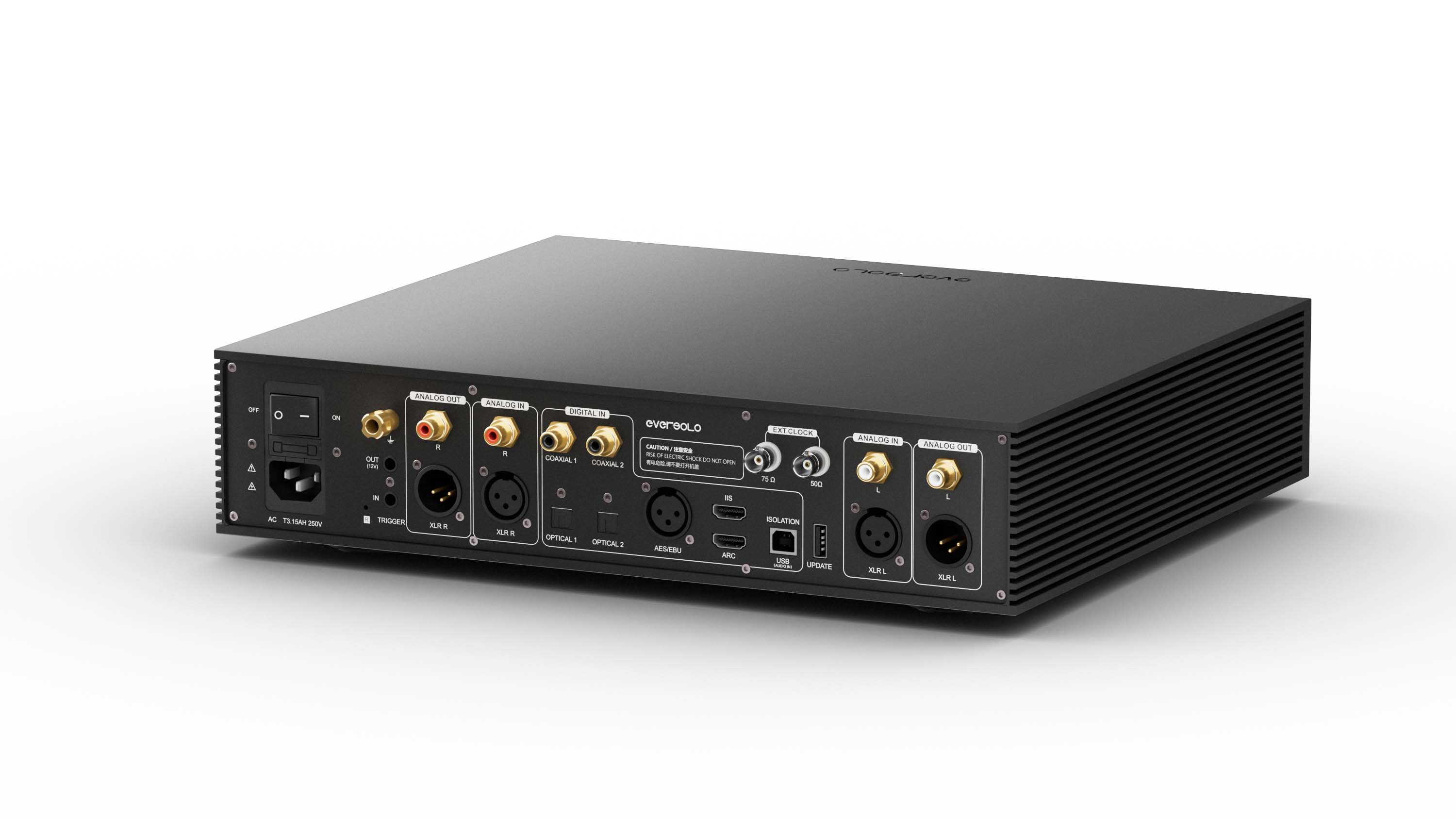

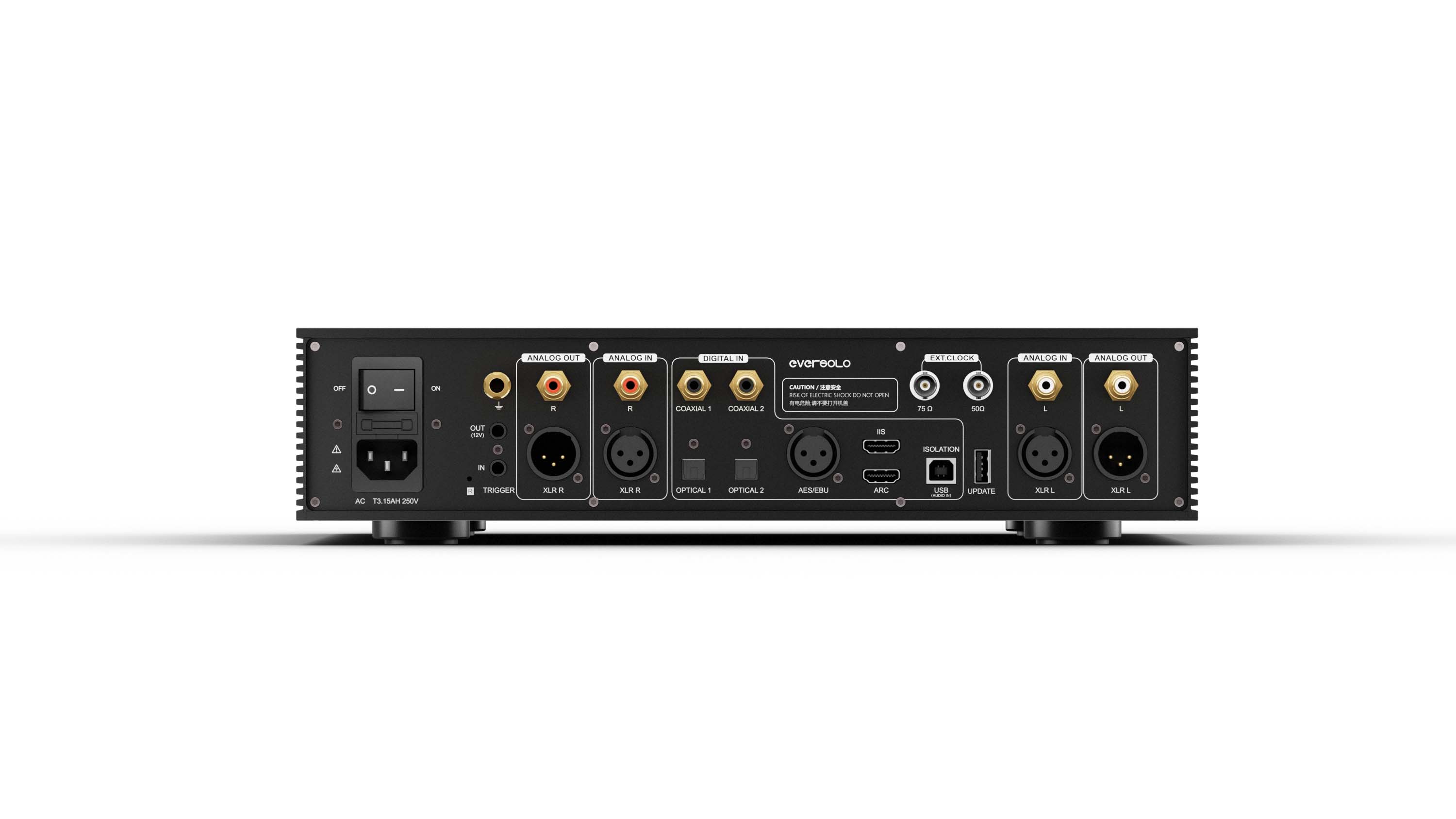

Audio Inputs and Outputs
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input
Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input
Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs
XLR (Balanced), RCA
Analog Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
