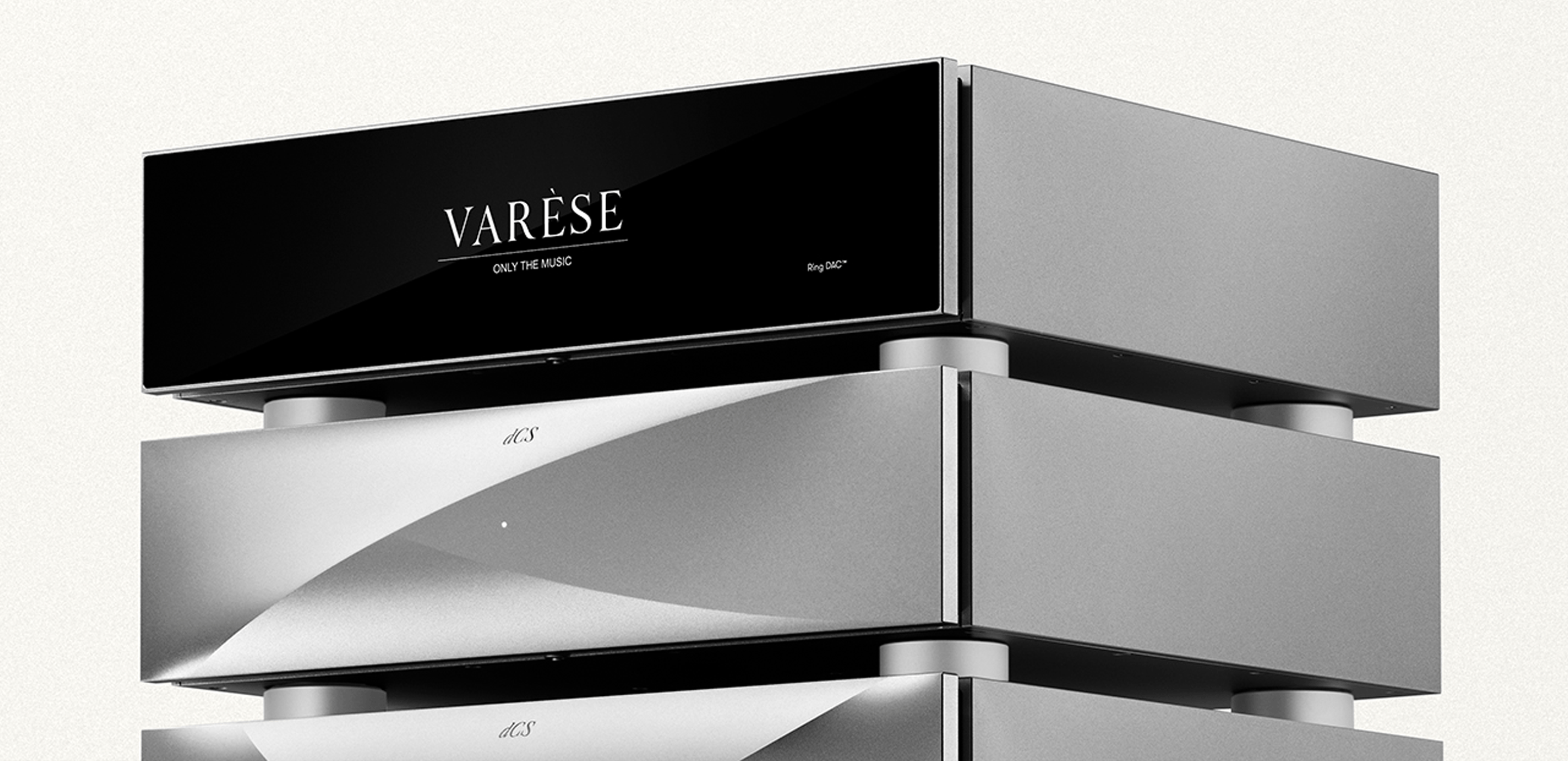

dCS Varese Music System (call for pricing) Includes
- CORE unit
- MONO DACs x2 units
- MASTER CLOCK unit
- USER INTERFACE unit
- REMOTE CONTROL
- MOSAIC ACTUS unit

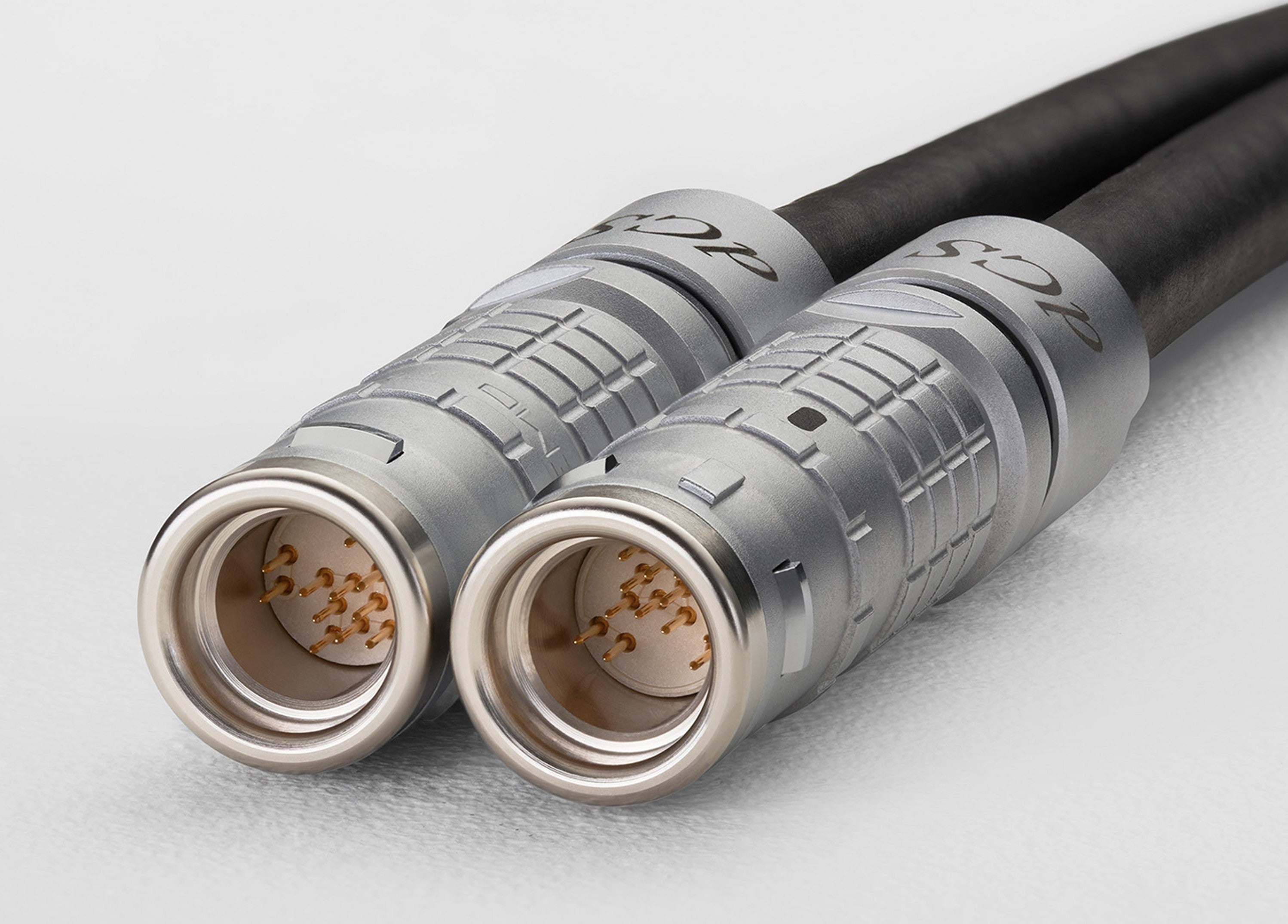

- ACTUS CABLE
Dimensions (Allow an additional 180mm depth for ACTUS cable depth):
- User Interface: 131mm x 444mm x 450mm / 5.2” x 17.5” x 17.8” (includes Bluetooth aerial depth) / 32.2lbs

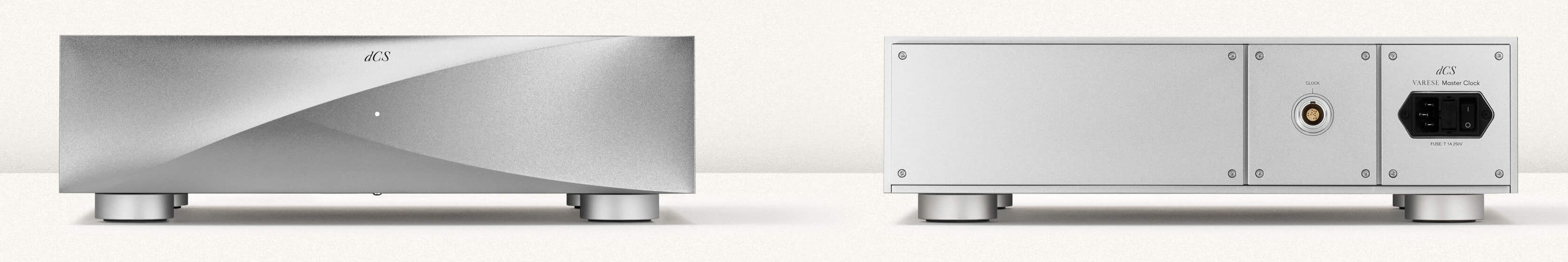

- Master Clock: 131mm x 444mm x 437mm / 5.2” x 17.5” x 17.3” / 34.7lbs

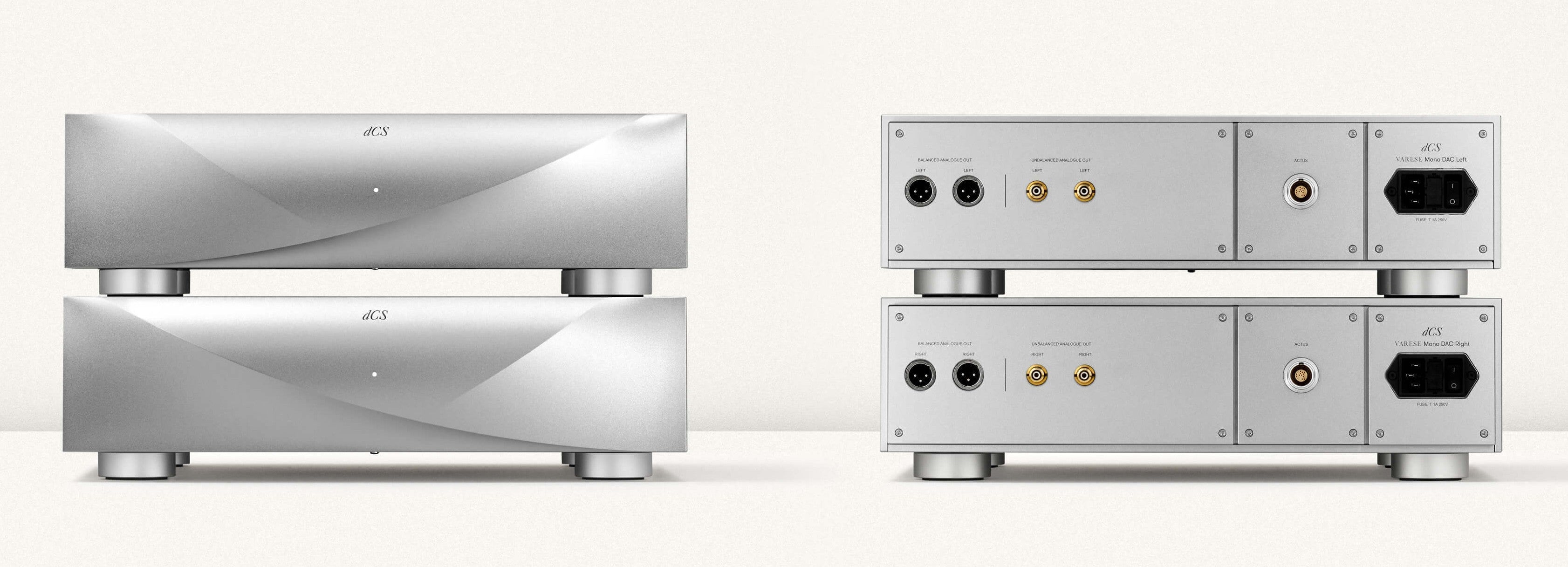

- Left & Right Mono DACs Each: 131mm x 444mm x 437mm / 5.2” x 17.5” x 17.3” - Right Mono DAC: 131mm x 444mm x 437mm / 5.2” x 17.5” x 17.3” / 41.3lbs

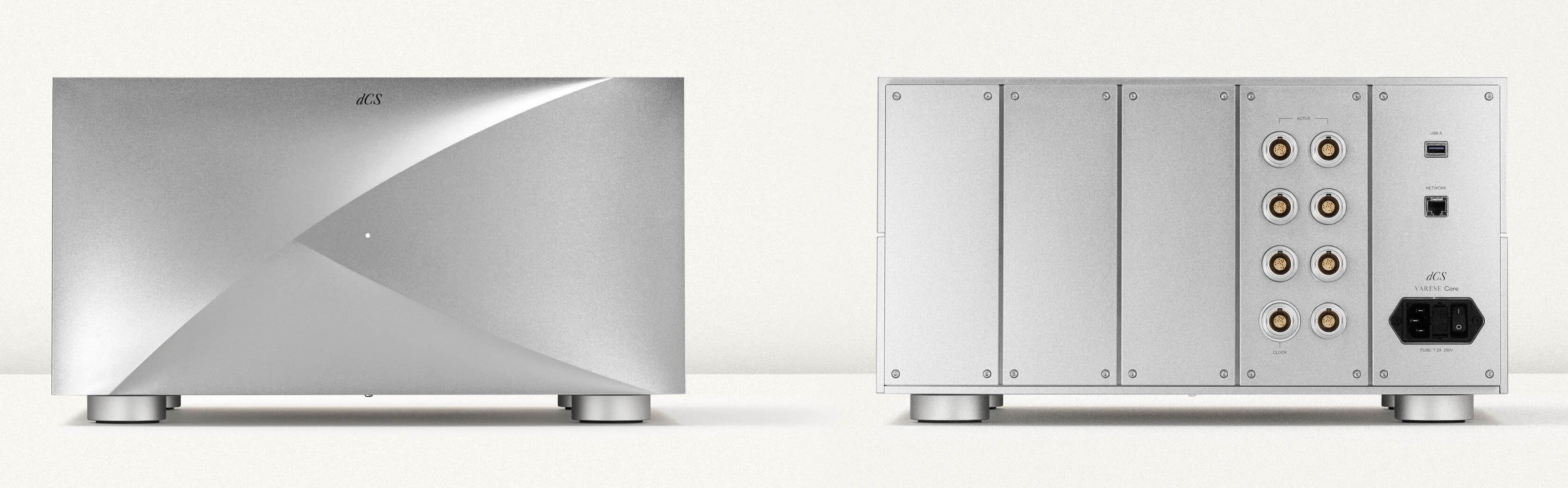

- Core: 244mm x 444mm x 438mm / 9.7” x 17.5” x 17.3” / 73lbs
Analogue Outputs:
- 2x pair balanced outputs on 4x XLR connectors. Output impedance: 1.5Ω
- 2x pair unbalanced outputs on 4x RCA connectors. Output impedance: 52Ω.
- Maximum load: 600Ω (10k-100kΩ is recommended).
- Output levels: 0.2V, 0.6V, 2V, 6V rms for a full-scale input, set in the menu.
Digital Inputs:
- Ethernet on RJ45 connector for network streaming.
- USB Type A connector for mass storage devices (navigated using Mosaic ACTUS).
- USB 2.0 interface on B-type connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DoP format.
- 3x AES/EBU inputs on 3-pin female XLR connectors, accepts 24-bit 44.1 – 192kS/s PCM & DSD/64 in DoP format. AES1+2 act as a Dual AES pair, accepts 24-bit 88.2 – 384kS/s PCM, DSD/64 & DSD/128 in DoP format.
Digital Outputs:
If the Digital 1/O Module is fitted to the Varese Core
- 1x S/PDIF interface on RCA Phono connector, outputs 24-bit 44.1
- 192kS/s PCM, DSD/64 in DoP format.
Wordclock I/O:
If the Digital 1/O Module is fitted to the Varese Core
- 1 x Word Clock Output on 1x BNC connector. Outputs a TTL-compatible Wordclock at either 44.1kHz or 48kHz depending on the input sample rate.
Sample Frequencies and Formats:
Supports the following audio formats and sample rates:
- 44.1-384kS/s up to 24 bits
- DSD/64, DSD/128, DSD/256, DSD/512
- Native DSD + DoP
- FLAC, WAV, AIFF
