MSB Technology Discrete DAC

Sale price$17,200.00

Tax excluded. Shipping calculated at checkout

Options: MSB Discrete DAC (Black) (Can add up to 2 modules)


MSB Technology Discrete DAC

When adding to cart: please add the base configuration DAC to cart first and then any subsequent optional upgrades you wish to include. Please note that you can add up to only 2 modules for the DAC.

Contact us at (905) 881-7109 or for more information.

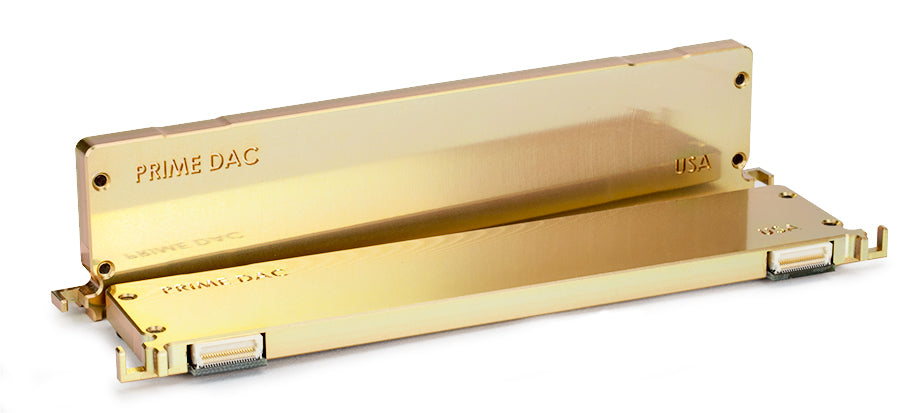

The Prime DAC Module.
With two prime DACs, we yield an unprecedented level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.

Integrated clock. Flexible Configurations.
A modular I/O card keeps even the discrete DAC flexible, repairable, and upgradeable. Along with an integrated clock, changing this card allows switching between single-ended and balanced outputs.

MSB offers optional upgrade modules when purchasing the Discrete DAC:

A better USB solution (Pro USB/Pro ISL).
The Pro USB was developed to offer a multi part USB solution that features complete electrical isolation and all the performance of MSB’s proprietary Pro ISL input. The Pro USB is offered as a stand alone module for users who already have an MSB DAC that is equipped with a Pro ISL input as well as a starter kit with a Pro ISL input and everything you need to get up and running.
– Complete electrical isolation
– Up to 24 bit – 768kHz
– MQA decoding
– Up to 8X DSD
– Up to 1km lossless transmission

Superior streaming (MSB Renderer/Streamer).
The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.
– Up to 32 bit – 768kHz
– MQA decoding
– Roon Endpoint
– Up to 4X DSD
– UPnP Protocol
– DLNA Protocol

MSB Technology Discrete DAC
MSB Technology Discrete DAC Sale price$17,200.00

Included Accessories
•User Manual

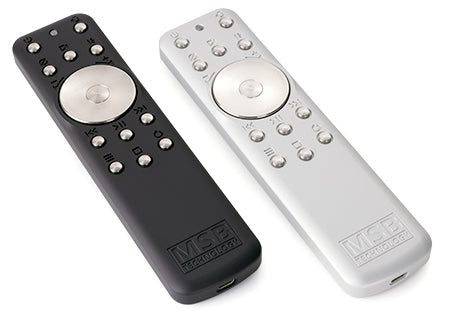

•MSB Remote
•USB charging cable
•Dual-link power splitter
•4X Rubber feet
•4X Plastic foot inserts

  • Supported Formats (Input dependent): 44.1kHz to 3,072kHz PCM up to 32 bits; 1xDSD, 2xDSD, 4xDSD, 8xDSD; Supports DSD via DoP on all inputs

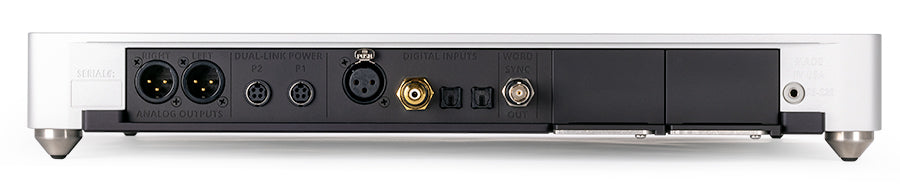

  • Digital Inputs: 1x RCA Coaxial; 1x XLR; 1x Word-Sync; 2x Toslink; 2x Advanced isolated input module slots
  • XLR Analog Outputs:
  • •3.57Vrms Maximum
  • •300Ω Balanced
  • •Galvanically isolated
  • Volume Control: 1dB steps (Range 0 - 106). Volume Control can be disabled in the menu.
  • Display: Discrete LED audio clock synchronous display; Adjustable brightness and auto-off feature
  • Power Consumption: 35 Watts with fully configured Discrete DAC
Weight & Dimensions

Chassis Dimensions.
Width: 17 in (432 mm)
Depth: 12 in (305 mm)
Chassis Height (Without Feet): 2 in (51 mm)
Stack height: 2.65 in (68 mm)
Weight: 18 lbs (8.2 kg)

Power Supply Dimensions
Width: 8.25 in (209.6 mm)
Depth: 6 in (152.4 mm)
Chassis Height (Without Feet): 2 in (50.8 mm)
Stack height: 2.65 in (67.3 mm)
Weight: 5.5 lbs (2.5 kg)
