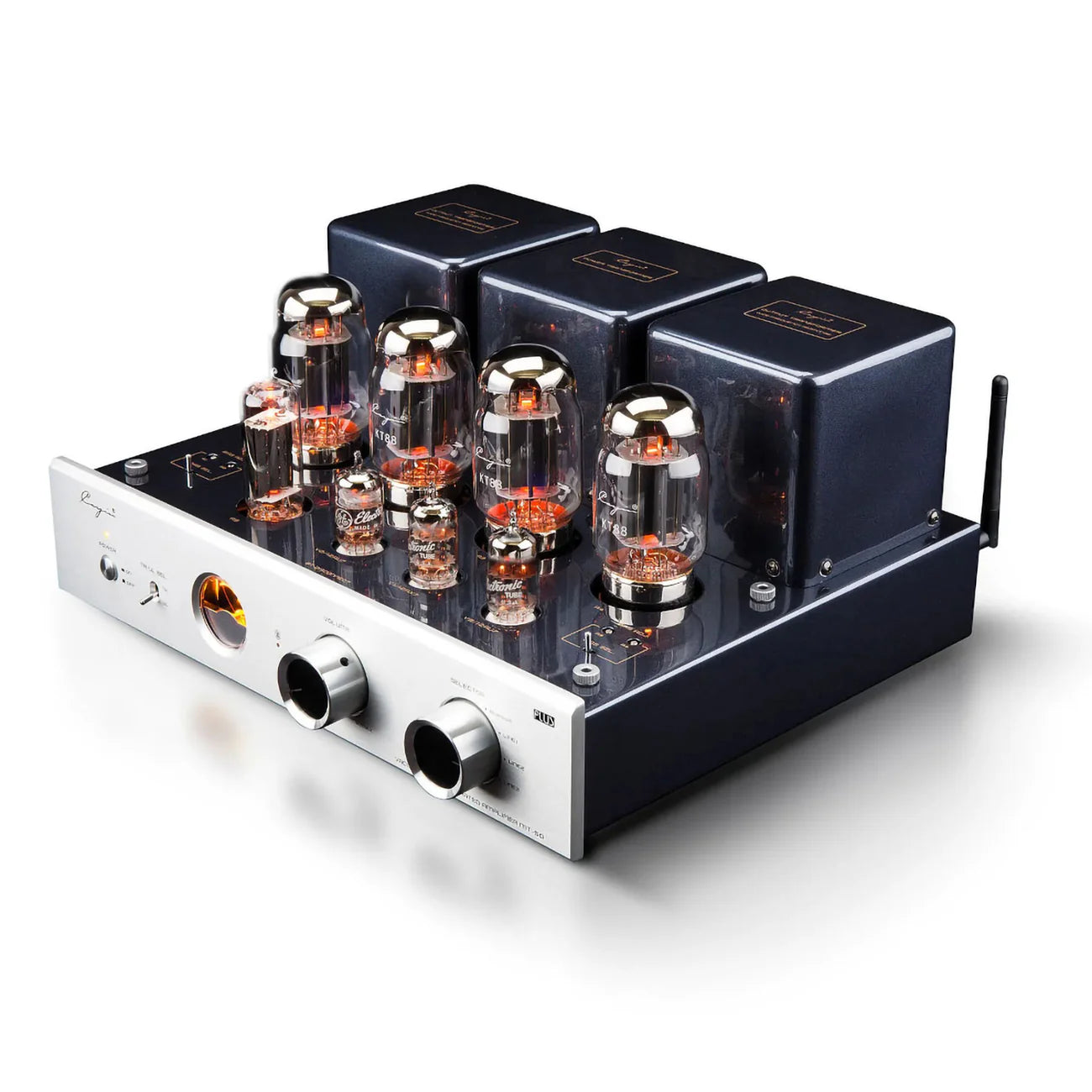

Cayin MT-50 PLUS Bluetooth – Technical Specifications
-Type: Tube integrated stereo amplifier (hand-assembled, point-to-point wiring)
- Dimensions: 360 mm (W) × 330 mm (D) × 180 mm (H)
- Net Weight: ~16.5 kg
- Power Consumption: ~270 W
Power Output:
(varies by tube version selected)

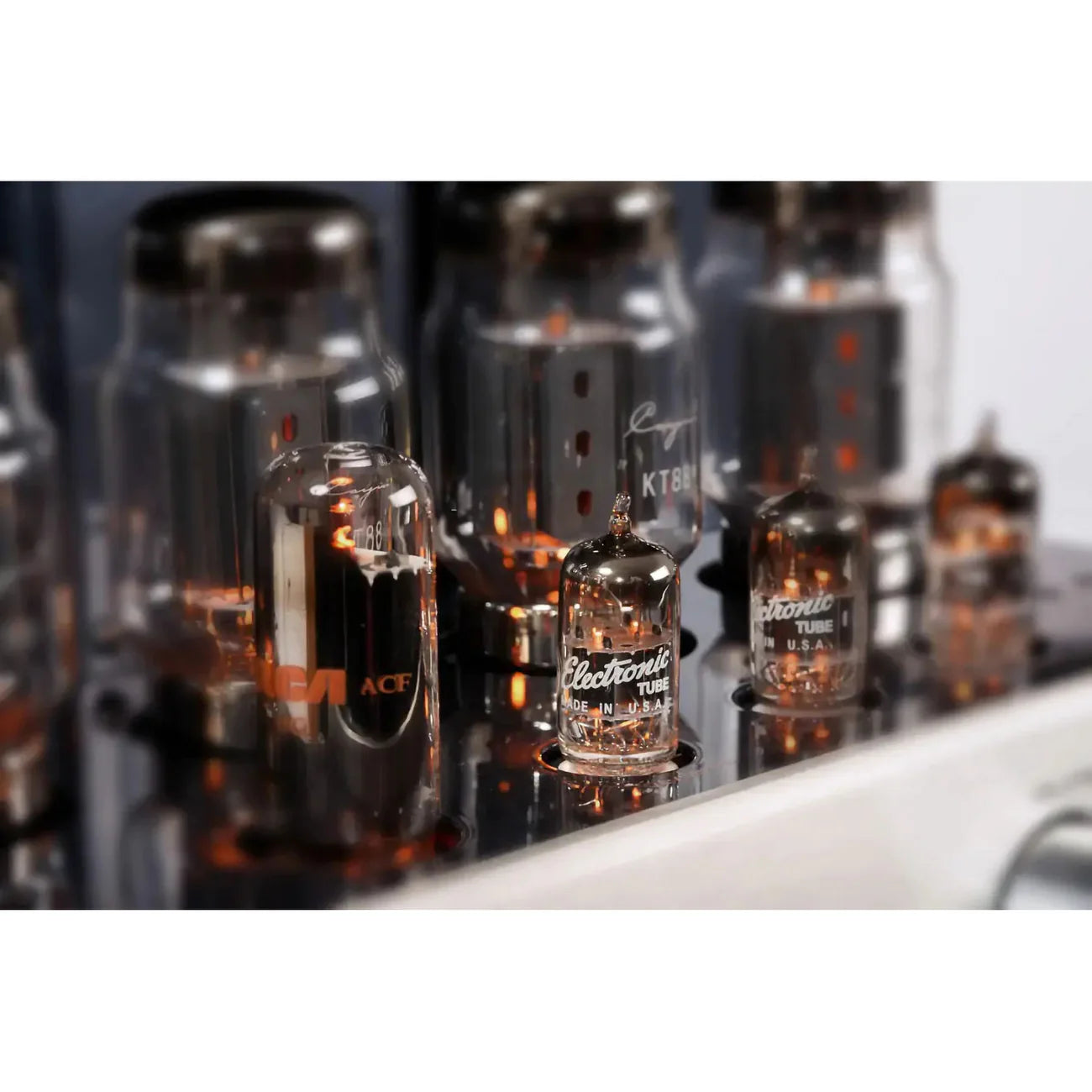

Tube Triode Mode Ultralinear Mode
KT88 2 × 21 W RMS 2 × 40 W RMS
EL34 2 × 18 W RMS 2 × 36 W RMS
Output is specified into 8 ohm load.
- Frequency Response: 10 Hz – 50 kHz (-3 dB)
- Signal-to-Noise Ratio (S/N): ≈ 90 dB
- Total Harmonic Distortion (THD): ≈ 1 % @ 1 kHz
Inputs & Connectivity
Analog Inputs:
• Bluetooth receiver (CSR8670)
• LINE1, LINE2, LINE3 (RCA)
Bluetooth Specifications:
• Version: V4.0
• Supported Codecs: SBC, AAC, aptX
• Range: ~≤10 m

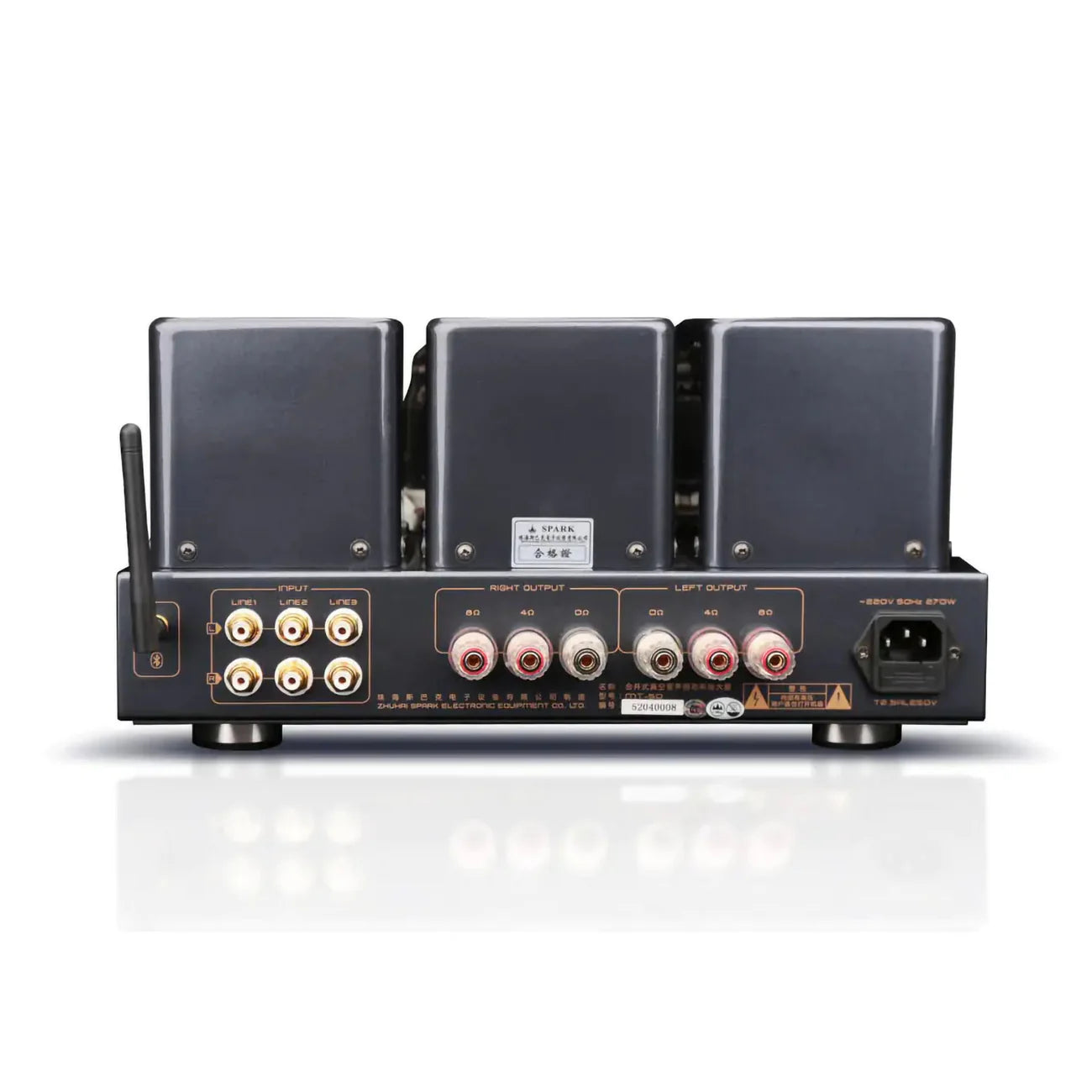

Outputs
Speaker Impedance: 4 Ω / 8 Ω compatible
Speaker Terminals: Screw-type binding posts
Key Features
- Selectable operating mode: Triode or Ultralinear for different sound character
- BIAS Adjustment: User-accessible with top-mounted meter
- Built-in Bluetooth: Allows wireless streaming from phones/tablets
- High-quality passive components: Takman carbon resistors, EI output transformers
