Cayin JAZZ 90 Tube Integrated Amplifier With Bluetooth (Call/Email For Availability)

Cayin JAZZ 90 Tube Integrated Amplifier

Cayin Jazz 90 Vacuum Tube Integrated Amplifier

The Cayin Jazz 90 is a meticulously handcrafted vacuum tube integrated amplifier, designed for music lovers who demand soulful analog sound and modern-day versatility.

With its selectable operation modes (TR/UL), user-selectable KT88/EL34 power tube setup and in-house manufactured upgraded toroidal transformer, the Jazz 90 embodies the spirit of tube rolling and acoustic personalization—paying homage to classic tube design while embracing audiophile flexibility and reliability.

Tube Configuration
At the core of the Jazz 90 lies:
· Input Stage: 2 × 12AX7 / ECC83
· Driver Stage: 2 × 6SN7
· Power Stage: 4 × KT88 (switchable to EL34)
These tubes are configured in a Class AB push-pull design, offering excellent drive and dynamic capabilities across a broad range of music genres. Users can also select between Triode and Ultralinear operating modes via a rear panel switch:
Triode Mode: Rich, fluid midrange with natural harmonics- perfect for vocals.
Ultralinear Mode: Powerful and controlled, delivering increased headroom and energy for orchestral and electronic material.

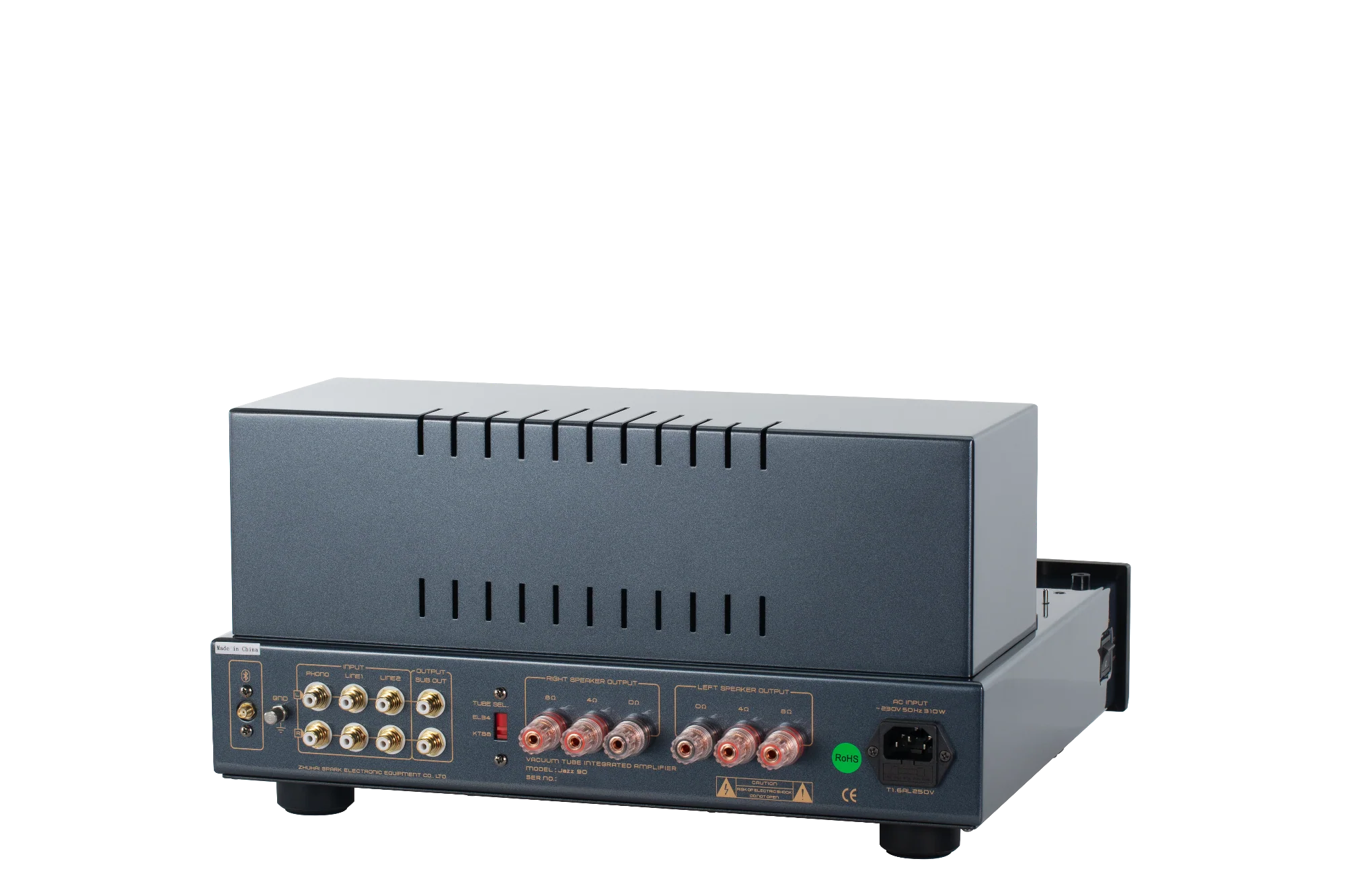

External bias adjustment and tube selection switches allow for easy tube rolling and fine-adjustment.
