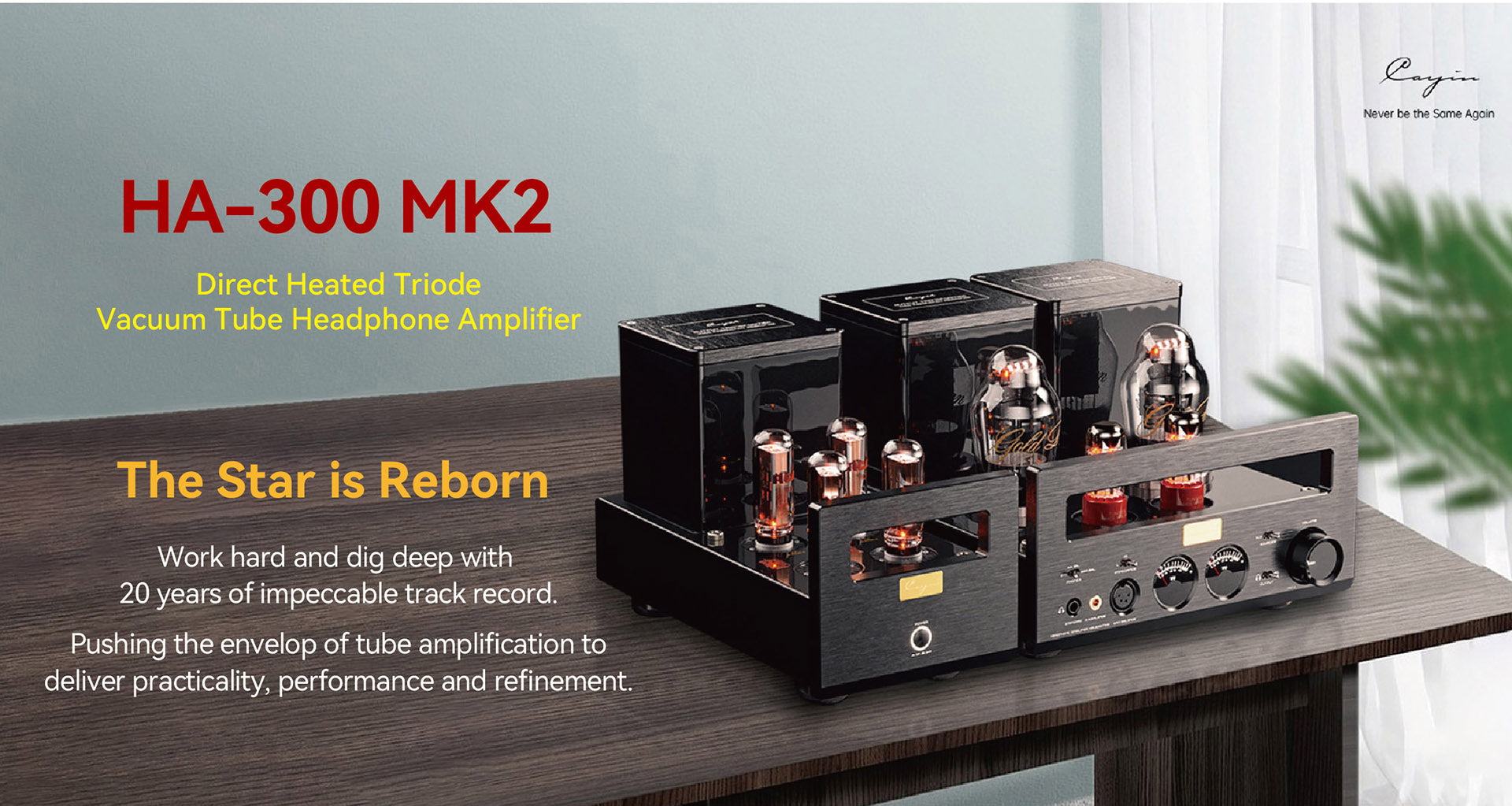

Single-ended Direct-Heated Triode design, brings out the charm of the tubes with natural and realistic music playback.

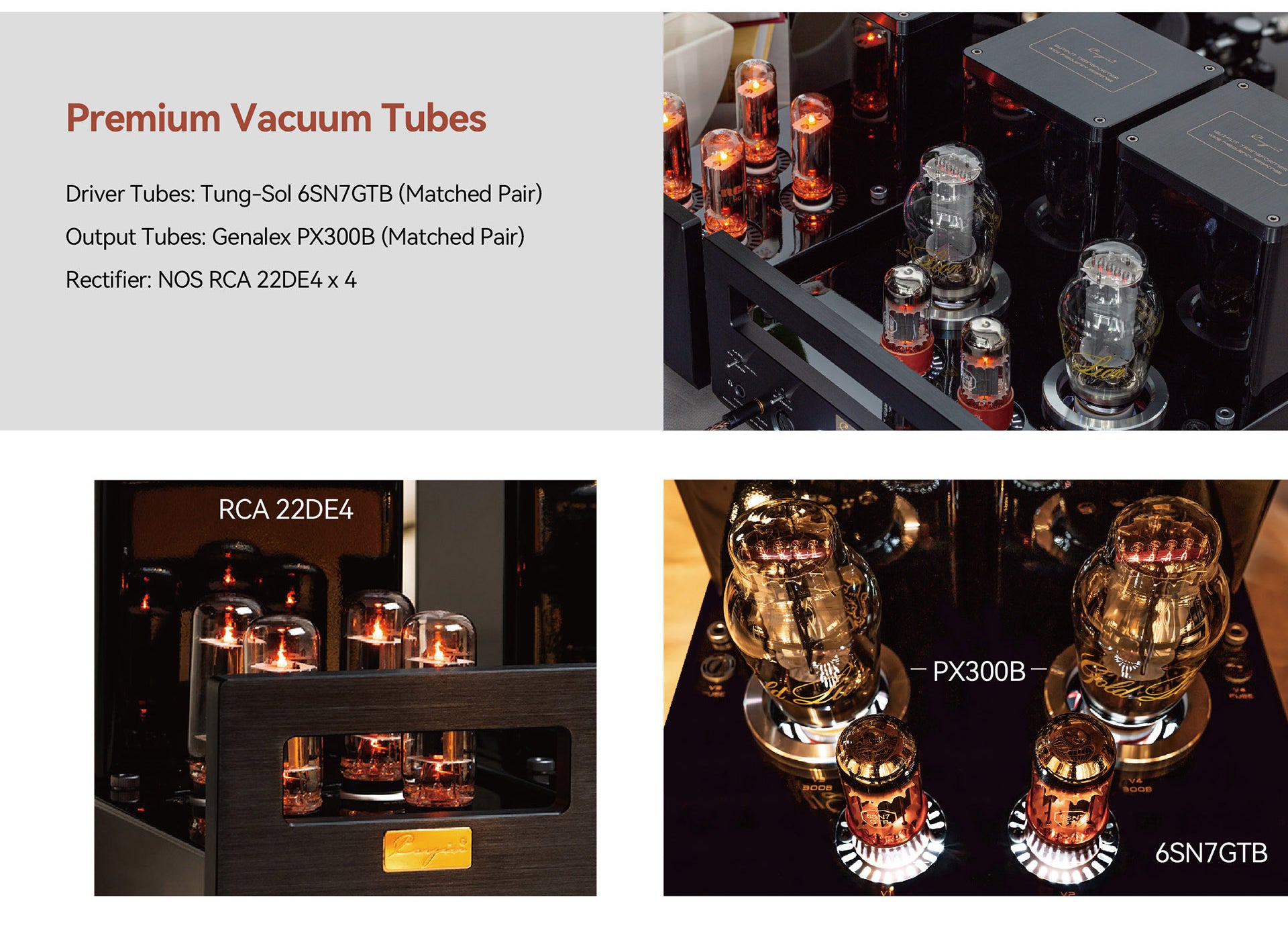

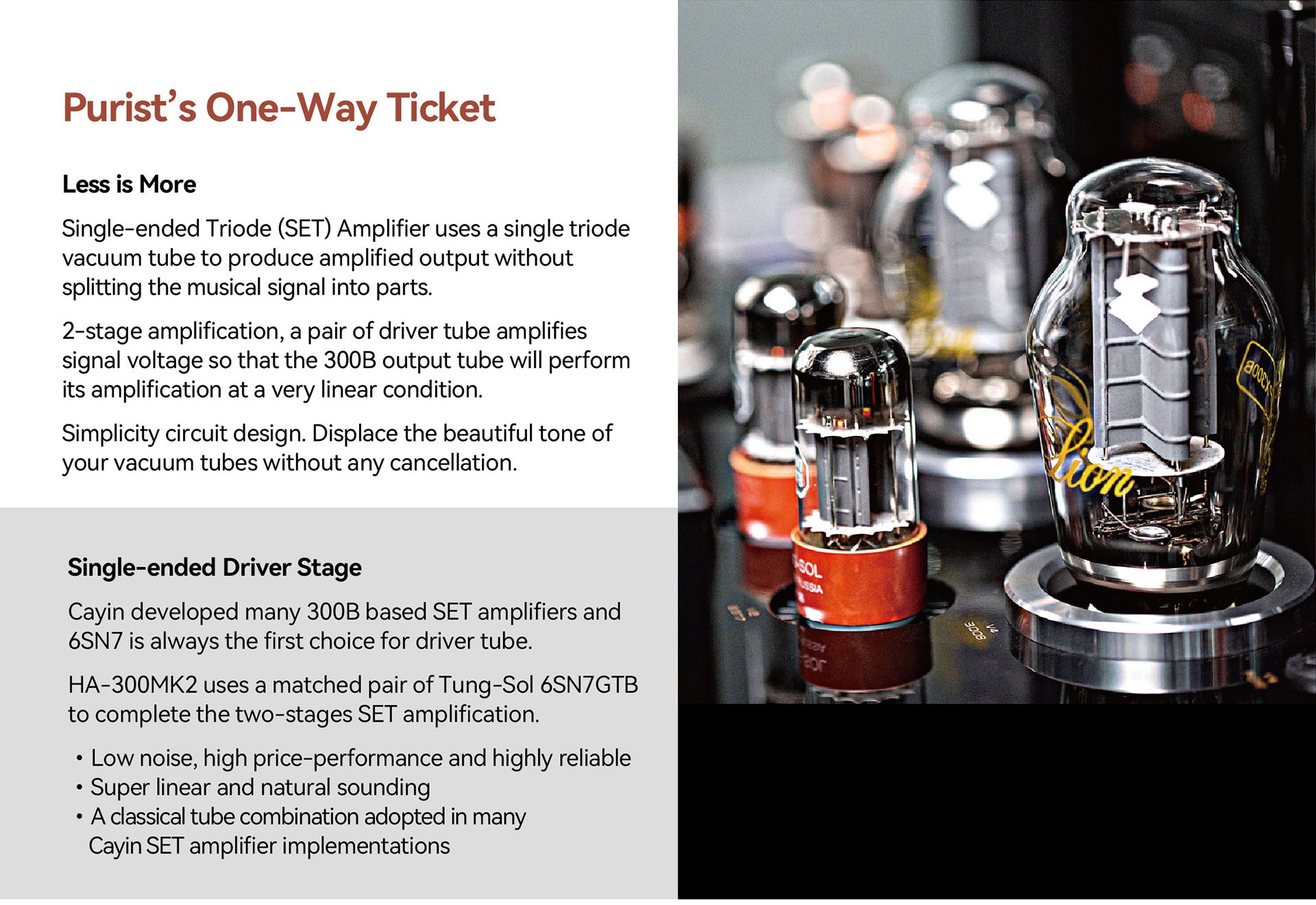

Driver Tube: matched pair of Tung-Sol 6SN7GTB

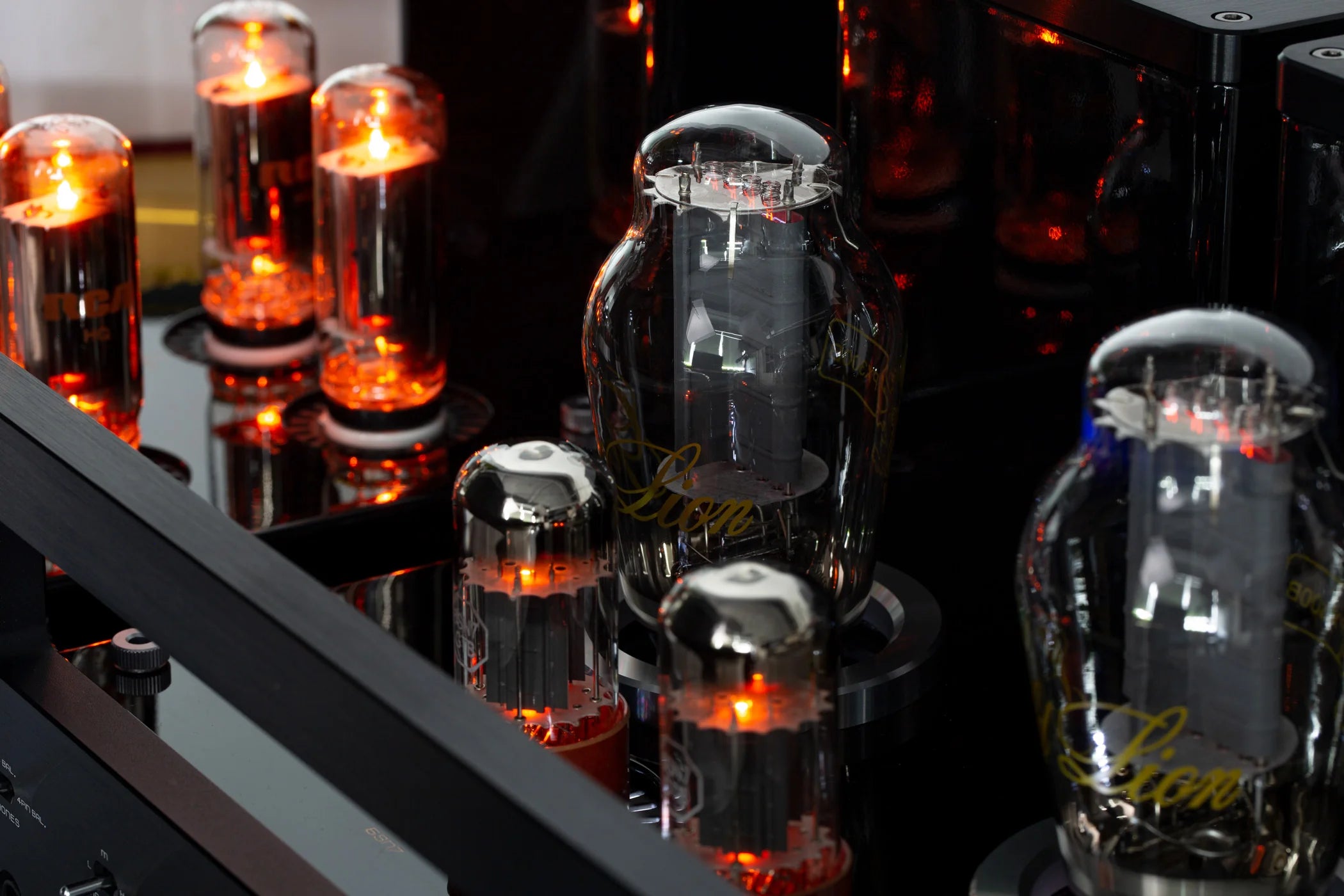

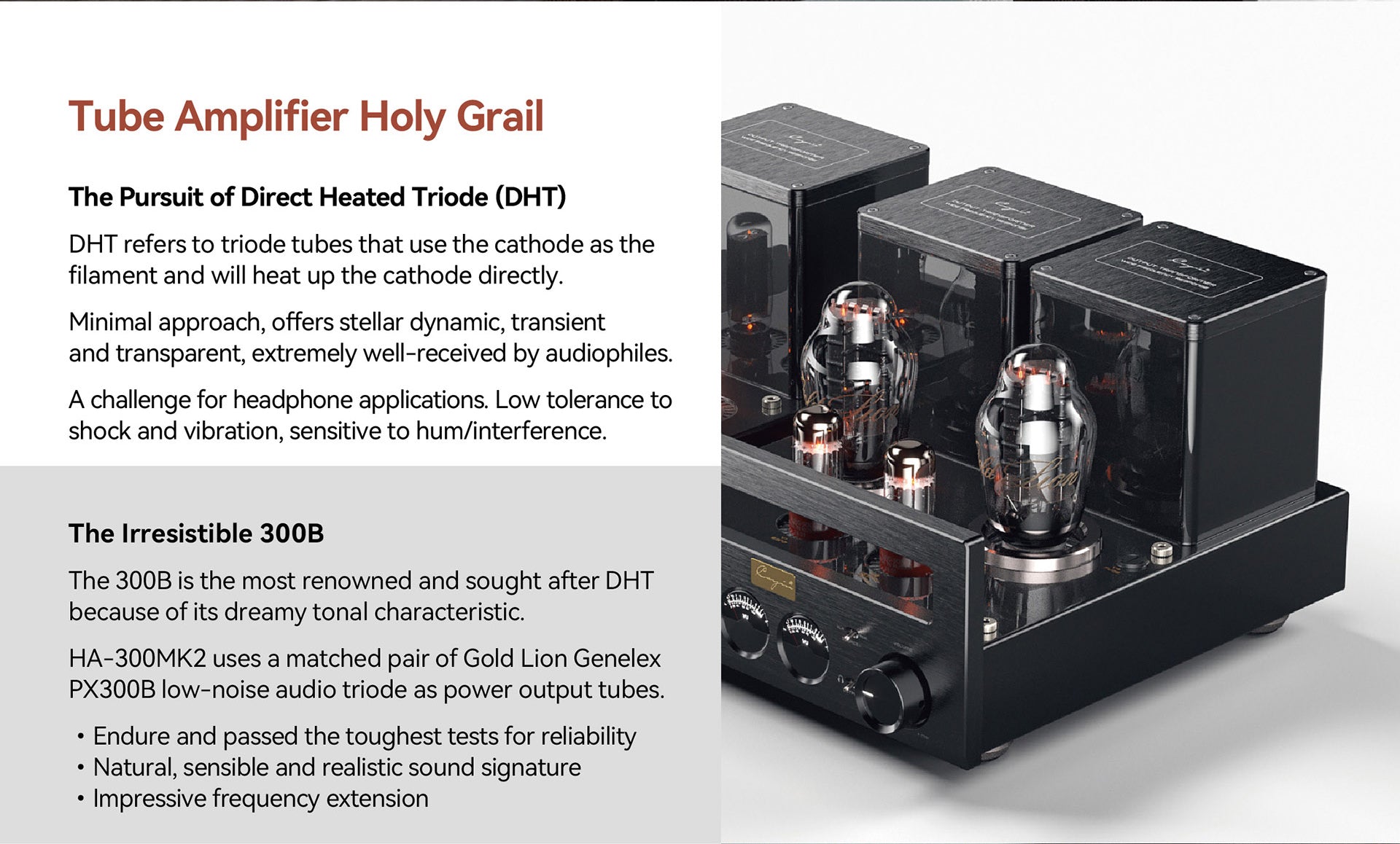

Output Tube: matched pair of Genalex PX300B
Rectifier Tube: 4 pieces of NOS RCA 22DE4

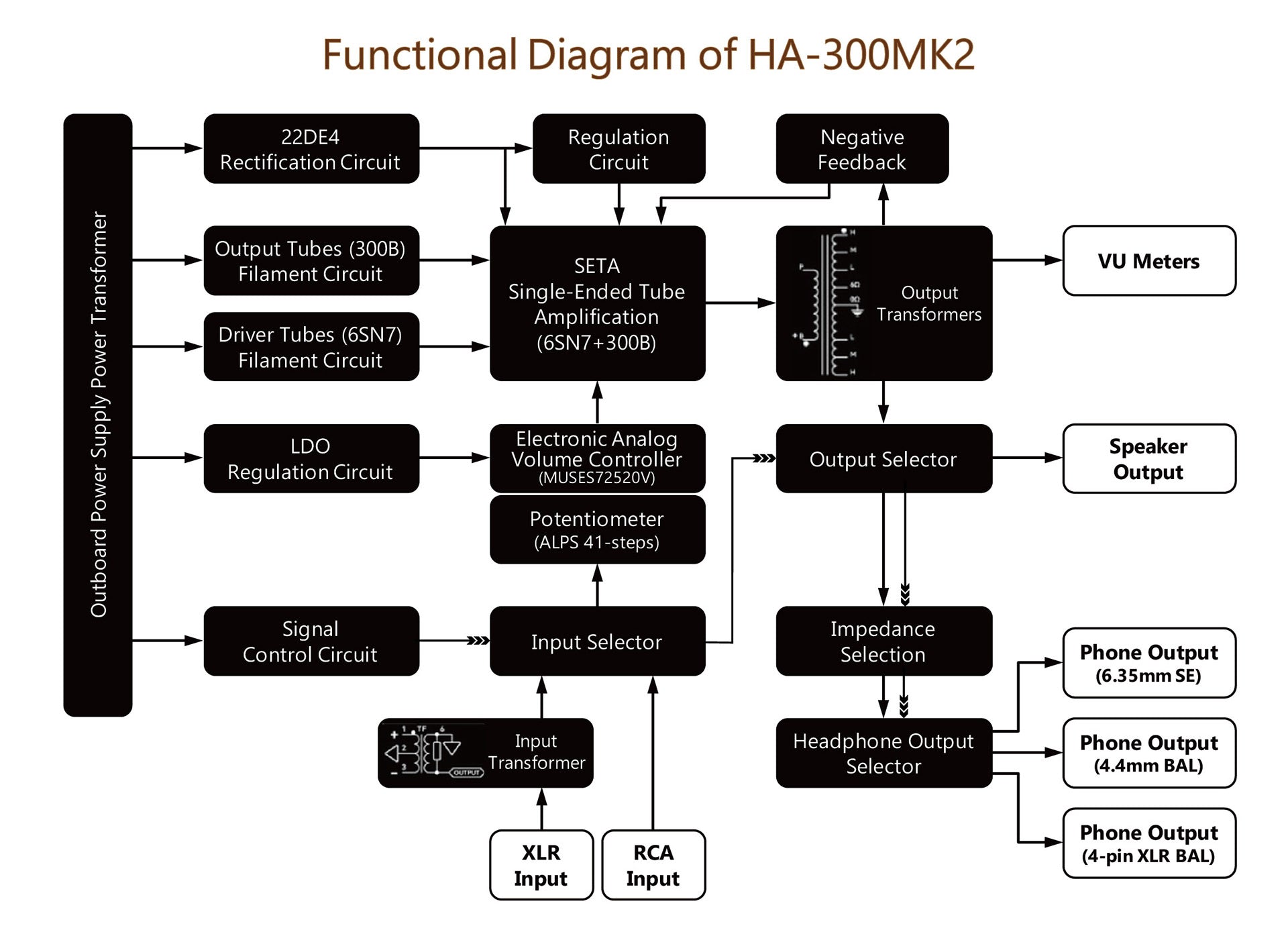

Support Balanced (XLR) and single-ended (RCA) input, balanced input will transform to single-ended through a pair of input transformer.

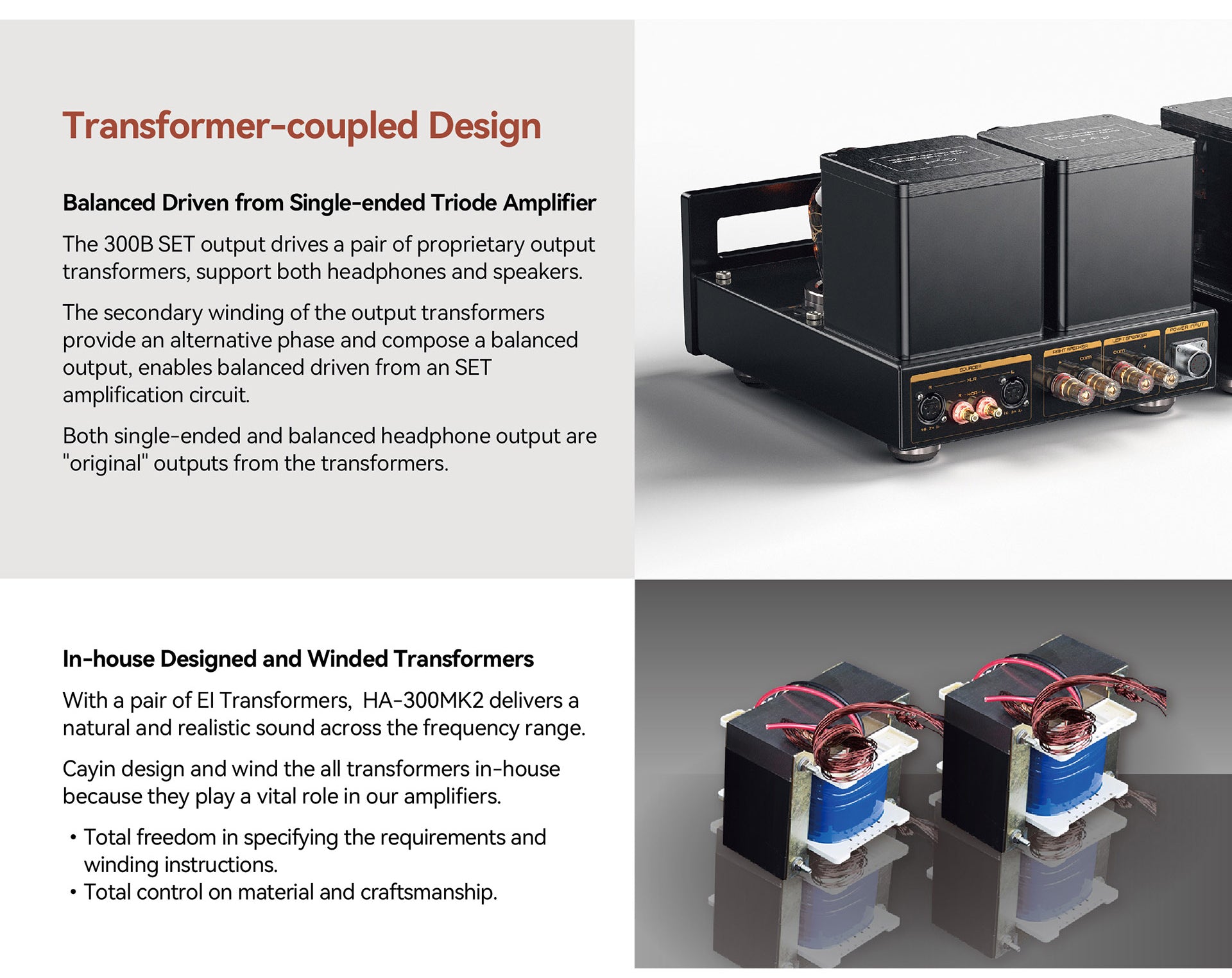

The output from 300B will feed into a pair of custom design in-house manufactured high quality EI output transformer for speaker, single-ended (6.35mm) or balanced (4-pins XLR and 4.4mm) headphone output.

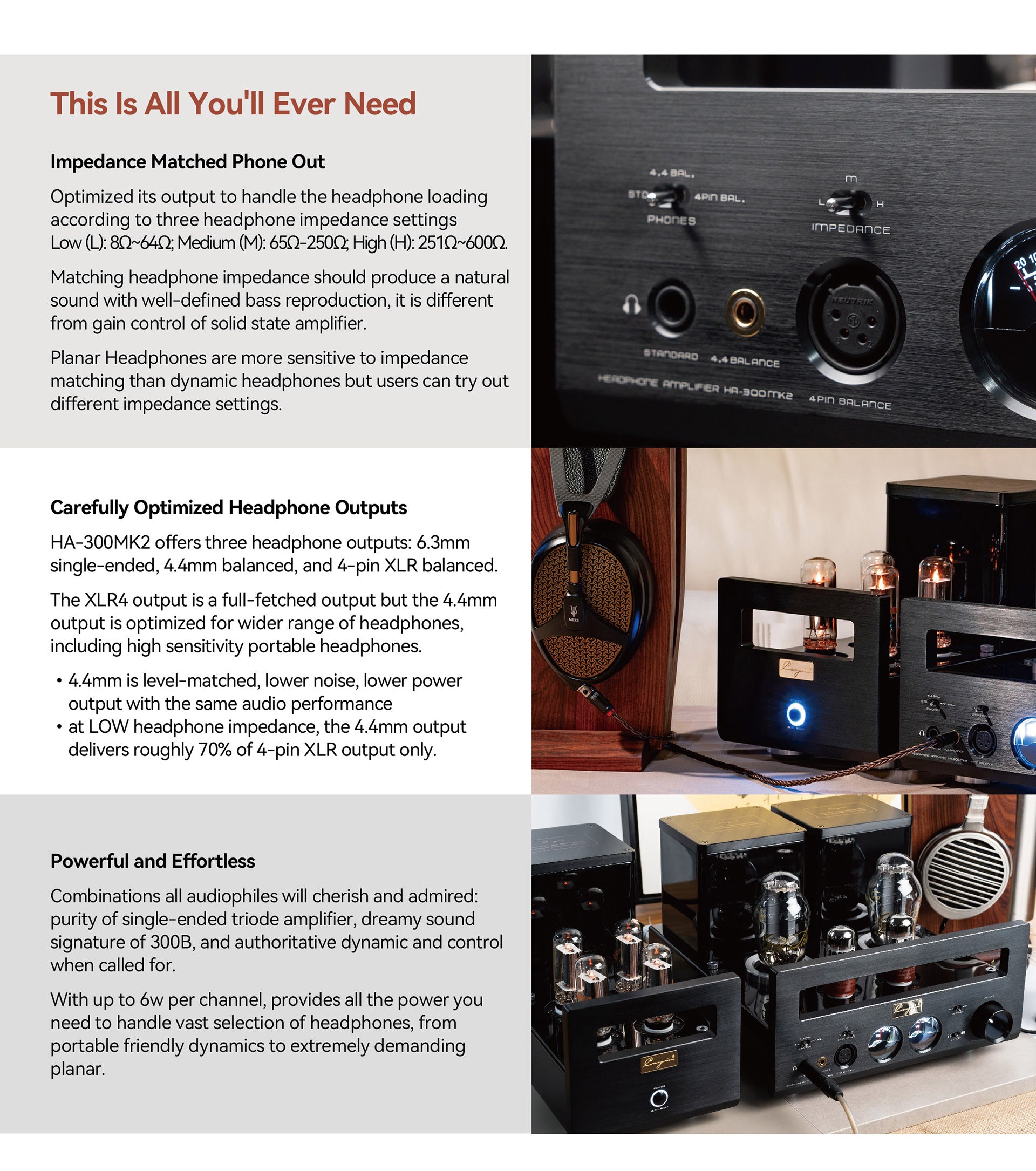

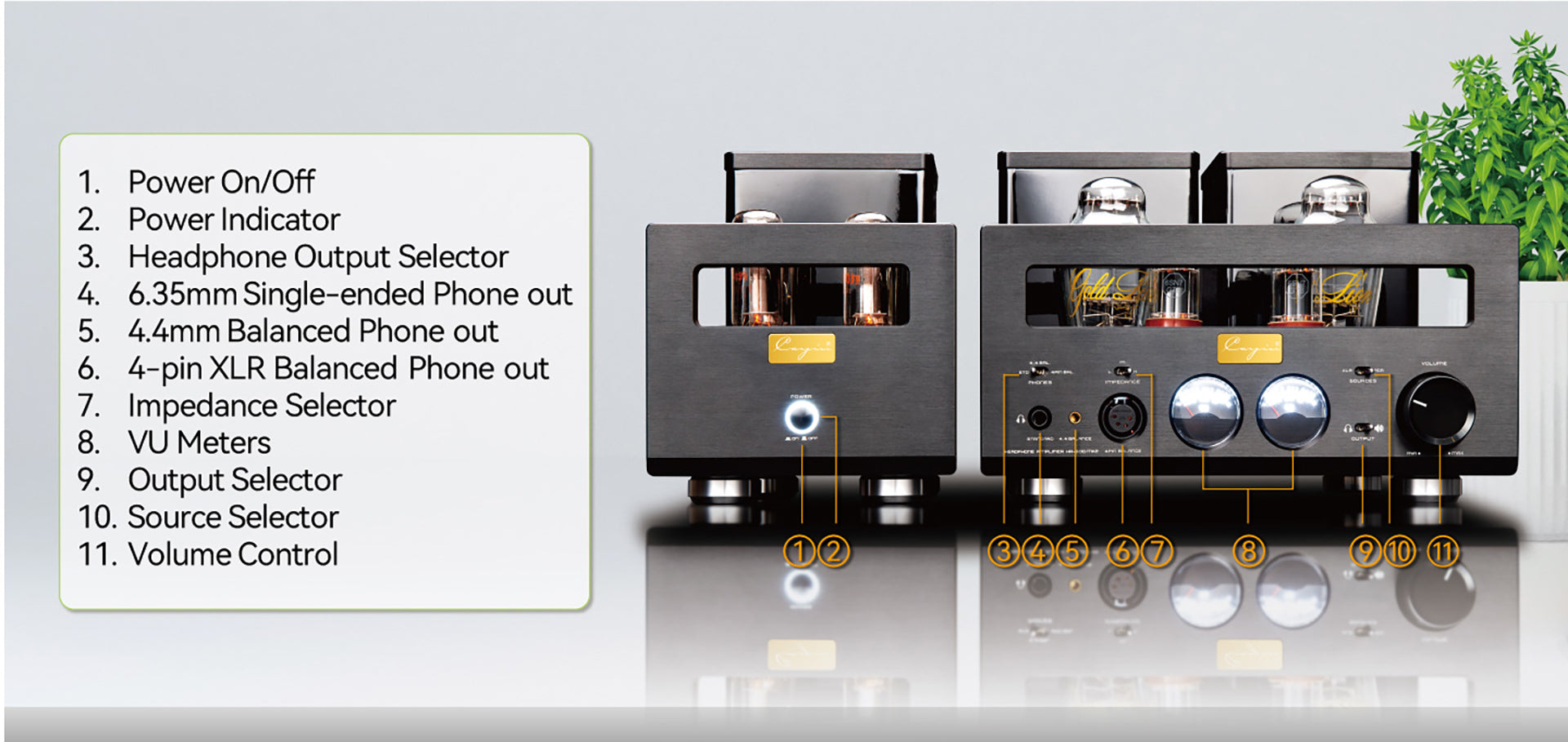

Choice of three impedance matched headphone outputs (L, M and H) to make sure HA-300MK2 can handle vast variety of headphones satisfactory.
Powerful headphone output, handle demanding headphones with ample headroom.

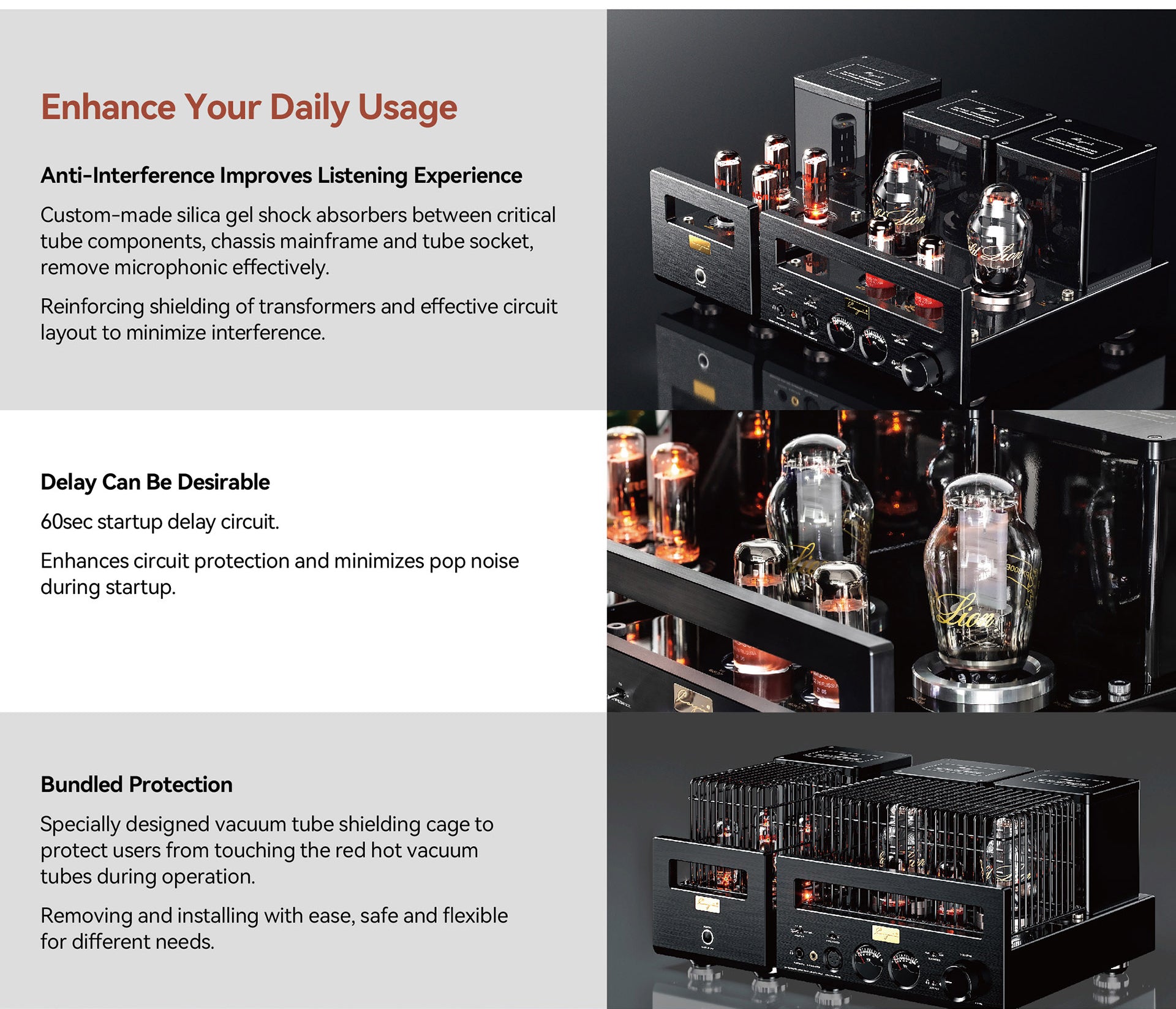

Custom make silica gel shock absorber as anti-shock buffer between critical tube components, chassis mainframe and tube socket, remove microphonic of 300B DHT effectively and provide quiet and realistic playback from sensitive headphones.
Minimize interference by reinforcing shielding of transformers, effective circuit layout and optimized circuit design
60sec startup delay circuit to enhance circuit protection and minimize pop noise when startup.
One set of speaker terminal as alternative output, can be used as an integrated speaker amplifier with 8 watt per channel Class A output.

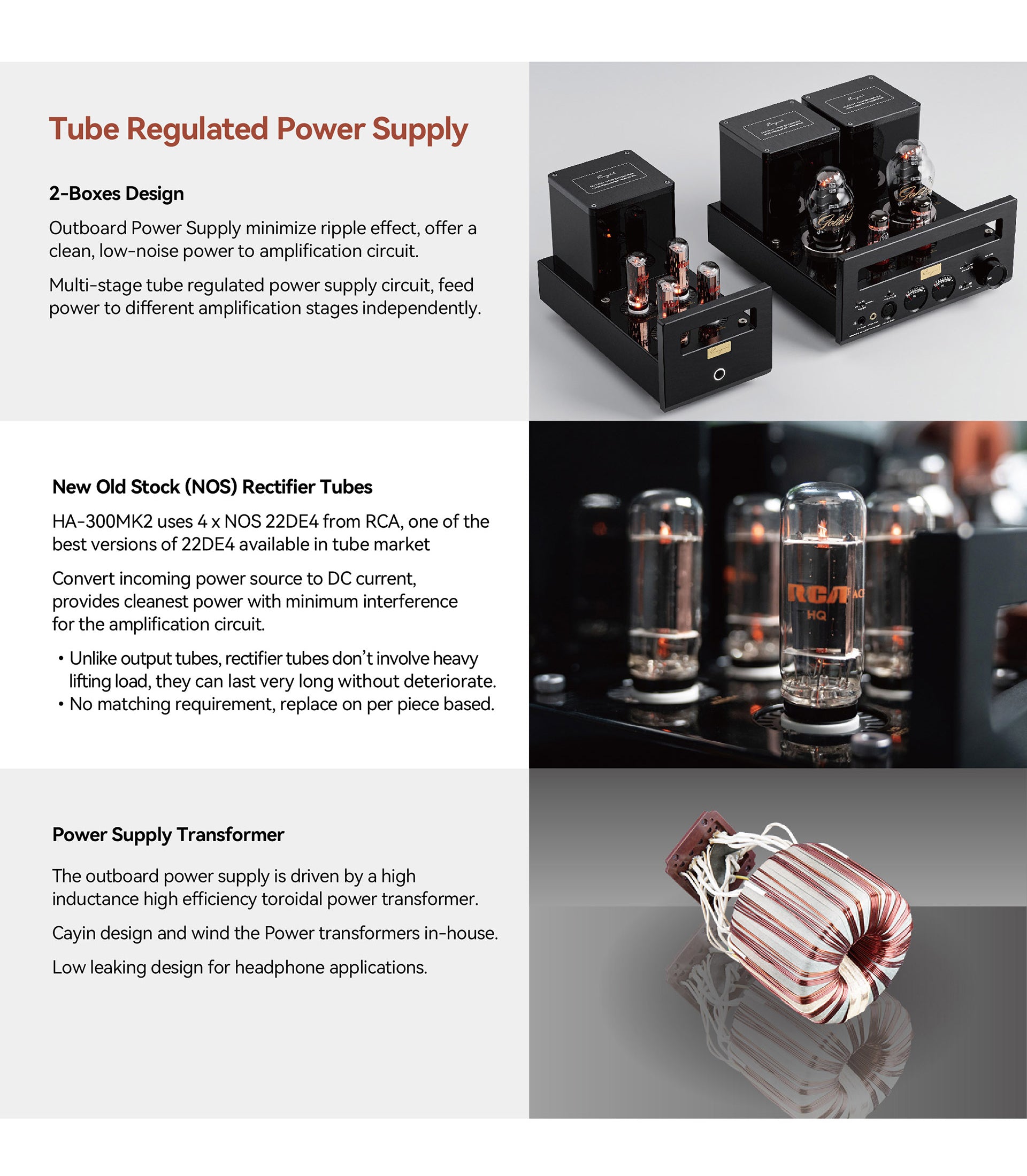

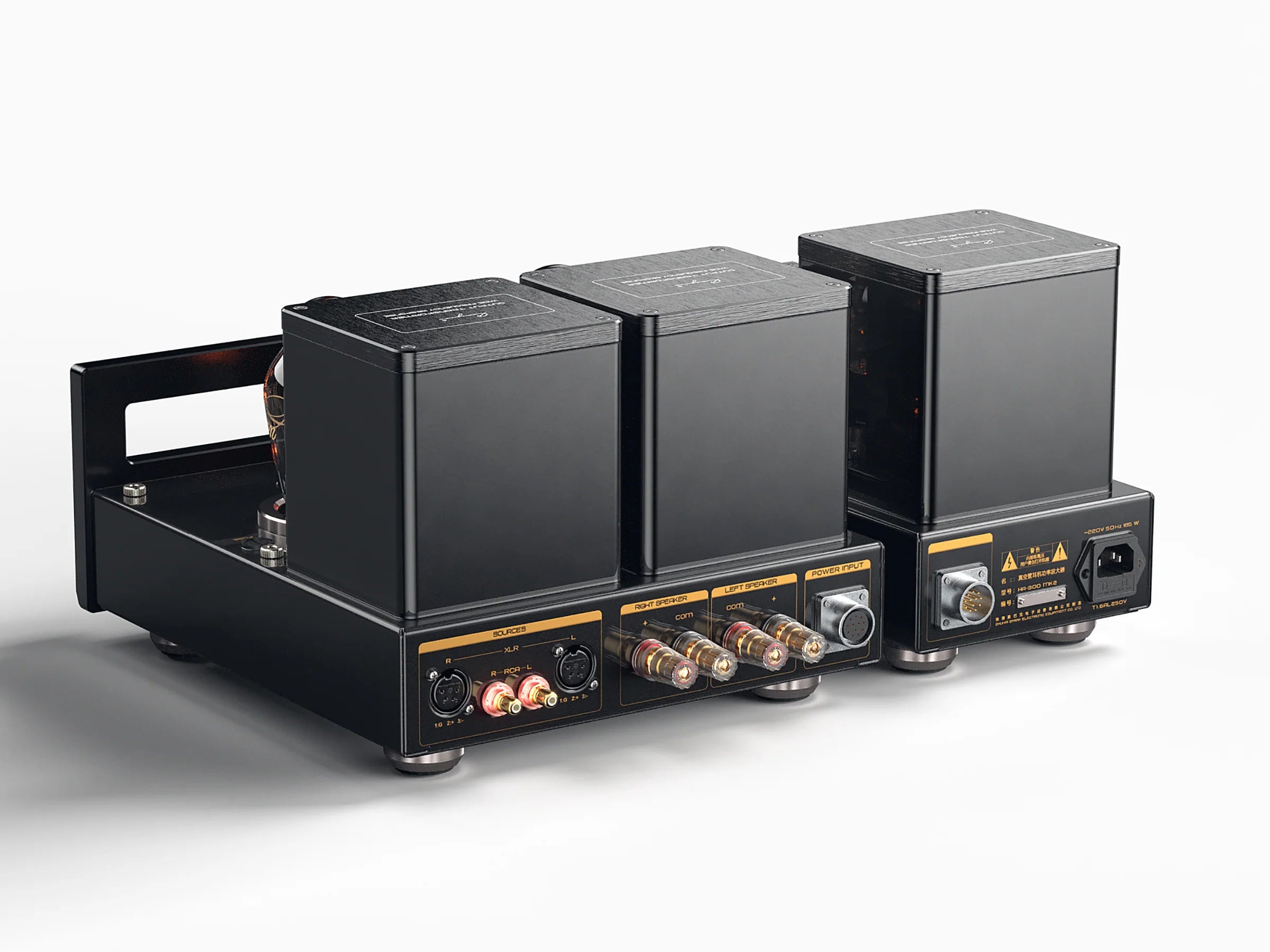

Outboard power supply provides pure and steady power for the amplification circuit with minimum interference.
Custom design in-house manufactured high quality toroidal power transformer and EI output transformers.
High voltage power rectification with set of four NOS RCA 22DE4 tubes.
Two-boxes design with multi-stage tube regulated power supply reduce interference to signal amplification effectively through independently regulated power supply for voltage amplification circuit. Optimize power provision to all circuit and enhance audio performance significantly.
Point-to-point Wielding to ensure shortest signal path and enhance the transparency and refinement of audio performance

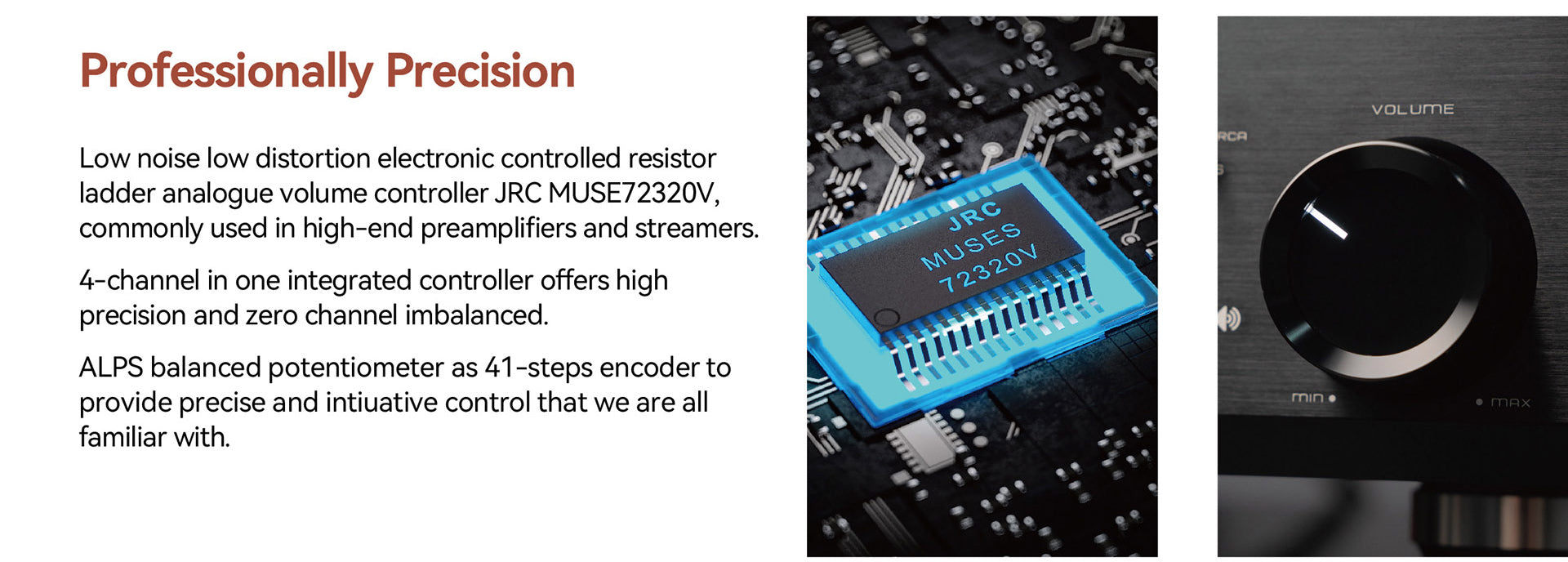

High-Precision JRC MUSES72320V electronic volume controller with 41-steps ALPS balanced potentiometer to provide low noise and accurate volume control.
Premium grade MultiCap coupling capacitor improves resolving capability and soundstage.
High quality shielded silver-plated cable for internal wiring, minimize interference during internal transmission.
Beautifully design and crafted VU meter

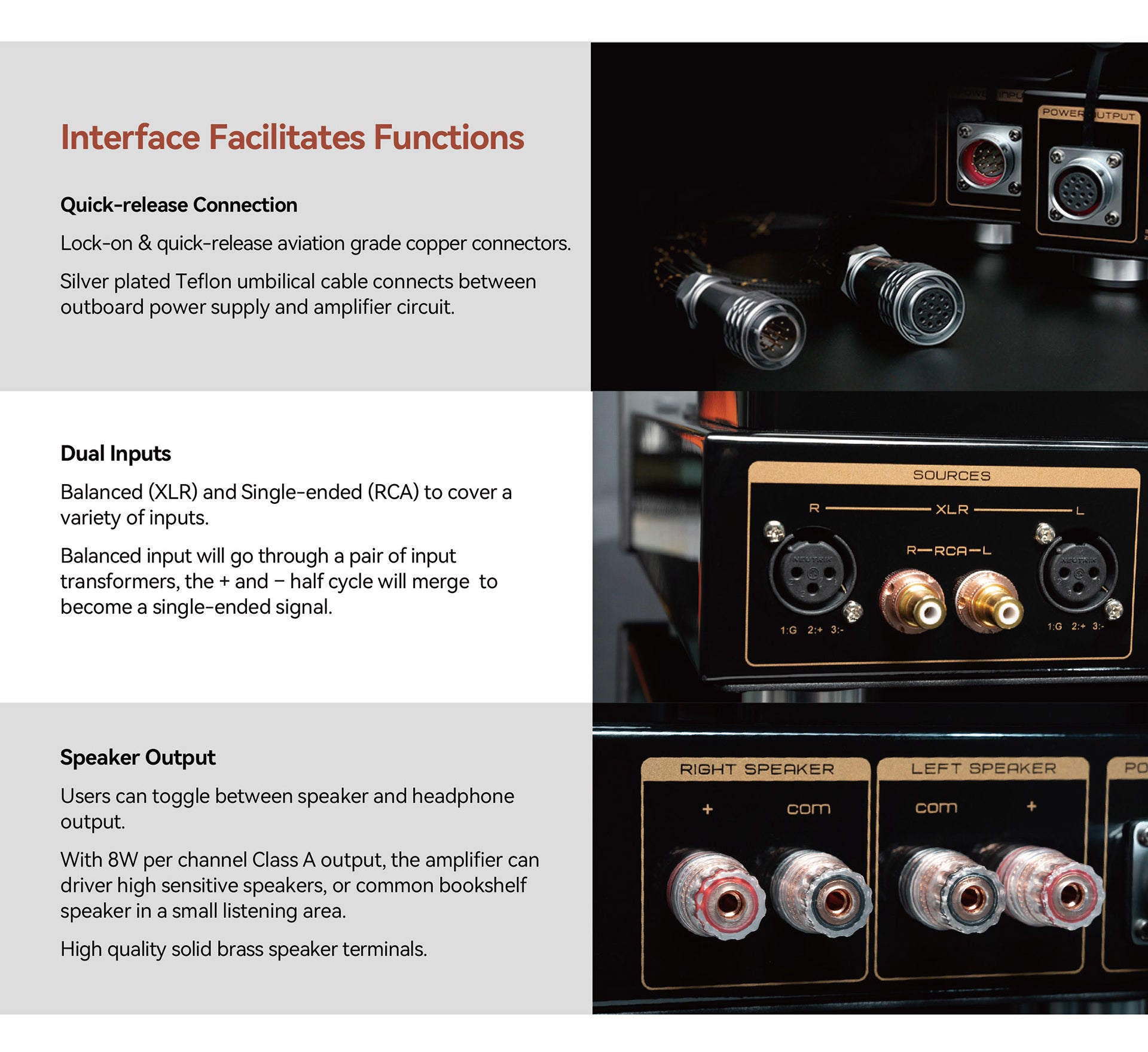

Lock On quick-release aviation grade copper connectors with silver plated Teflon umbilical cable for outboard power supply connection.
Detachable vacuum tube shielding cage, easy to detach and install.
