iFi NEO iDSD
Description

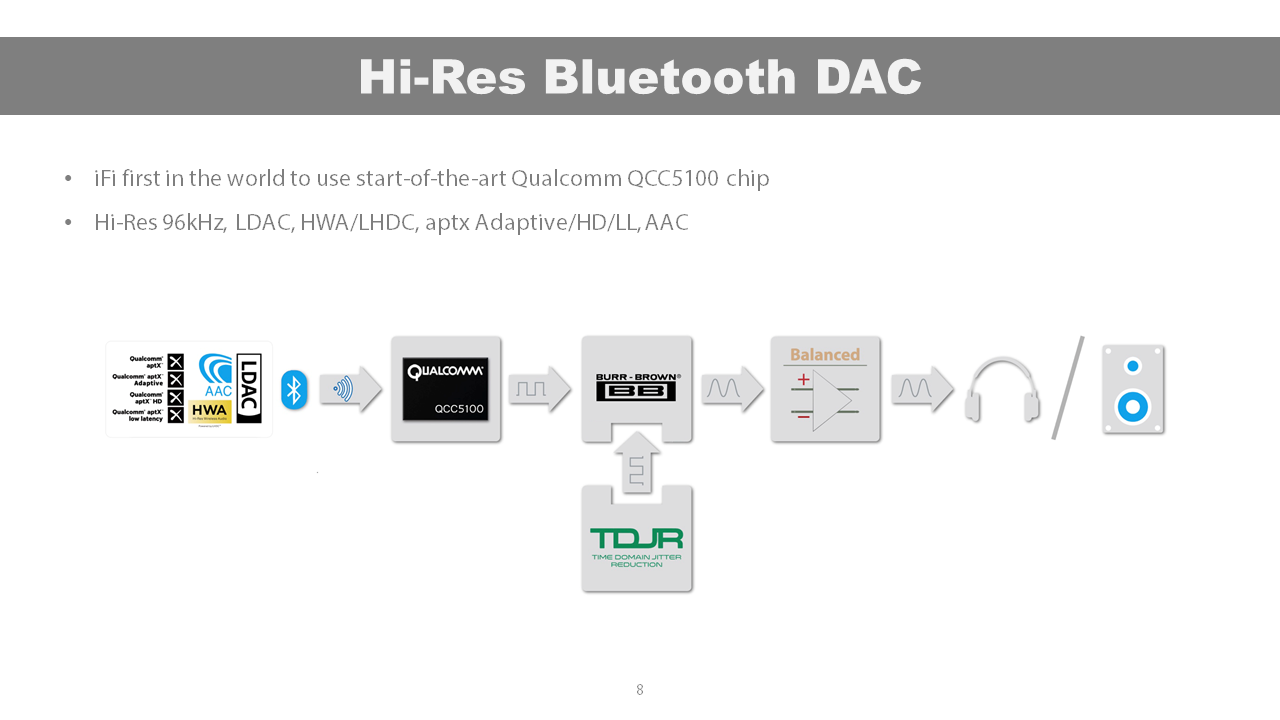

The NEO iDSD is the latest product released by iFi. The NEO is a less expensive alternative to the superb Pro iDSD DAC. It still uses Burr-Brown DAC chips and is now paired with the start-of-the-art Qualcomm QCC5100 chip. The NEO iDSD will give you the ability to play all formats of hi-res audio. It will decode up to PCM768kHz, native DSD512, MQA384kHz, and Bluetooth 96kHz.

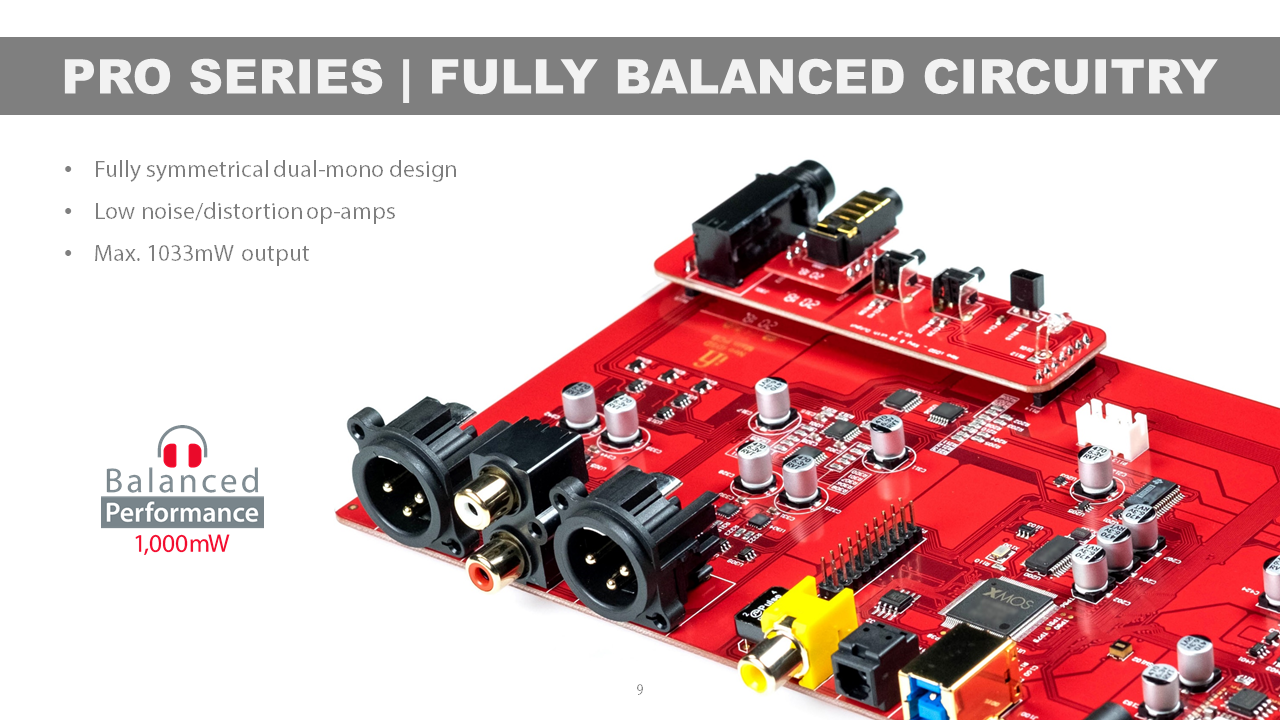

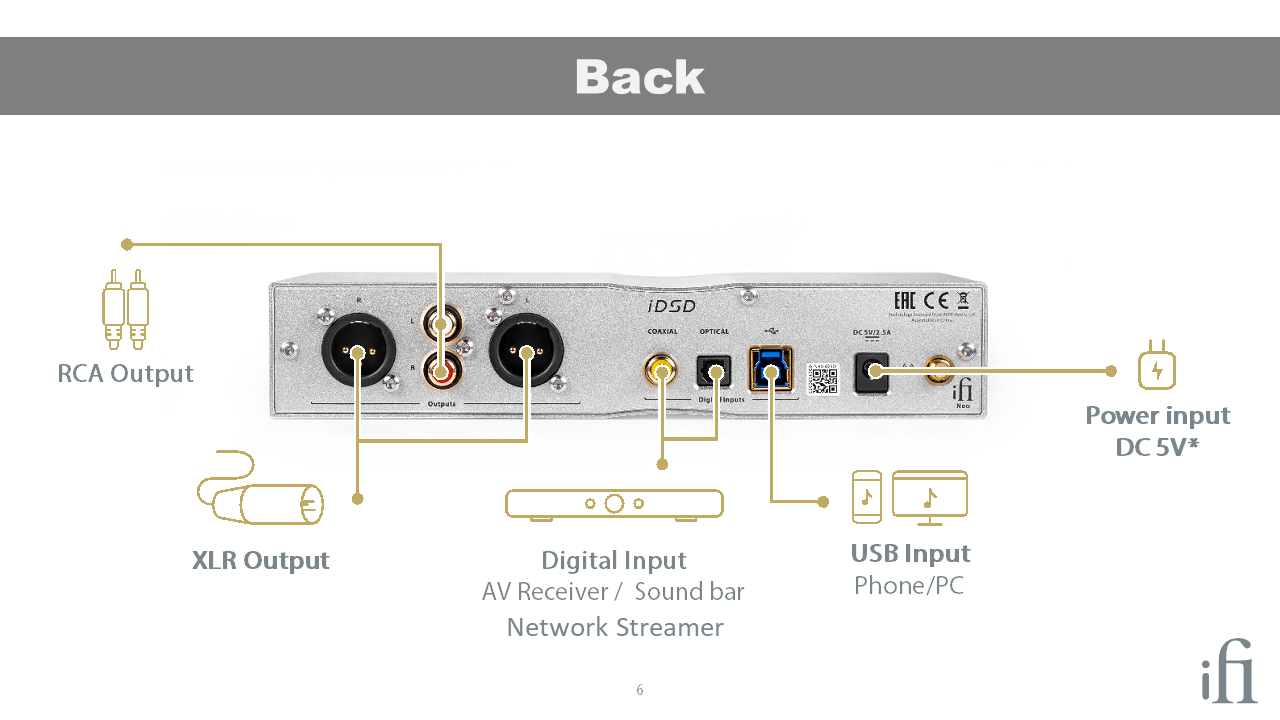

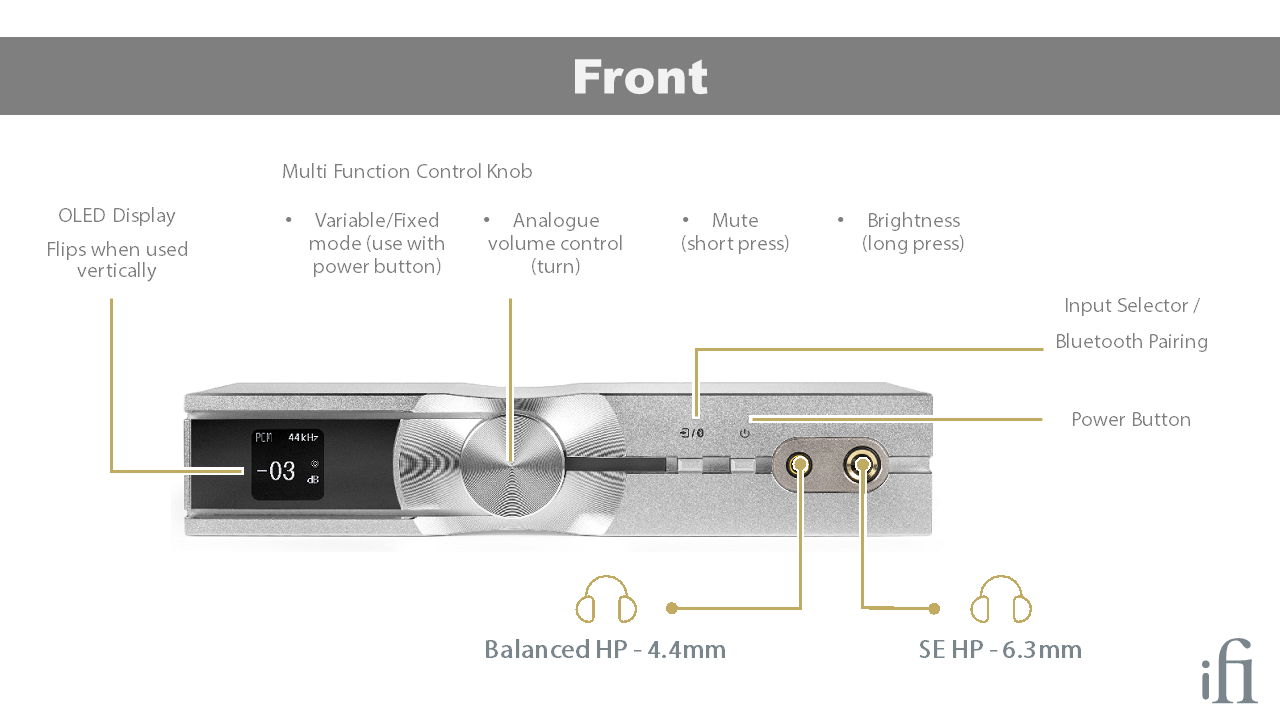

This unit will take USB input, as well as S/PDIF optical and coaxial. For outputs, it has a pair of balanced XLR, and a pair of unbalanced RCA. On the front of the unit is an unbalanced 1/4" headphone output as well as a 4.4mm balanced headphone output. The internal headphone amp will drive any headphone out there with ease.

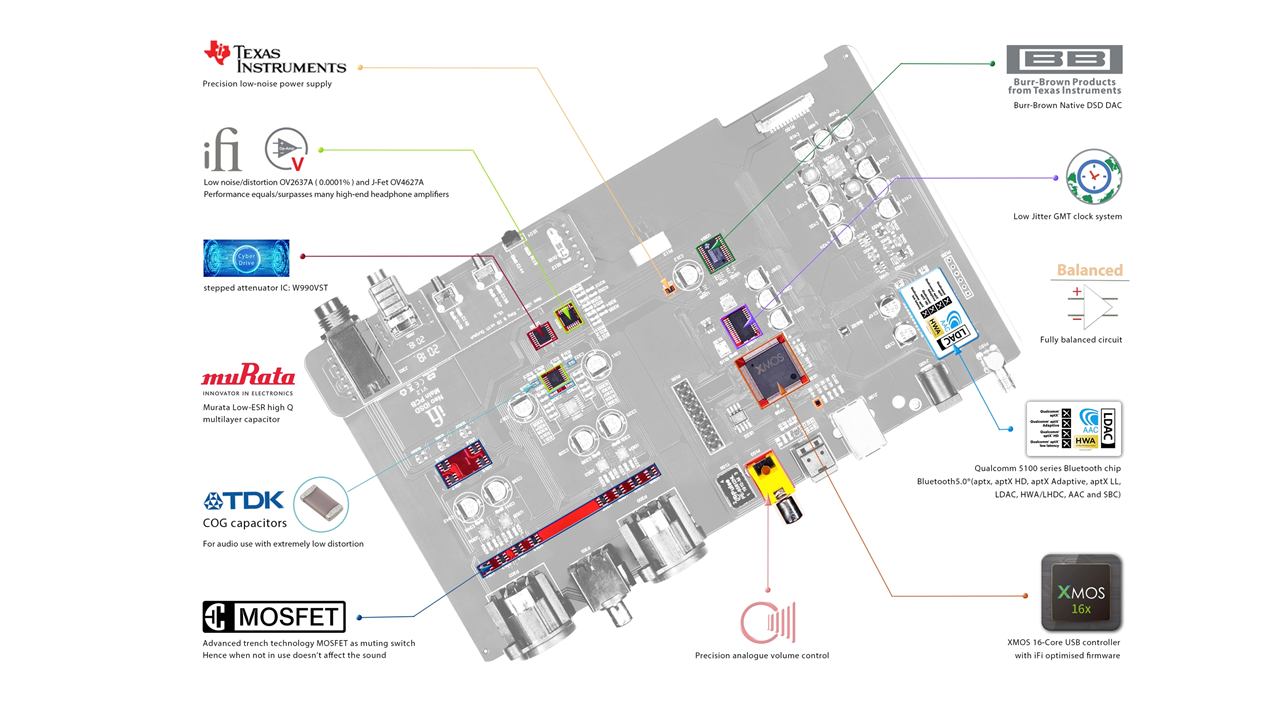

There is an insane amount of engineering that went into this product, if you want to learn about it all, please visit iFi's website: https://ifi-audio.com/products/neo-idsd/

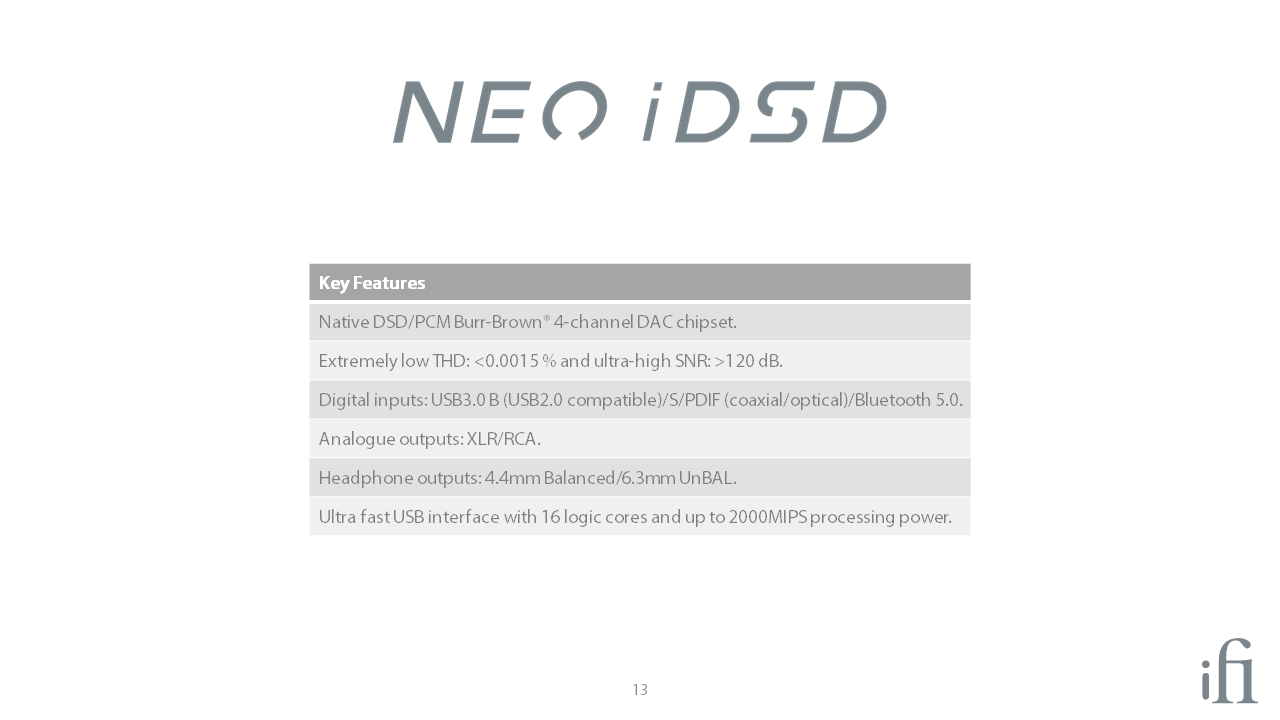

Specifications
|
Inputs |
||||
|
Digital |
USB3.0 B (USB2.0 compatible)/S-PDIF (coaxial/optical) |
|||
|
Bluetooth 5.0™ ( AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA Codec) |
||||
|
Formats |
DSD512/256/128/64, Octa/Quad/Double/Single-Speed DSD |
|||
|
DXD (768/705.6/384/352.8kHz), Double/Single-Speed DXD |
||||
|
PCM (768/705.6/384/352.8/192/176.4/96/88.2/48/44.1kHz) |
||||
|
MQA |
||||
|
Bluetooth 96kHz |
||||
|

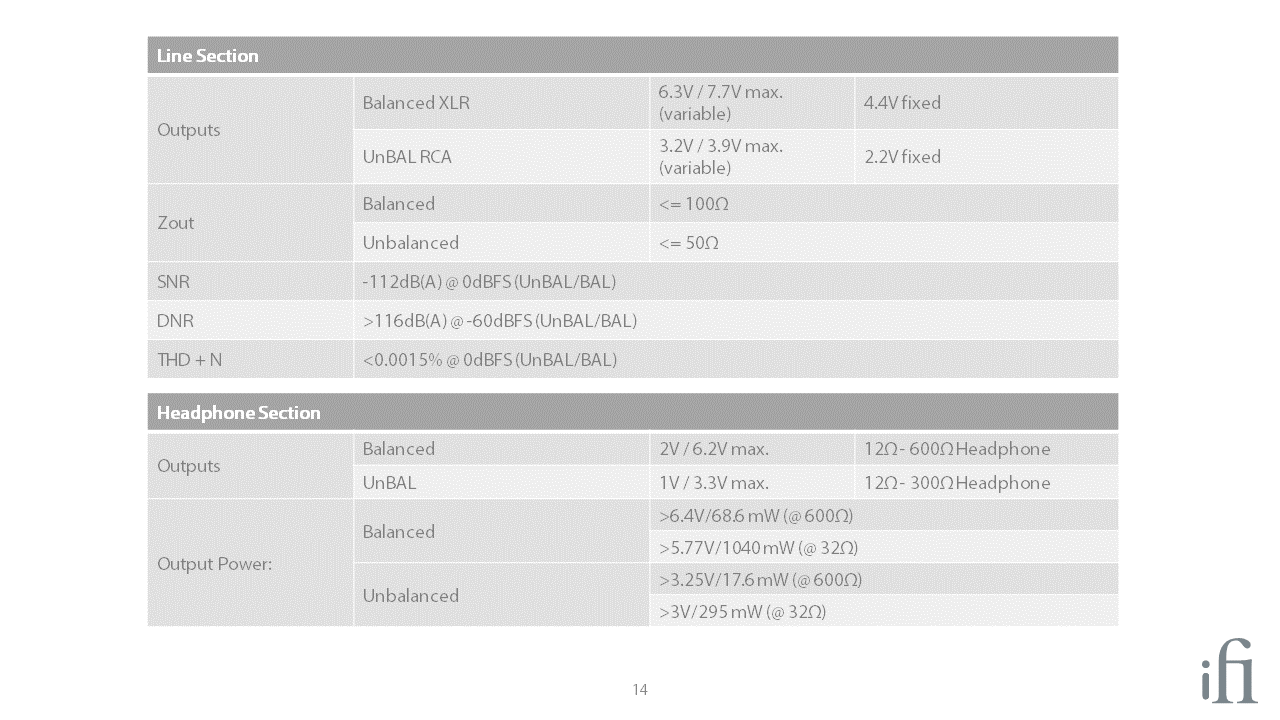

Outputs |
||||
|
Balanced XLR |
6.3V / 7.7V max. (variable) |
4.4V fixed |
||
|
UnBAL RCA |
3.2V / 3.9V max. (variable) |
2.2V fixed |
||
|
Zout |
||||
|
Balanced |
<= 100Ω |
|||
|
UnBAL |
<= 50Ω |
|||
|
SNR |
-112dB(A) @ 0dBFS (UnBAL/BAL) |
|||
|
DNR |
>116dB(A) @ -60dBFS (UnBAL/BAL) |
|||
|
THD + N |
<0.0015% @ 0dBFS (UnBAL/BAL) |
|||
|
Headphone Section |
||||
|
Output |
Balanced |
>6.4V/68.6 mW (@ 600Ω) |
||
|
>5.77V/1040 mW (@ 32Ω) |
||||
|
UnBAL |
>3.25V/17.6 mW (@ 600Ω) |
|||
|
>3V/295 mW (@ 32Ω) |
||||
|
Output Impedance |
<1Ω (UnBAL/BAL) |
|||
|
SNR |
-112dBA (3.3V UnBAL/6.2V BAL) |
|||
|
THD + N |
<0.0015% (125mW @ 32Ω) |
|||
|
Power consumption |
No Signal ~0.5W |
|||
|
Max Signal ~2.5W |
||||
|
Dynamic range |
-120dB(A) |
|||
|
Input voltage |
DC 5V/2.5A, AC 100 -240V, 50/60Hz (with iPower) |
|||
|
Dimensions |
214 x146 x 41 mm |
|||
|
8.4" x 5.7" x 1.6" |
||||
|
Weight |
970 g (2.14 Ibs) |
|||
|
Warranty period |
12 months |
|||
Videos
