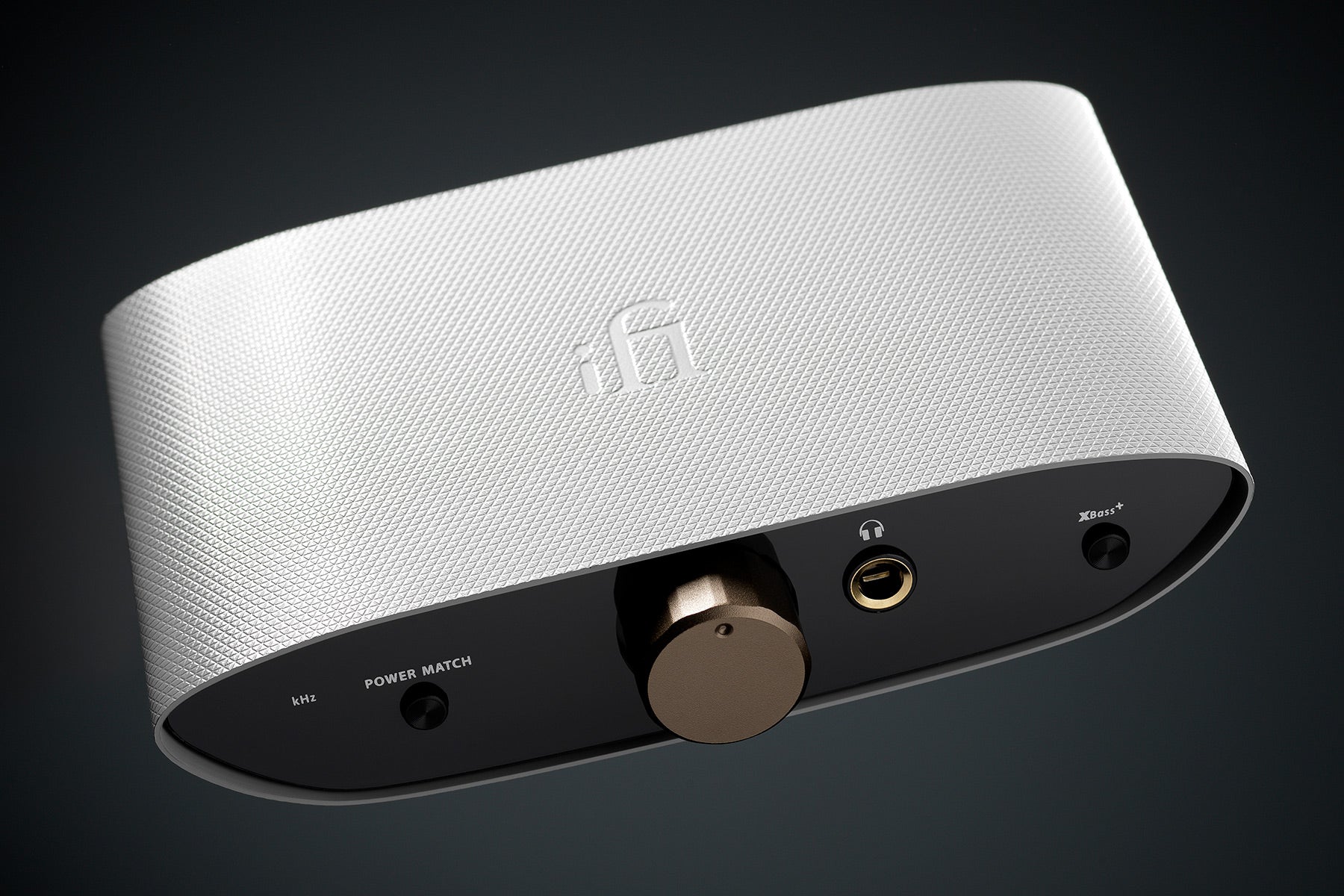

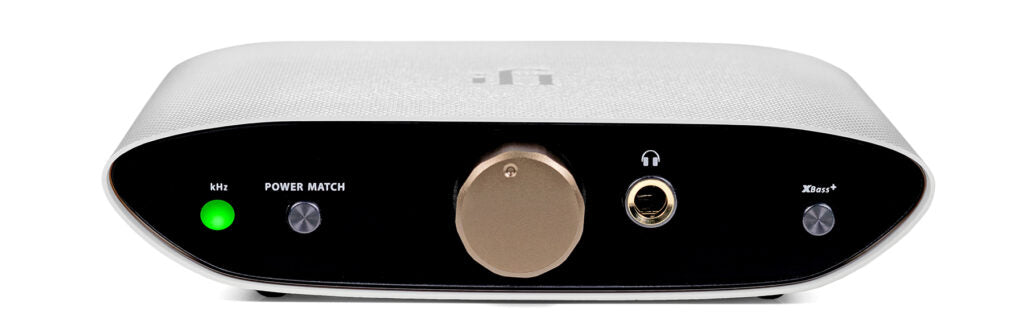

iFi Zen Air DAC

• Hi-res DAC (Digital-to-Analogue Converter) and headphone amp
• Elevates the sound quality of digital sources to a higher plane
• Use as a headphone amp, or as a pure DAC with an amp and speakers
• Connect to PCs, Macs, smartphones, tablets, games consoles and more via USB
• Supports 32-bit/384kHz PCM, fully native DSD256 and MQA
• Convenient desktop size, powered by USB or mains
• Powerful amp drives all headphones/earphones with ease

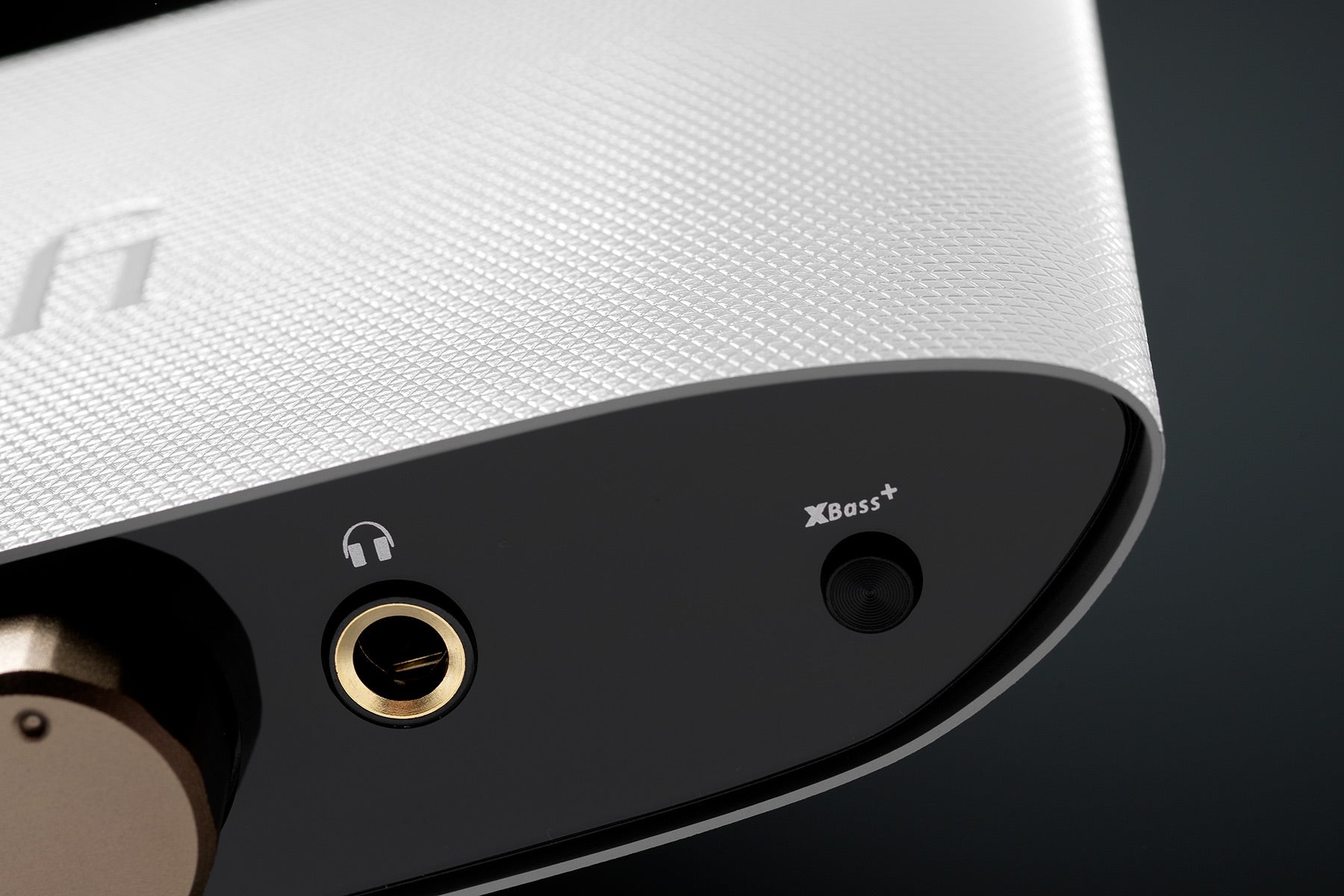

• PowerMatch and XBass controls – adjust to suit your headphones
• High-performance circuitry delivers smooth, detailed and dynamic sound

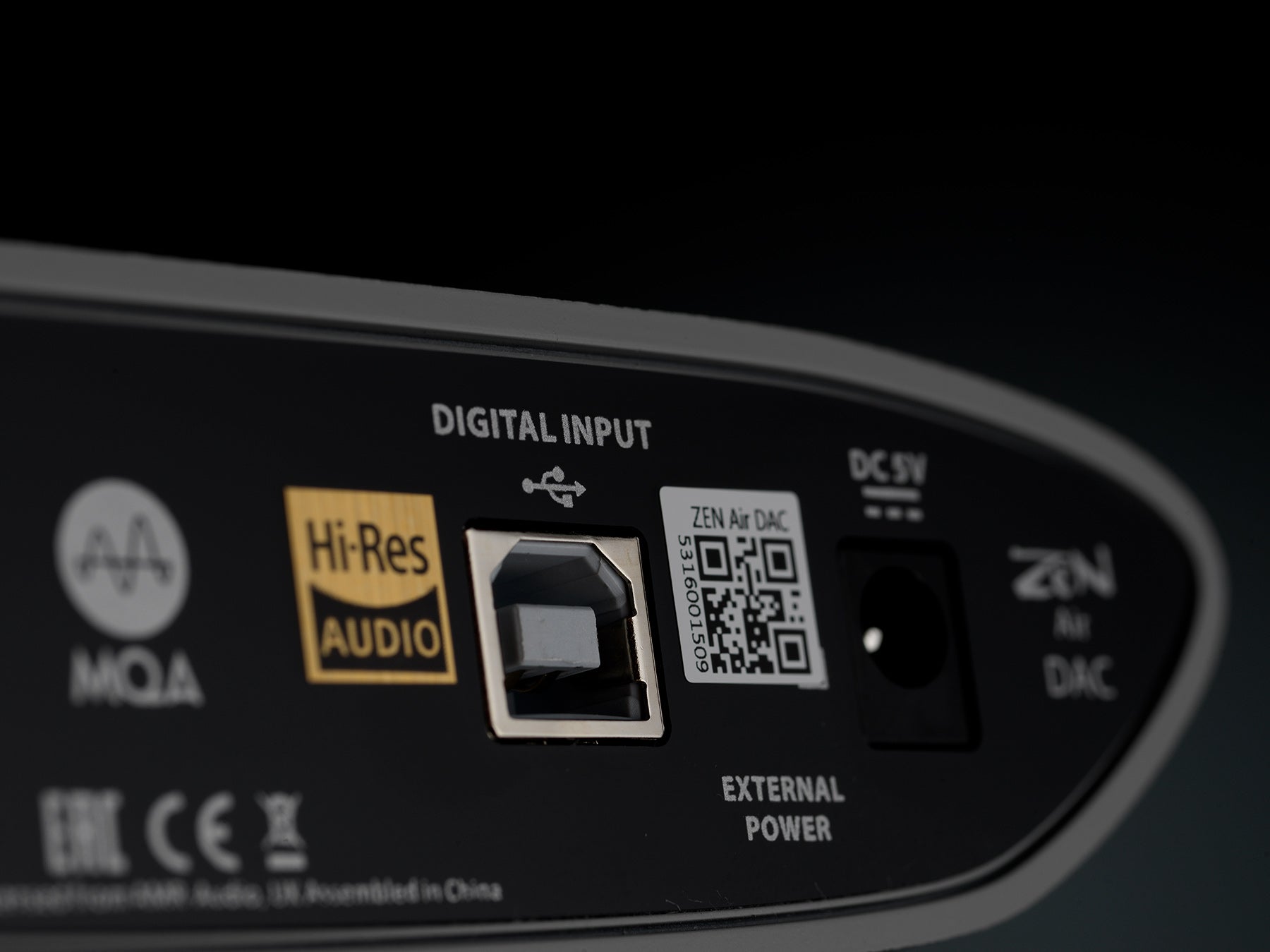

Input voltage DC 5V/2.5A
Input USB2.0 B Socket
Formats 44.1/48/88.2/96/176.4/192/352.8/384kHz PCM
2.8/3.1/5.6/6.2/11.2/12.4MHz DSD
353/384KHz DXD
MQA
DAC Bit-Perfect DSD & DXD DAC by Burr Brown
Power consumption No Signal ~0.5W / Max Signal ~2.5W
Dimensions 158 x 117 x 35 mm
6.2" x 4.6" x 1.4"
Net weight 315 g
0.694 lbs

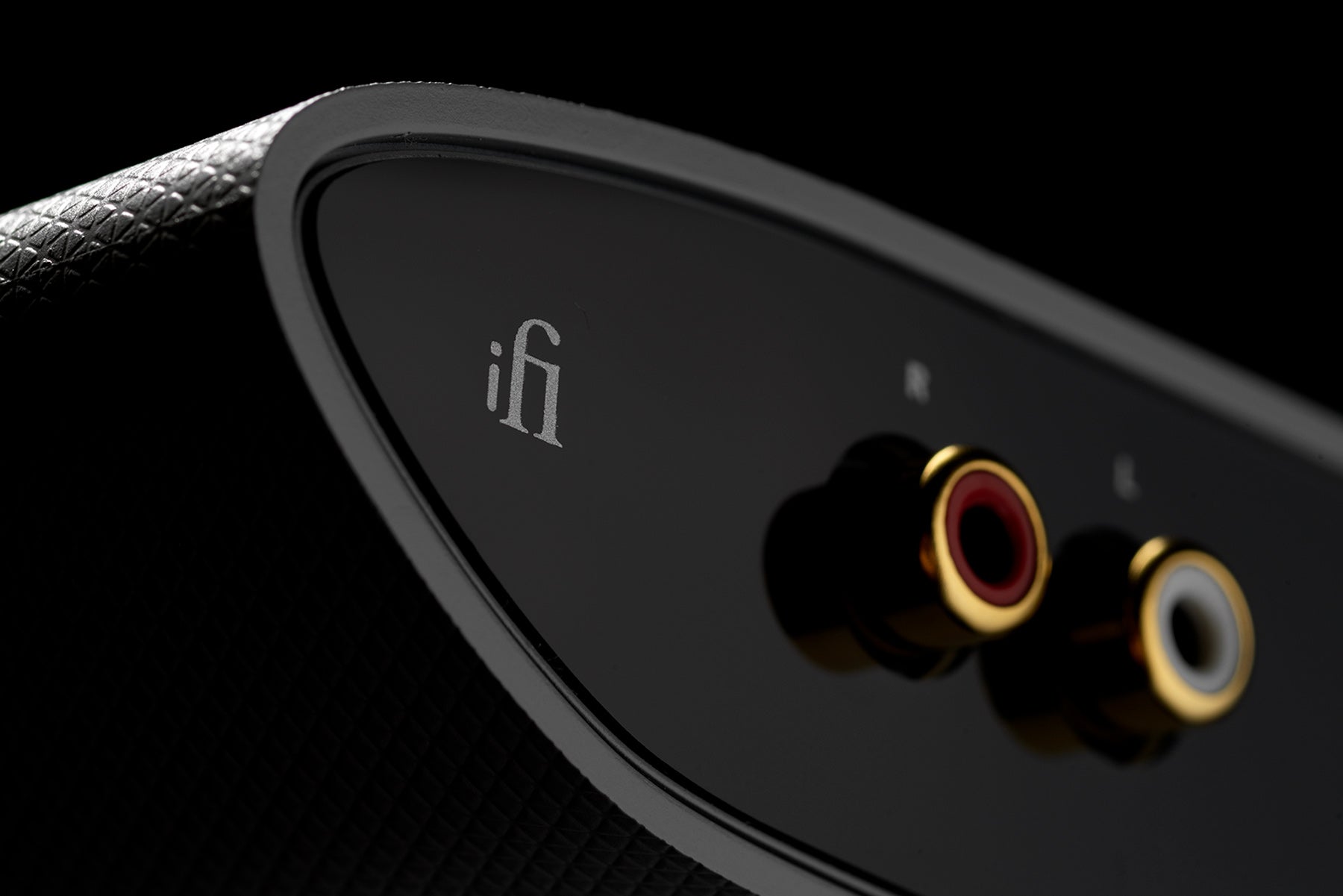

Line Section
Output 1V / 3.3V max.
Output Impedance ≤50Ω
SNR <-113dB(A) @ 0dBFS
DNR >113dB(A) @ -60dBFS
THD+N <0.04% @ 0dBFS
Headphone Section
Output 1V / 3.3V max. (variable)
Output Power >230mW @ 32Ω ; >36mW @ 300Ω
Output Impedance <1Ω
THD+N <0.04% (100mW @ 16Ω)
SNR >113dBA (3.3V)
